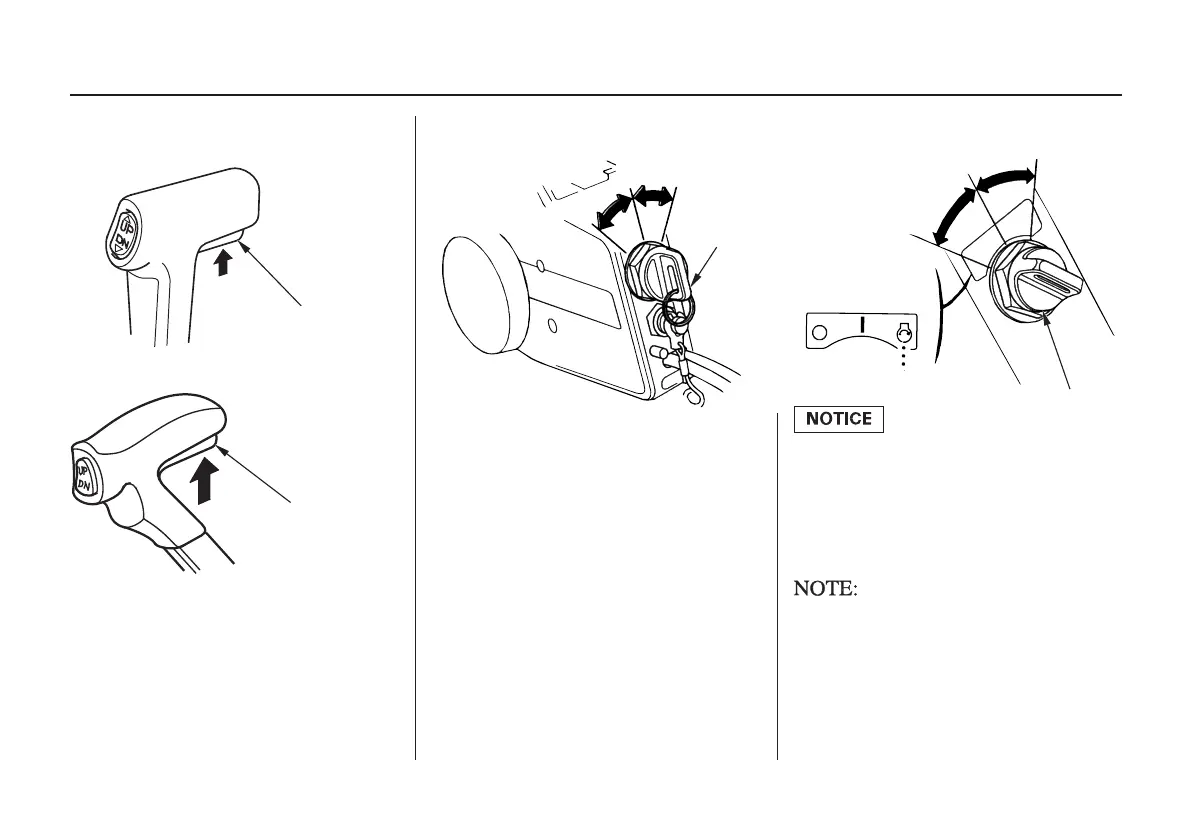

CONTROLS (R type)
Neutral Release Lever Engine Switch
Donotleavetheengineswitch
(ignition switch) ON (key in ON
position) when the engine is not
running as the battery will
discharge.
(R1 type)
(R2 type)
(R1 type)
(R2, R3 type)
OFF
ON START
OFF
ON
START
OFF
ON
START
NEUTRAL RELEASE
LEVER
ENGINE
SWITCH
KEY
NEUTRAL RELEASE
LEVER
ENGINE SWITCH KEY
The remote control lever does not
operate unless it is moved while
pulling the neutral release lever up.
The neutral release lever is set on the
remote control lever to prevent an
accidental operation of the remote
control lever.
to stop the engine
(IGNITION OFF).
to run the engine after
starting.
to start the engine.
OFF:
ON:
START:
Key positions:
This remote control is equipped with
an automotive type ignition switch.
On the side-mount type (R1 type),
the engine switch locates on your
side near the remote control box.
The starter motor will not work
unless the remote control lever is in
the NEUTRAL position.
On the panel-mount type (R2 type)
and the top-mount type (R3 type), the
engine switch locates at the center of
the switch panel.
