29
CONTROLS (T type)
Power Trim/Tilt Switch
Power Trim
Excessive trim/tilt angle during
operation can cause the propeller
to raise out of the water and cause
propeller ventilation and engine
over-revving. Excessive trim/tilt
angle can also damage the water
pump.

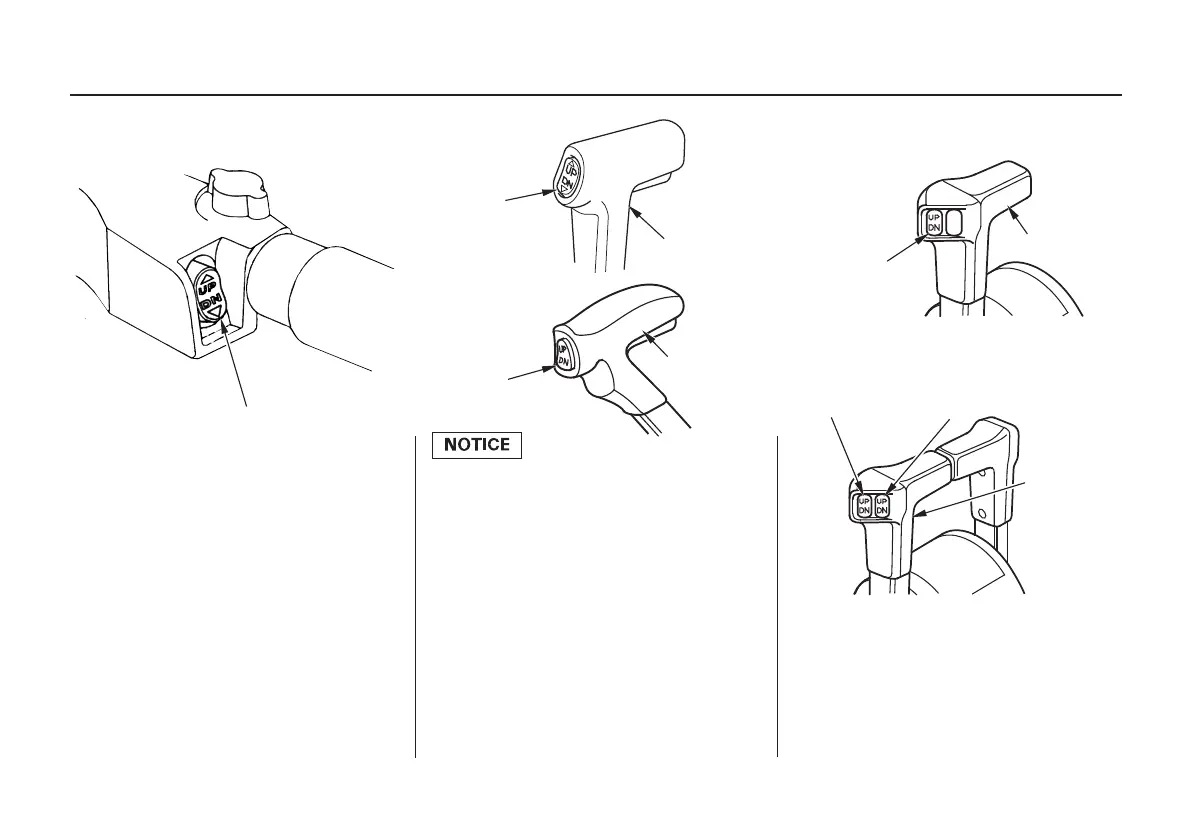

(R1 type)
(SINGLE TYPE)(H type)
(R3 type)
(DUAL TYPE)
(R2 type)
POWER TRIM/TILT SWITCH
POWER
TRIM/TILT
SWITCH
POWER
TRIM/TILT
SWITCH
REMOTE
CONTROL
LEVER
REMOTE
CONTROL
LEVER
REMOTE
CONTROL
LEVER
POWER TRIM/TILT SWITCH
POWER TRIM/
TILT SWITCH
REMOTE
CONTROL
LEVER
(LEFT) (RIGHT)
By using the power trim/tilt switch
the operator can change the trim
angle of the motor to achieve
maximum boat acceleration, speed,
stability and maintain optimum fuel
consumption.
Press the power trim/tilt switch on
the tiller handle or remote control
lever to adjust the motor trim angle
of 0° to 20° to maintain proper boat
trim. The power trim/tilt switch can
be operated while the boat is under
way or while stopped.
The right and left outboard motors,
when they are mounted on a boat,
can be adjusted separately with the
switch on the control lever side.
05/10/26 09:48:37 3CZW0612_029
