Honda BF75A - Trim Meter (Equipped Type); Power Tilt Switch (Motor Pan)

30
CONTROLS (T type)

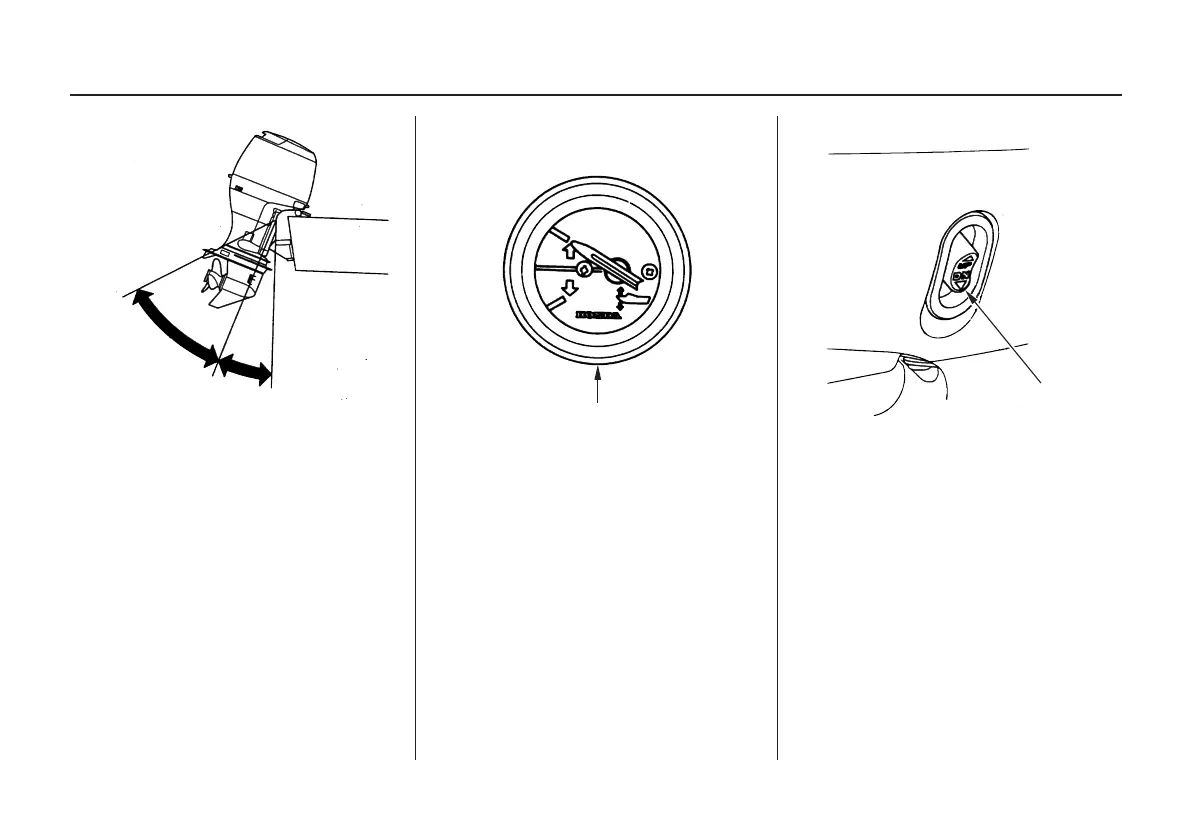

Trim Meter Power Tilt Switch (motor pan)
Power Tilt
(equipped type)
TILT ANGLE
TRIM ANGLE
20°
72°
0°
TRIM METER
POWER TILT
SWITCH
Press the power trim/tilt switch to
adjust the motor tilt angle of 20° to
72°.
The trim meter has a range of 0° to
20° and indicates the trim angle of
the outboard motor. Refer to the trim
meter when using the power trim/tilt
switch to achieve proper boat
performance.
The power tilt switch located on the
motor pan is a convenience switch
for tilting the motor for trailering, or
preforming outboard maintenance.
This power tilt switch should only be
operated with the boat being stopped
and motor off.
By using the power trim/tilt switch
the operator can change the tilt angle
of the motor for shallow water
operation, beaching, launching from
a trailer, or mooring.
