Be sure to perform the gearshift
operation at a low engine speed.
Shifting the gear at a high
engine speed will damage the
drive system. Be sure that the
gear was shifted securely, then
operate the throttle grip to raise
the engine speed.
77
Gear Shifting (H type)
OPERATION (H type)
F (FORWARD)
R (REVERSE)
N (NEUTRAL)
THROTTLE GRIP
SLOW
REVERSE
FORWARD
NEUTRAL
SHIFT LEVER
Align the pointer on the tiller
handle with the SLOW position on
the throttle grip to decrease engine
speed.
The throttle mechanism is designed
to limit throttle opening in
REVERSE and NEUTRAL. Do not
turn the throttle grip with force in the
FAST direction. The throttle can be
opened to FAST only in FORWARD
gear.

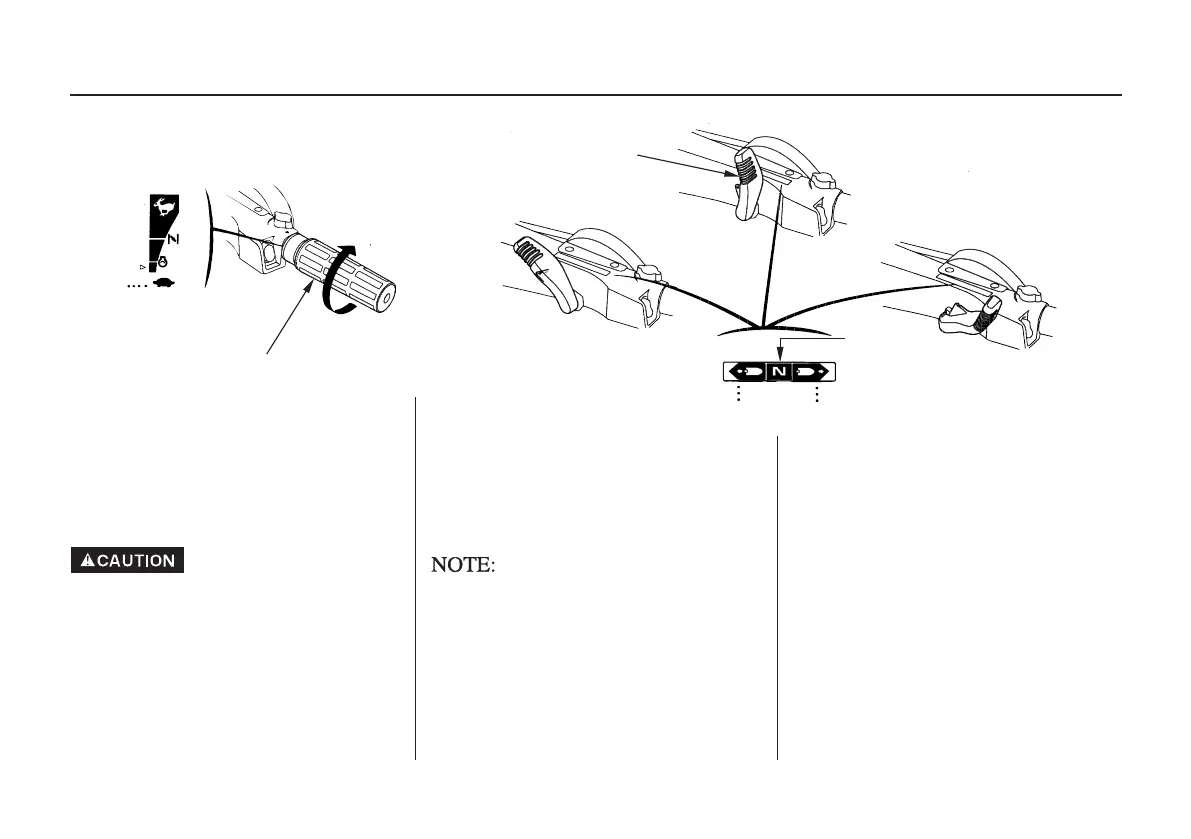

The gearshift lever has 3 positions:
FORWARD, NEUTRAL, and
REVERSE.
An indicator at the base of the shift
lever aligns with the icon attached at
the tiller handle.
Move the shift lever to engage the
desired gear.
1. 2.
