To prevent damage to the motor or
boat, make sure the adjusting rod
is locked.

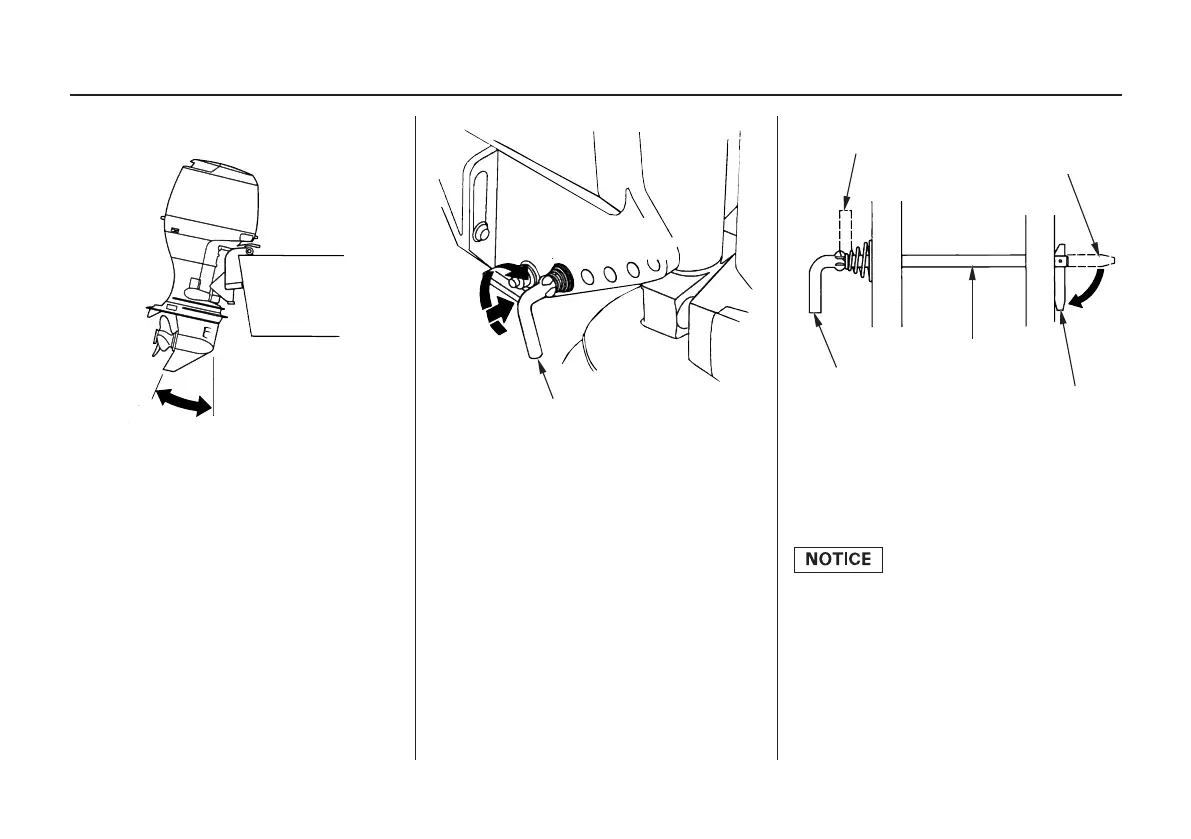

Motor Angle Adjustment
INSTALLATION
TO LOCK
TO CHANGE
UNLOCKED
POSITION
ADJUSTING ROD
LOCKED POSITION
BENT END UP
PUSH
TRANSOM ANGLE ADJUSTING ROD
There are five adjusting stages.
Tilt the motor to the designated tilt
angle.
Inserting the rod in the proper hole,
twist it down to lock.
After locking, pull the adjusting
rod and be sure it is not withdrawn.
Push in the adjusting rod, twist
upwards and pull out to remove.
1.
2. 3.
(see pages 86 93).
