LS10143-001SK-E Emergency Communication System Operation
11-12
green Select Key LED will indicate that a message is currently programmed in the corresponding slot. When
there is no message recorded (or the message is erased), the associated green Select Key LED will be off. While
recording a particular message, the associated red Select Key LED will turn on until recording is completed. The
Select Key 1-15 will be used to playback a recorded message or to select the message slot to record to or erase.
When in the Local Record mode, the ECS-VCM or ECS-NVCM LEDs will function as follows:
11.8.1 Recording Messages 1-15 Using Aux Audio Input
Recording messages from the Aux Audio Input enables you to load customized, pre-recorded messages into an
ECS message location.
Follow these steps to record a user message using Aux Audio Input:
Note: Refer to section 9 for detailed programming information.
1. Wire a speaker cable with 1/8” mini plug to the Aux AUDIO GND and IN terminals. Refer to Figure 11-5.

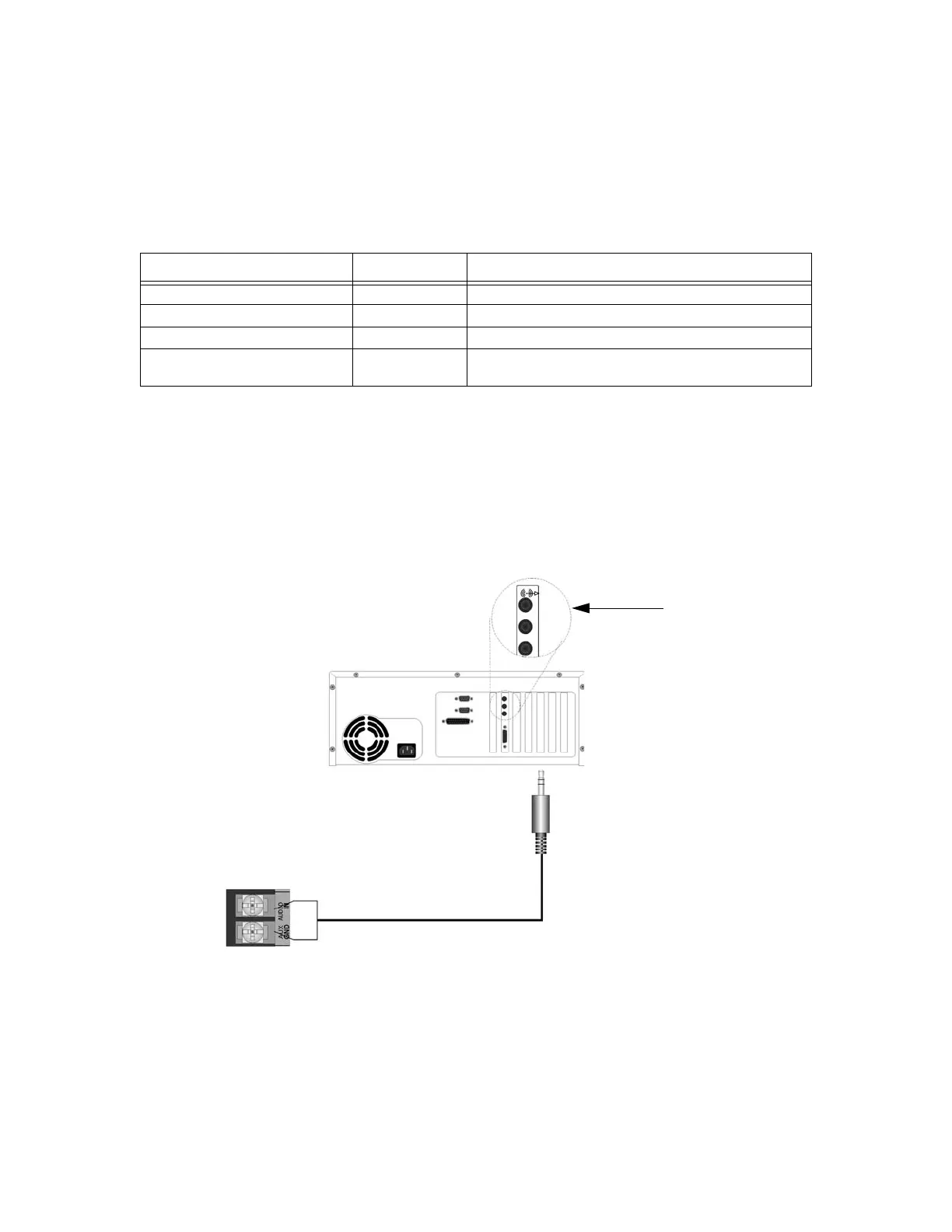

Figure 11-5 Aux Audio Connection for Recording
2. Plug the mini plug into the Line Out/Headphone jack on a PC or laptop. See Figure 11-5.
3. Enter programming mode at main control panel.
4. Select 8 for Voice Options.
5. Select 1 for VCM Maintenance.
6. Select 2 Local Recording.
Table 11-1: LED Functions During Programming
LED LED State Meaning
Select Key 1-15 Green LED On Message is currently programmed in this slot
Select Key 1-15 Red LED On Message recording is in progress
Select Key 1-15 Green/Red LED Off/Off Message slot is empty
Select Key 1-15 Red LED Flashing Message is being played back or message is selected for
recording
