5.4.2.1 Unshielded Twisted Pair Wiring between Multiple Panels

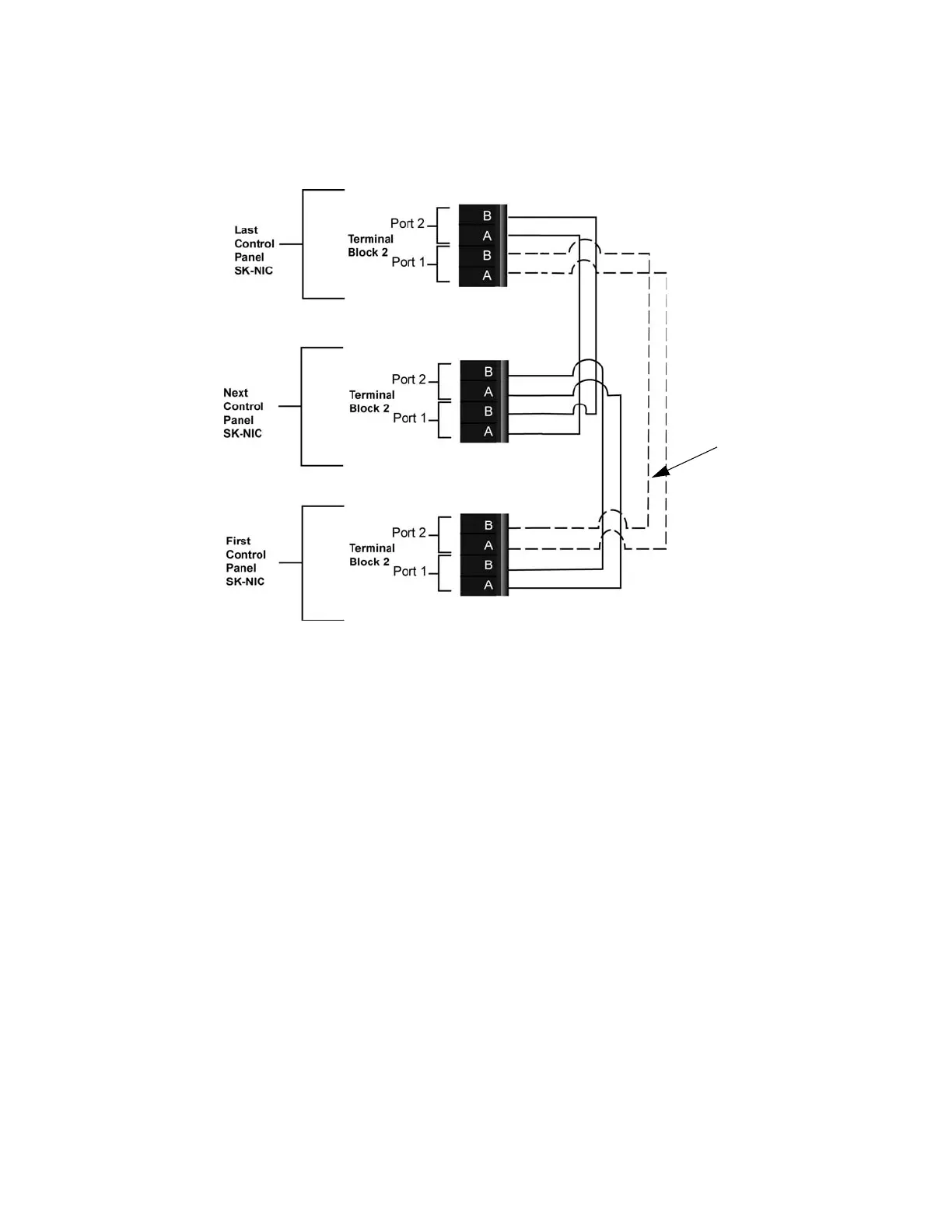

Unshielded twisted pair wiring between multiple panels is shown in Figure 5-7. Class A wiring is shown with a

dotted line.

Figure 5-7 Twisted Pair Wiring Configuration

Class A

wiring
