4.6.1.1 Flush Mounting
This section of the manual describes flush mounting. You can flush-mount with or without an electrical box.
Flush Mounting with an Electrical Box
The RA-1000 annunciator can be used with the following types of electrical boxes: 4S, single-gang, and double-
gang. If an electrical box is used, the box must be 1-3/8” back from the face of the wall to accommodate the
annunciator. Studs used with an electrical box must be two by fours (or larger).

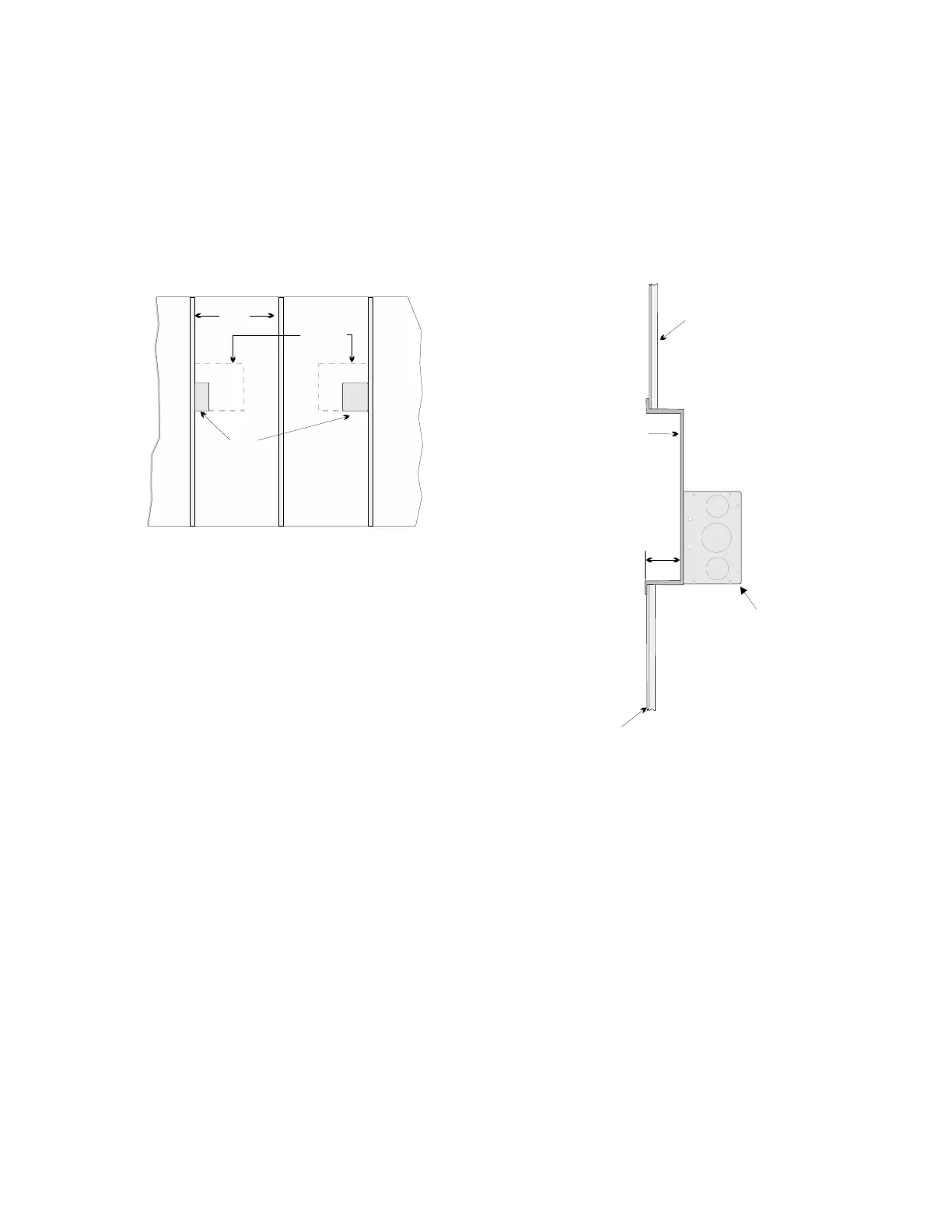

Figure 4-21 Placement of Electrical Box for Flush Mounting
Flush Mounting Steps
1. Cut a hole in the sheet rock to the following dimensions: 8-1/4” w x 6-5/8” h. If an electrical box is used, the
box must be 1-3/8” back from face of wall to accommodate the annunciator (see Figure 4-21).
2. Remove knockout holes as needed for wires.
3. Fit the annunciator backbox into the hole and stabilize with mounting wires. Angle the mounting wires into
the first hole past the sheet rock. Secure the wires behind the screws as shown in Figure 4-22. When all four
wires are in place, the backbox should fit snugly into the hole in the sheet rock.
Sheet rock
Sheet rock
Electrical Box
Annunciator
back box
When flush-mounting using an
electrical box, the box must be
1-3/8" from face of wall.
Electrical box applications require
2 by 4 construction minimum.
studs
electrical
box
annunciator
back box
(outline)
wall
Examples of Electrical Box Use Electrical Box Placement
To Next Page
