Model IFP-2100/ECS Installation Manual LS10143-001SK-E
4-11
1. The backbox dimensions are 9 1/4” W x 8 3/8” H. The backbox can be mounted prior to the complete instal-
lation of the RA-2000 using any of the mounting holes shown in Figure 4-12.

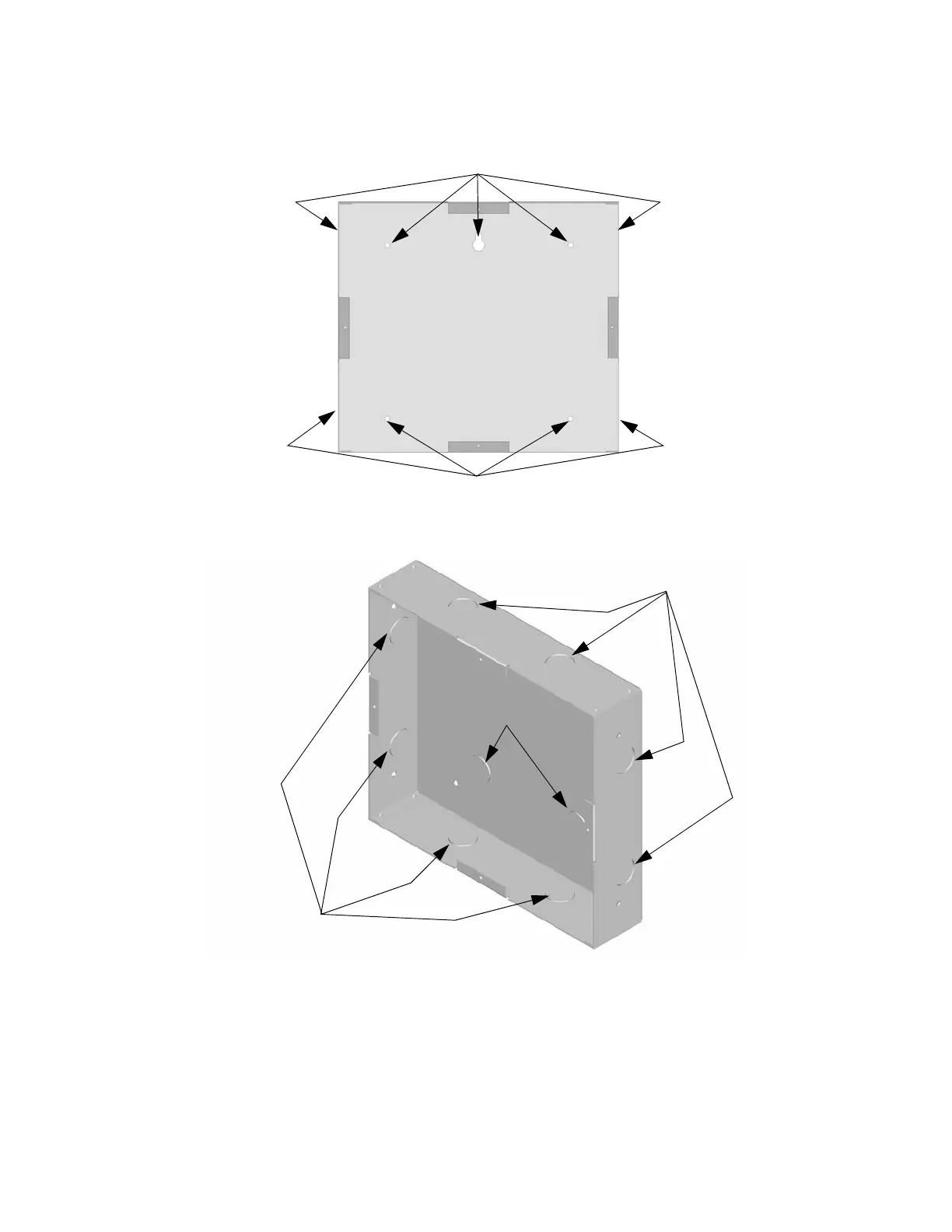

Figure 4-12 Backbox Mounting Holes
2. Remove knockout holes as needed for wires. See Figure 4-13 for backbox knockout locations.
Figure 4-13 Backbox Knockout Locations
3. Wire the annunciator board to the main control panel. As described in Section 4.5.2.
Mounting Holes
Mounting Holes
Wire Knockouts
Wire Knockouts
Wire Knockouts
