LS10143-001SK-E Control Panel Installation
4-2
4.1.2 Removing the IFP-2100/ECS Assembly from the Housing
Should it ever be necessary to remove the control panel assembly from the cabinet for repair, do so by
unscrewing the nuts that connect the control panel assembly to the cabinet. Do not attempt to disassemble the
circuit boards.
4.1.3 Ethernet Connection
Ethernet connect for IP communication. For port location see Figure 3-3.
4.2 AC Power Connection
The AC terminals are rated at 120VAC, 50 or 60 Hz, 5A (for the IFP-2100/ECS) or 240VAC, 50 or 60 Hz, 2.8A
(for the IFP-2100/ECSHV).)

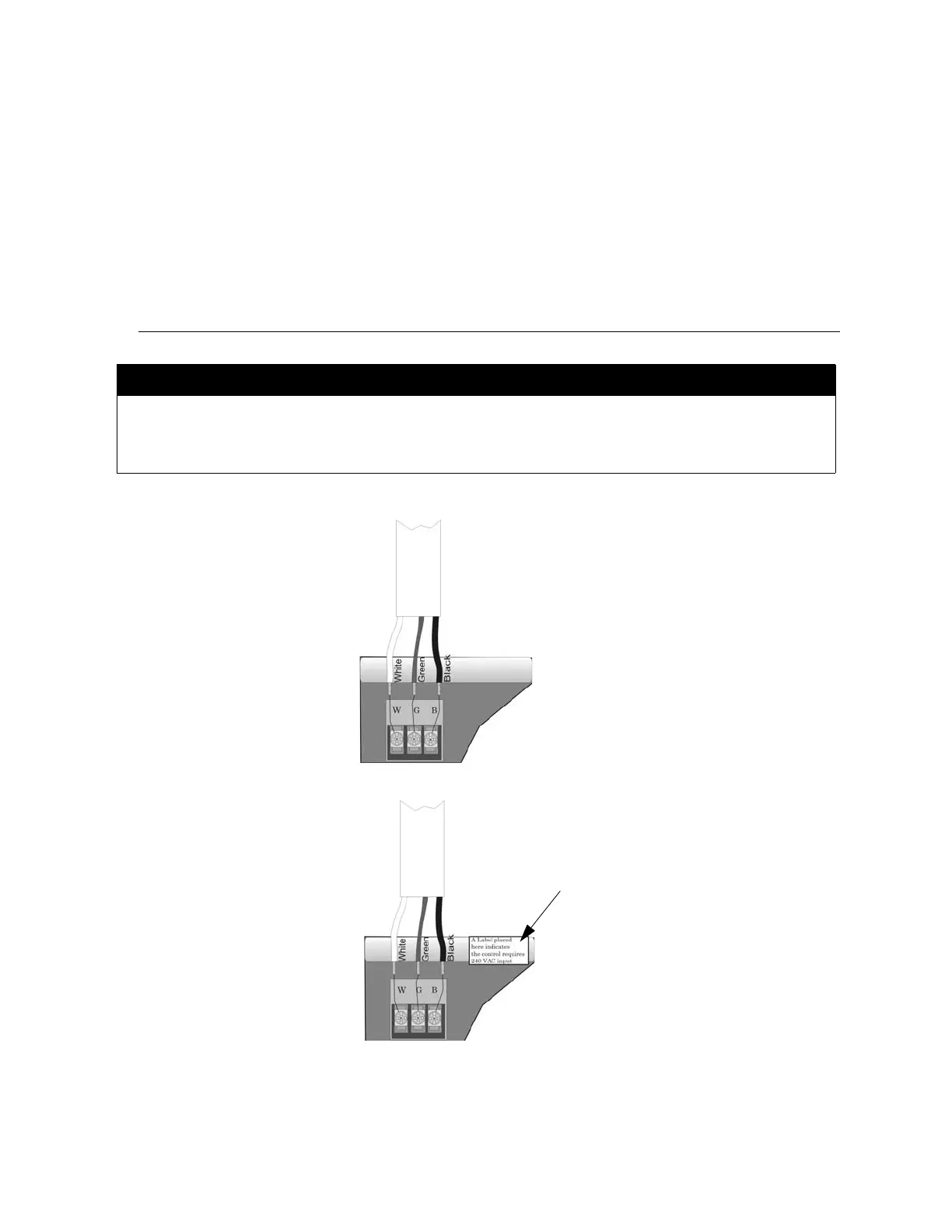

Figure 4-2 120 VAC Power Connection for the IFP-2100/ECS
Figure 4-3 240VAC Power Connection for the IFP-2100/ECSHV
WARNING: RISK OF ELECRICAL SHOCK AND EQUIPMENT DAMAGE
SEVERAL DIFFERENT SOURCES OF POWER CAN BE CONNECTED TO THIS PANEL. DISCONNECT ALL
SOURCES OF POWER BEFORE SERVICING. THE PANEL AND ASSOCIATED EQUIPMENT MAY BE
DAMAGED BY REMOVING AND/OR INSERTING CARDS, MODULES OR INTERCONNECTING CABLES
WHILE THIS UNIT IS ENERGIZED
240VAC models
are labeled
here
