LS10143-001SK-E Control Panel Installation
4-22
4.8 5815XL Installation
The 5815XL SLC expander lets you add additional addressable devices. The maximum number of SD SLC
devices per panel is 2032. The number of 5815XL’s is limited by the maximum number of SBUS devices.
Note: 5815XL will only support SD protocol devices on this panel
To install the 5815XL:
1. Make sure power is off at the panel.
2. Mount the 5815XL in the IFP-2100/ECS cabinet, the RPS-1000 cabinet, or the 5815RMK remote mounting
kit. Use the standoffs located under the control panel board assembly and secure with screws provided with
the 5815XL. For additional information see Model RPS-1000 Installation Instructions (P/N 151153) or
5815RMK Remote Mounting Kit Installation Instructions (P/N 151391).
3. Connect the 5815XL to the control panel. (See Section 4.8.1.)
4. Use on-board DIP switches to select an SBUS ID#. (See Section 4.13.1.)
5. Add the 5815XL module to the system through programming. JumpStart will add the module automatically
(see Section 8.1). You can also add it manually (see Section 9.2.2). Select a name, if desired (see Section
9.2.1.2).
You are now ready to connect SLC devices to the 5815XL (see Section 7.6).

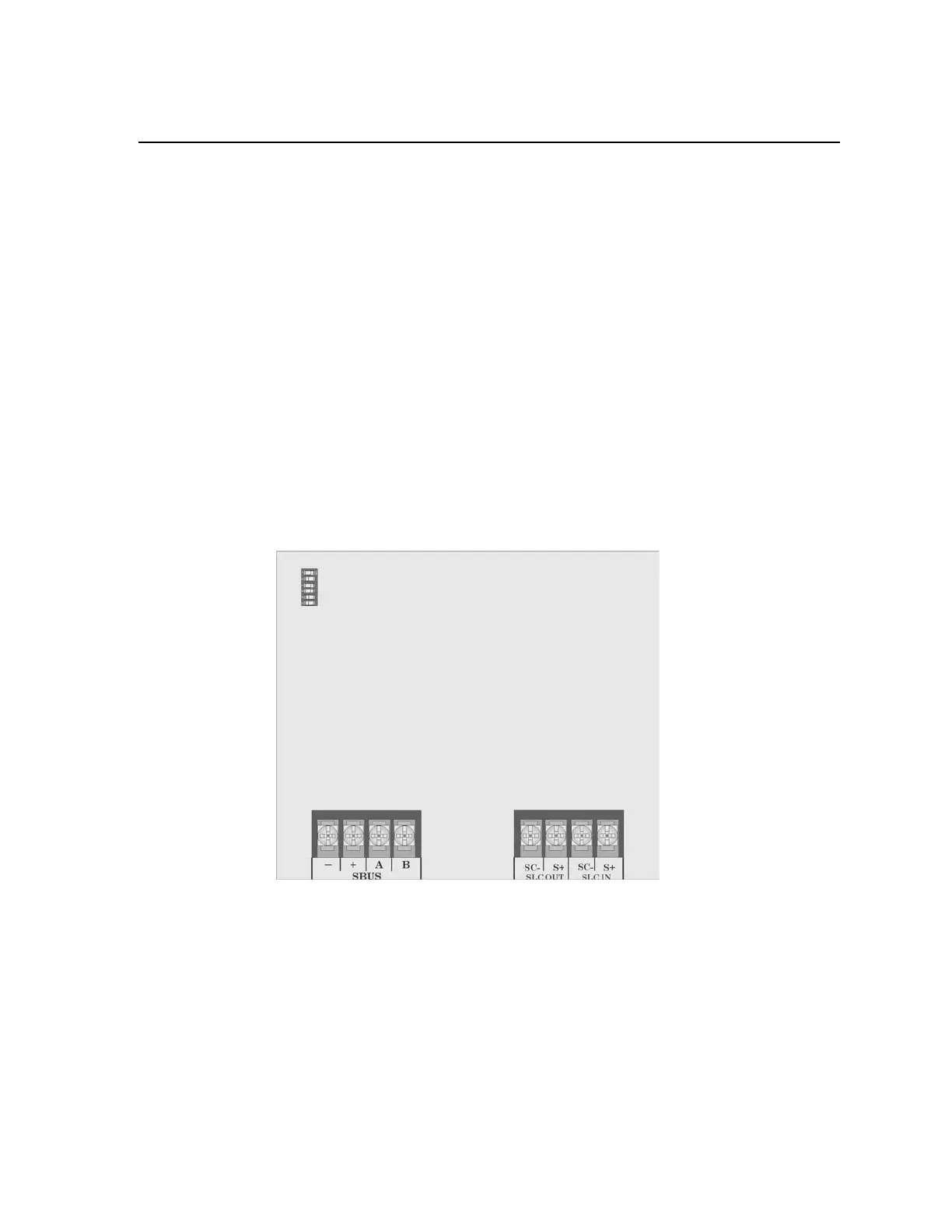

Figure 4-31 is a drawing of the 5815XL board, showing the location of terminals and DIP switches.
Figure 4-31 5815XL Board
4.8.1 5815XL Connection to the Panel
Connect the 5815XL to the control panel as shown in Figure 4-32. After the 5815XL is connected to the panel, it
DIP switches for
setting IDs
To panel via SBUS
To SLC loop
