POSSIBLE HARDWARE OP
TIONS AND TYPE PLATE
S
EnCal 3000
Hardware
Manual
73022344 o
112
11.1 Option HT: Heaters installed
The device has the option for an additional heating system (cabinet heaters) for use in
temperatures around freezing and below.
They are attached directly to the mounting plates and provide additional heat when the
internal enclosure temperature goes below 10 °C (50 °F). Figure 2.10 shows the location
of the cabinet heaters.

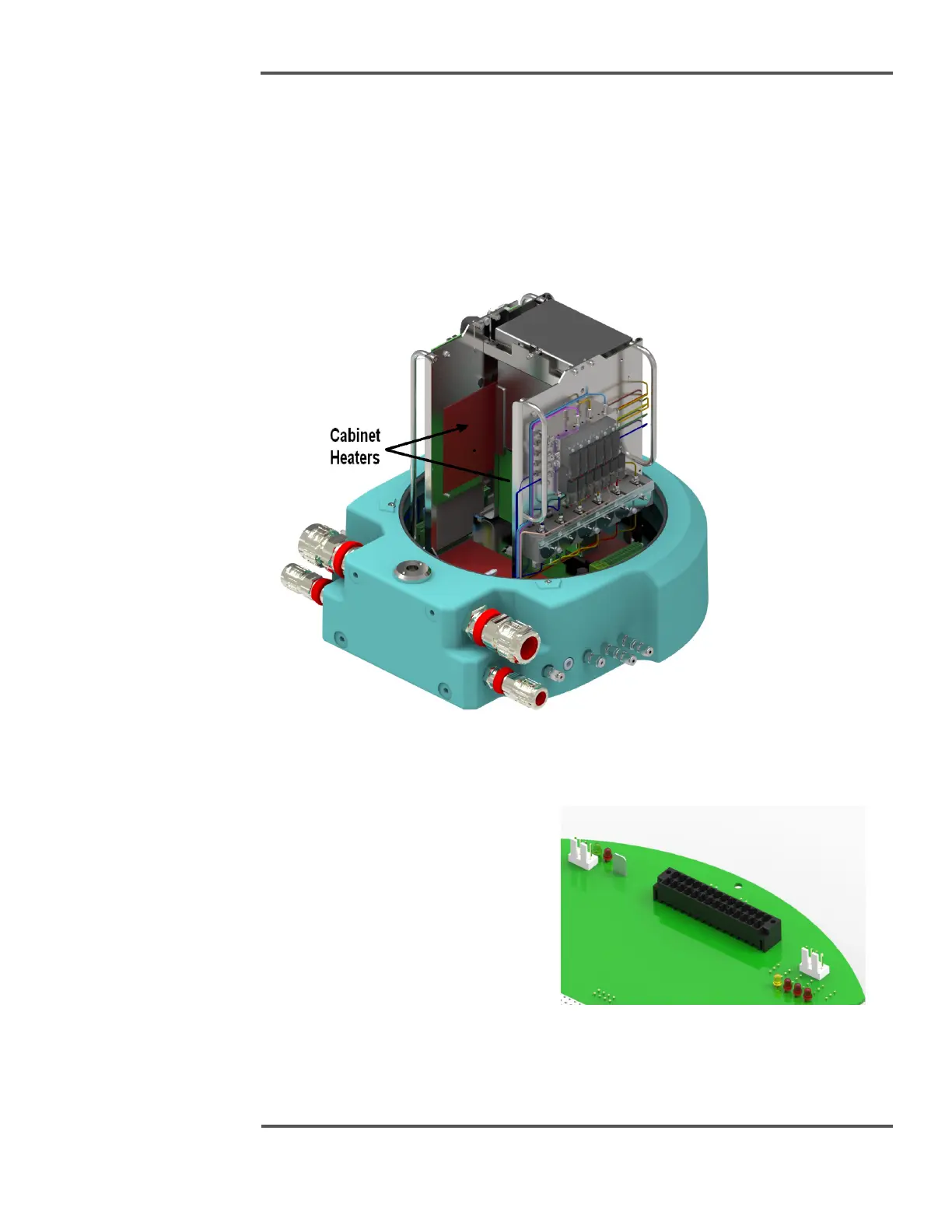

Figure 11.2: Cut-out of an EnCal 3000 showing heaters installed
For the regulation of the heaters standard
thermostats with a fixed setting are used.
These thermostats are connected to the
interconnection board close to the
connectors for the power supply of the
heaters (see also Interconnection board
connectors in Version 2 they are located
close to the connectors for the power
supply of the heaters.
