HOUSING INTERIOR WIT
H MAJOR INTERNAL COM
PONENTS
EnCal 3000
Hardware
Manual
73022344 o
39
5.2 Processor Board
The main components of the board are:
Arm9 Processor
A Flash-Memory 32 MB for local data storage
The Ethernet-Port
Data communication ports (COM1-4) for serial Modbus, Analogue and Digital I/O
USB Port
I/O Controller for Communication to the analytical channels
Pressure- and Temperature Sensor

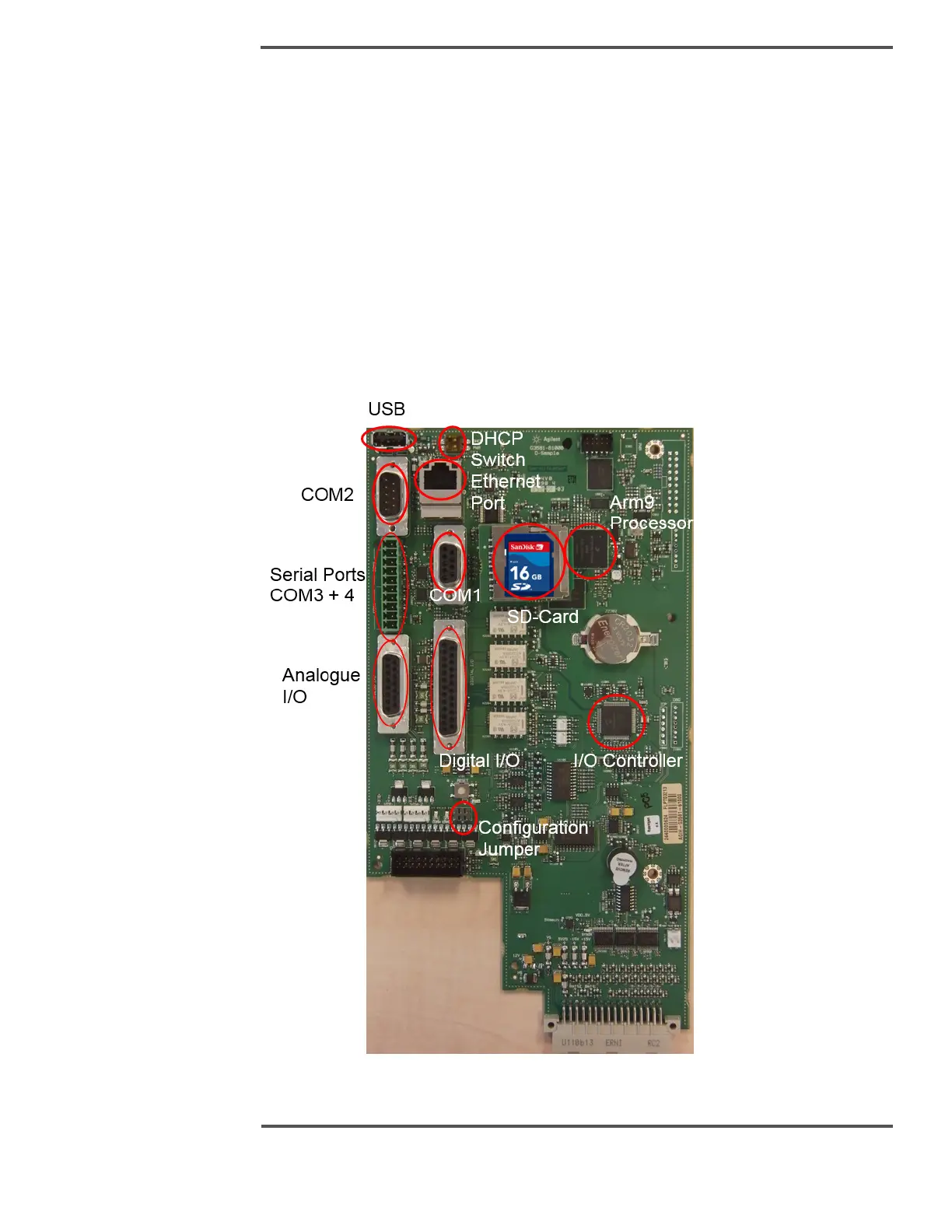

Figure 5.5: Processor Board connections
