11.3 Option QS : Quad Slave
The Encal 3000 Quad is the combination of two housings in one measurement System.
The two housing each have an explosion safety approval label. In the two housings is
place for up to four analytical channels that are controlled by one processor board. This
System is especially developed for extended analysis applications which cannot be
solved with just two channels.

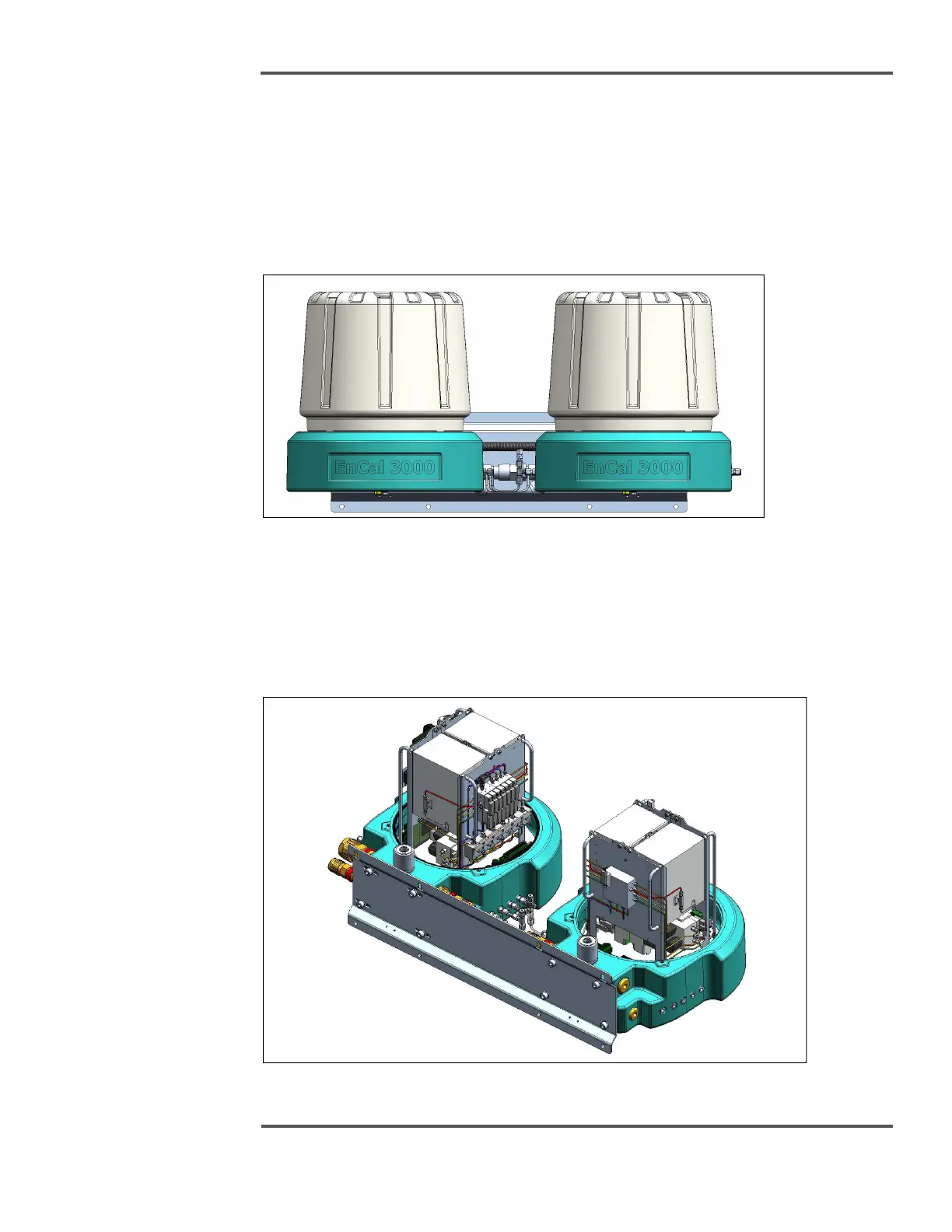

Figure 11.4: EnCal 3000 Quad (right master / left slave)
With up to four channels it is possible to analyse all typical components of interest in
one system. The two housings are mounted on a metal plate to have a stable connection.
The right housing, further referred as “Master unit” contains the first two channels, the
processor board for the control of the measurement system and the sample selection.
Figure 11.5: Quad with open covers
