6.4.4 Connections on the EnCal 3000 Interconnection board Version 2.x
The drawing below shows the top lay-out of the Interconnection Board at the bottom of
the unit. It contains all the connectors for external cables. For flame retardant wiring use
cables according an ISO norm. To fulfill the FM regulations always use cables / wiring
according to UL94 V-1 or equal for installation. All the wiring with the other electronic
boards is done in the factory, and may not be changed during field installation.

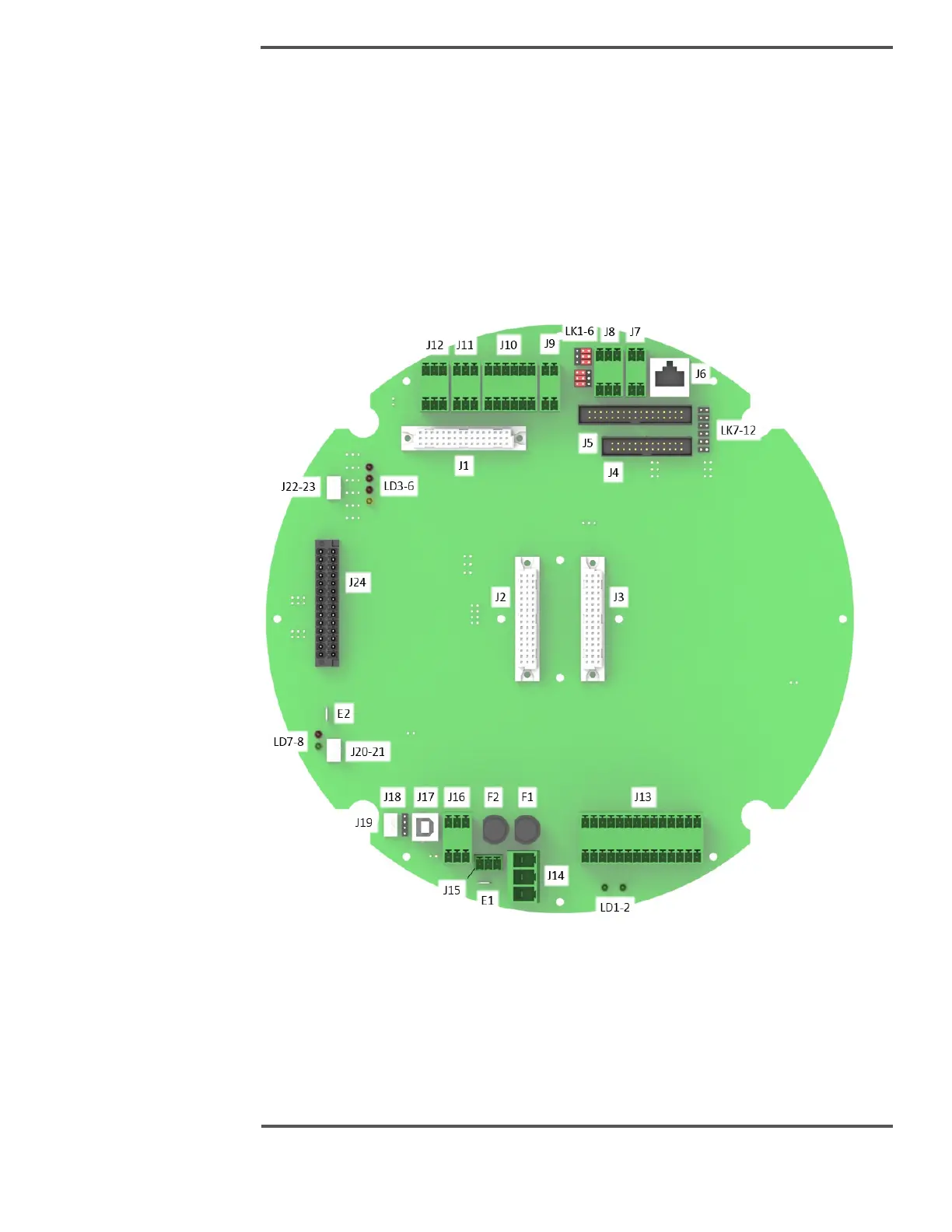

Figure 6.15: Interconnection Board V2.x: top view lay-out
