HOUSING INTERIOR WIT
H MAJOR INTERNAL COM
PONENTS
EnCal 3000
Hardware
Manual
73022344 o
41
5.2.2 Processor Board installed
When installed in the EnCal 3000, a flat cable makes the connection between the
communication ports of the Processor Board and the Interconnection Board, which
provides field connections (Phoenix connector) for the data communication signals.
Also 2 fans can be mounted to cool the processor in case of elevated ambient
temperatures.

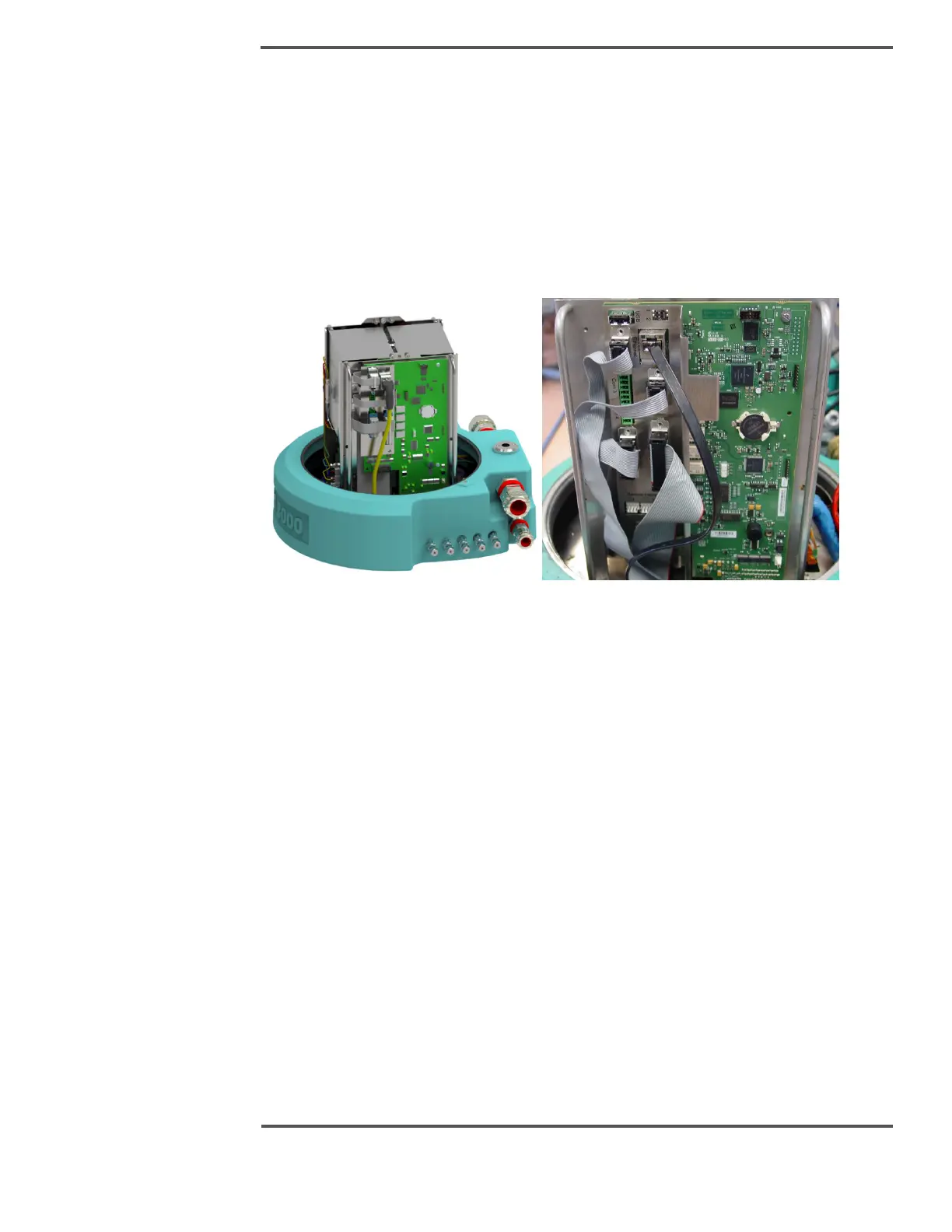

Figure 5.7: Processor board with ribbon flat cables mounted in the EnCal 3000
5.3 Interconnection Board
This board in all variations has the following functions:
• Power supply input (24 VDC)
• DC/DC converter
• Connection of Processor Board with Analytical Modules
• Field data communication connectors
• Actuation of stream select solenoids
• Enclosure temperature regulation
• Internal DC/DC conversion for various circuits
