6.5 Fluidic installation
The installation of the fluid interfaces / connections is described in the following.
Always remember :
ATTENTION
The maximum pressure at the gas inlets on the device must not be exceeded so as
to prevent damage and dangerous situations.
This must be guaranteed on site by external protection which is not part of the
device.
Refer to the information in chapter 2.4 when setting the maximum pressure.
The required pipelines and safety devices must be fitted to comply with
current general regulations and the specifications in this manual.
6.5.1 Fluid connections
The device has multiple gas connections for various functions. They are always fitted
by the manufacturer. All gas and vent lines do have a 1/8” Swagelok connection to the
EnCal 3000. On request also 3 mm connections are available.

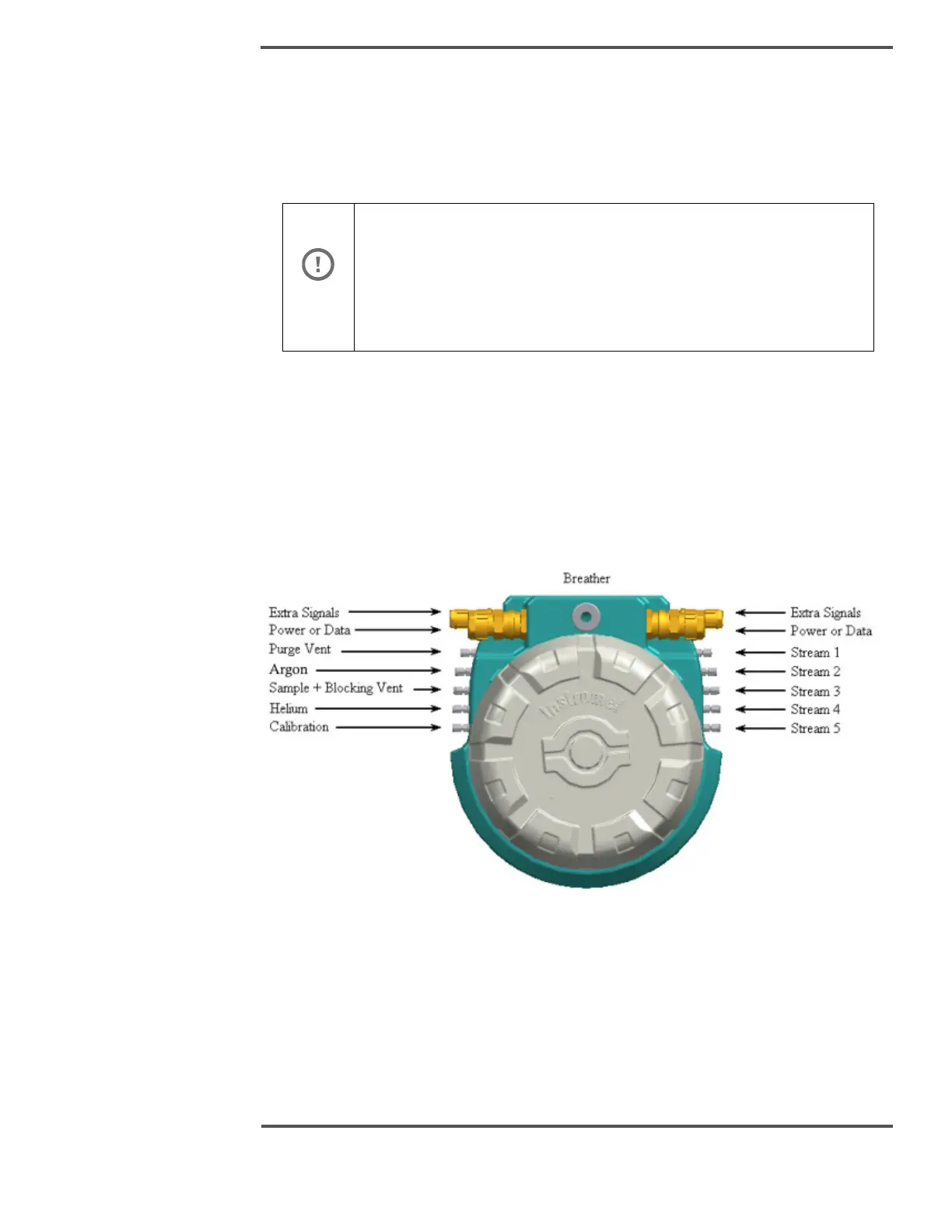

Figure 6.20: Fluidic connections
