1 About this Manual and Device delivery
1.1 Scope (Aim)
This user manual for the Gas quality measurement system EnCal 3000, hereinafter
referred to as the EnCal 3000, describes the Hardware of this gas chromatograph
(measuring unit). The other subsystems are described in separate manuals.
The measurement system consists in its basic configuration of a measuring unit and an
optional Encal3000 controller. The measuring unit is the real gas chromatograph. It
performs the analysis by measuring technology autonomously.
It is configured with the PC program "RGC 3000" and it is possible to install an additional
optional Encal3000 controller. (See separat manuals). The subsystems communicate
with each other via Modbus (see Figure 1.1 for basic configuration with measuring unit
and an optional Encal3000 controller).

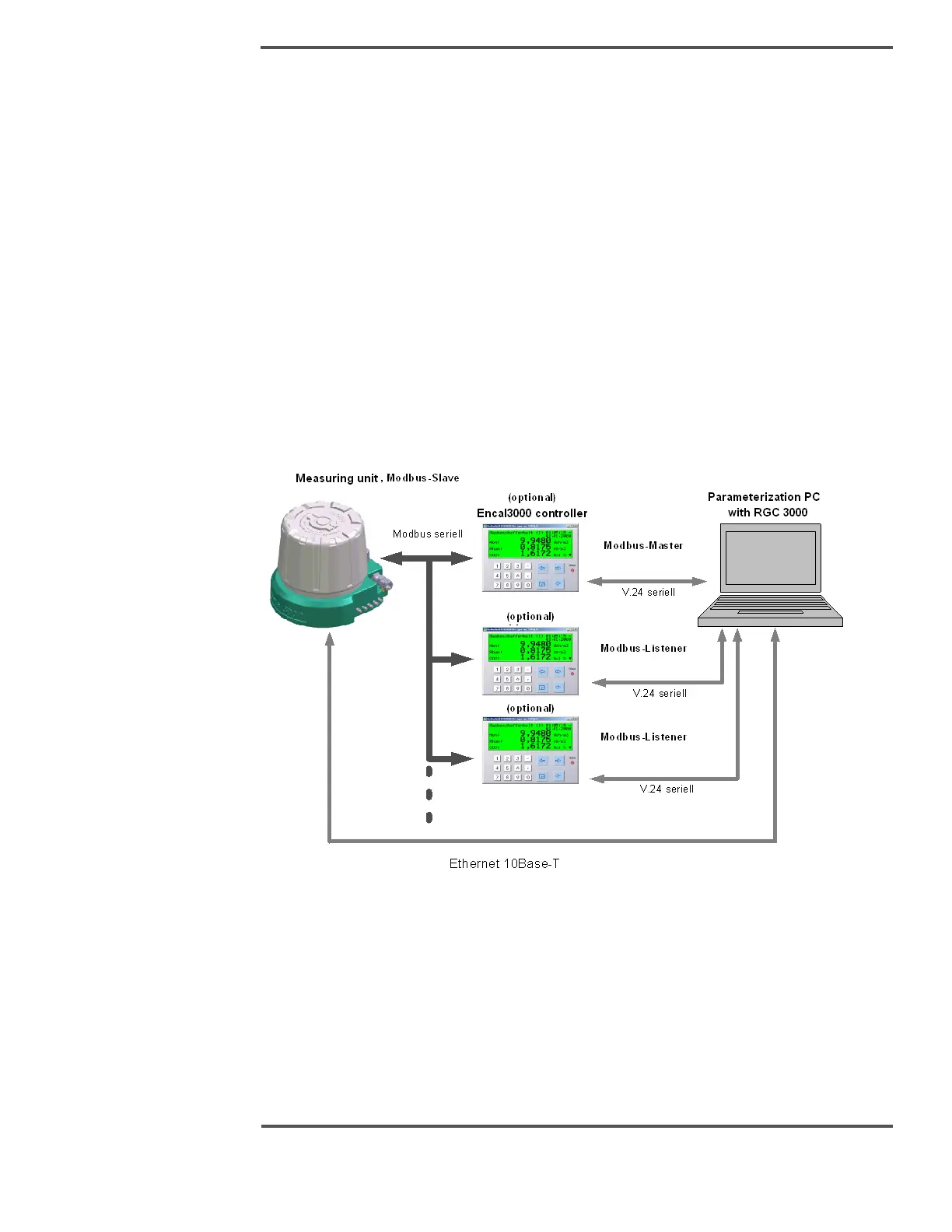

Figure 1.1: Parts of the Gas quality measurement system
The enCal 3000 is suitable for worldwide use. You should use a manual in your mother
tongue or a language with which you are extremely familiar to ensure that you
understand all the information. The safety and warning information on the device are in
English or French. This information is stated in this document in the appropriate
language. In accordance with Honeywell's "Safety first" principle the maual starts after
the following introductory with this topic.
