6.3.1 Device dimensions
Please note that all dimensions in the following drawing are shown in mm. The relevant
dimensions (raw dimensions) are highlighted in bold. Some of them will change
depending on the types of fluid and electrical couplings used.

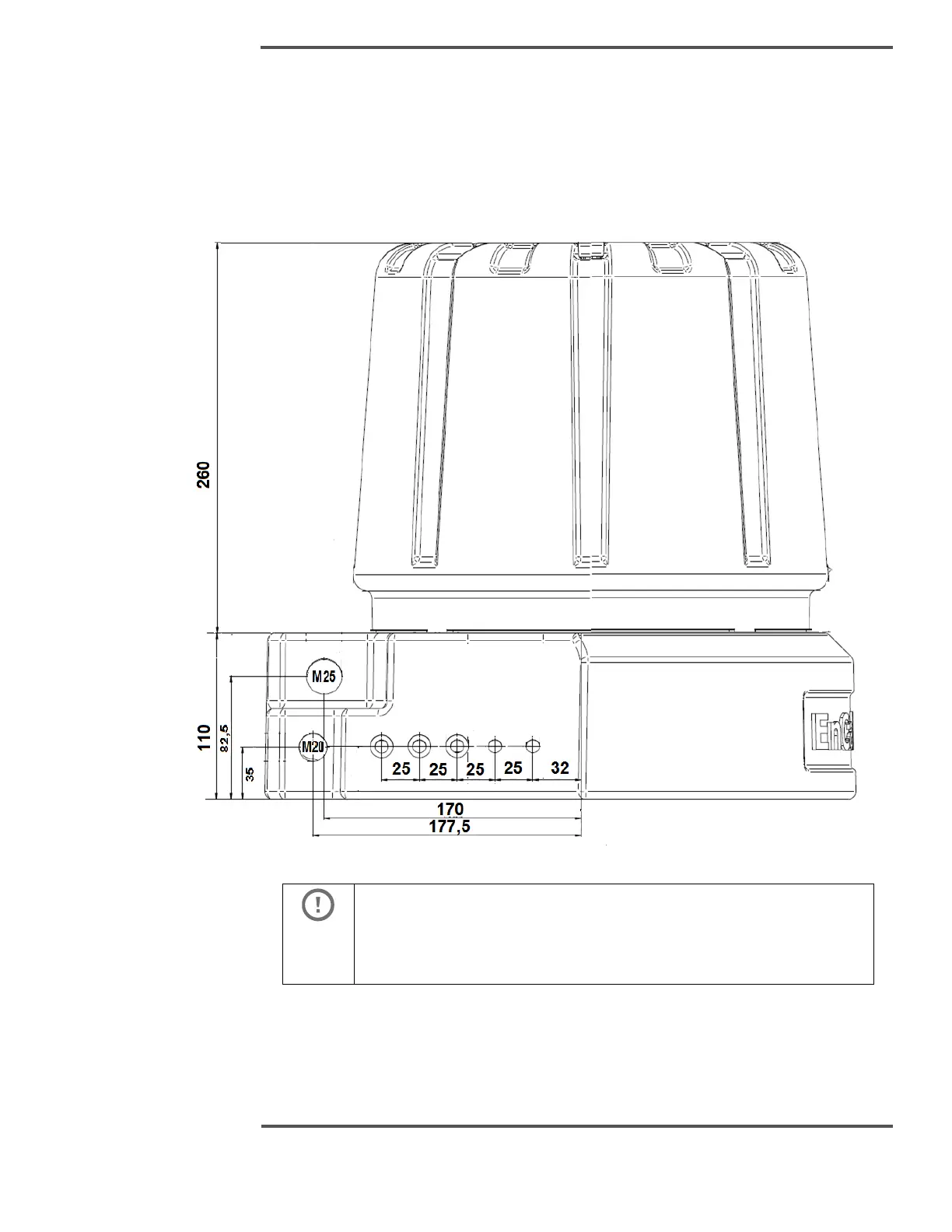

Figure 6.3: Side view with dimensions (without couplings and connections)
ATTENTION
Depending on local regulations, the weight of the EnCal 3000 (28kg) may
exceed the allowable manual lifting limit for one person.
Be sure the appropriate manpower or lifting equipment and protective
equipment such as safety shoes are available.
