HOUSING INTERIOR WIT
H MAJOR INTERNAL COM
PONENTS
EnCal 3000
Hardware
Manual
73022344 o
34

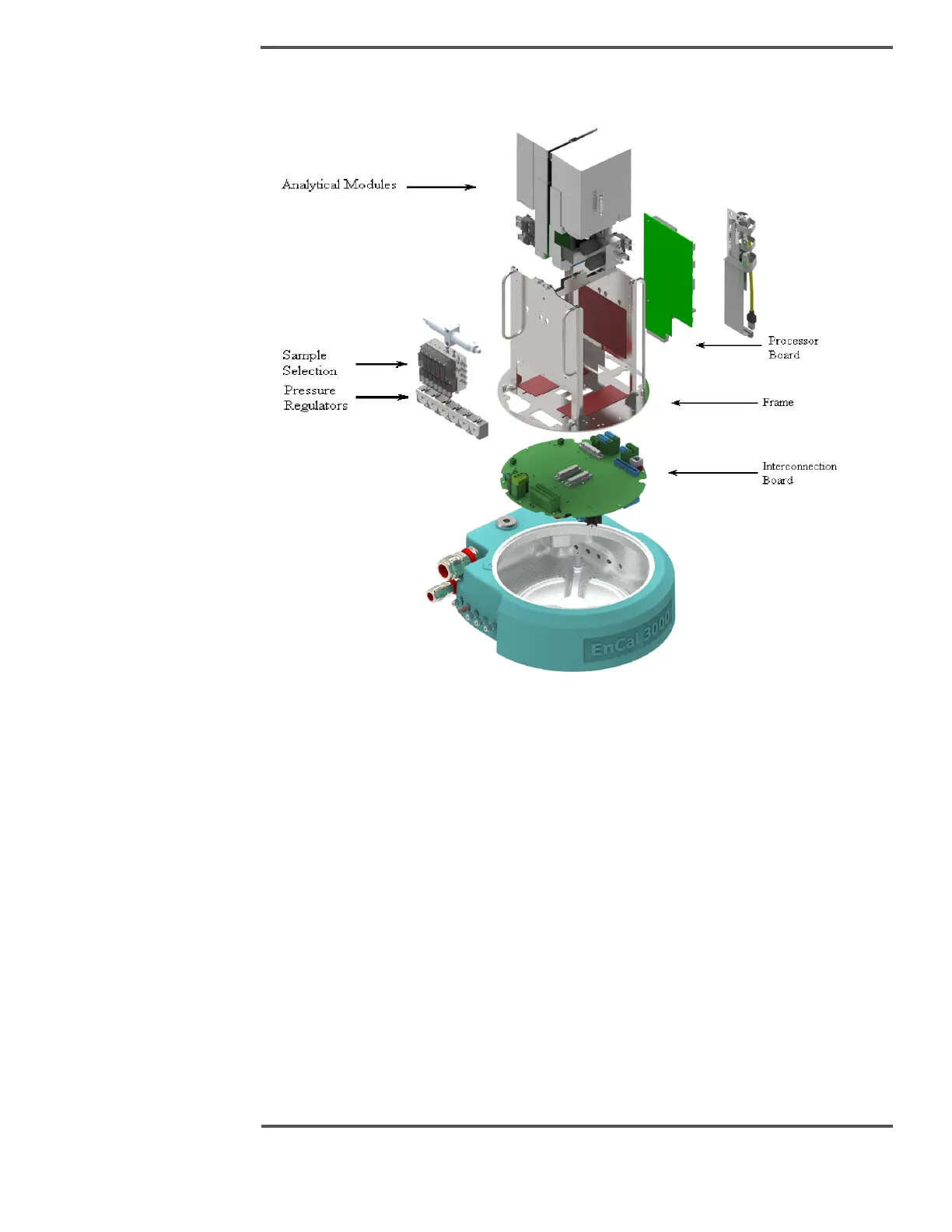

Figure 5.1: Exploded View on the Internal Parts of the EnCal 3000
The frame is used for mounting the components and allows the removal of all the direct
and individual components, with the exception of the interconnection board.
If the Interconnection Board must be removed (bottom), the frame has to be removed
from the enclosure base first. This arrangement permits the service engineer to easily
review the board in case malfunctions would occur.
5.1 The Channel
A channel consists of the following subcomponents:
Analytical Module: This is the heart of the EnCal 3000: it contains the column, sample
injector, detector and the heaters for the columns and the injector
AMI (Analytical Module Interface): electronic circuit which controls the analytical
components of the Analytical Module. It has its own EDS (Electronic Data Sheets) which
stores the local configuration parameters
