Honeywell ENCAL 3000

HOUSING INTERIOR WIT
H MAJOR INTERNAL COM
PONENTS
EnCal 3000
Hardware
Manual
73022344 o
42

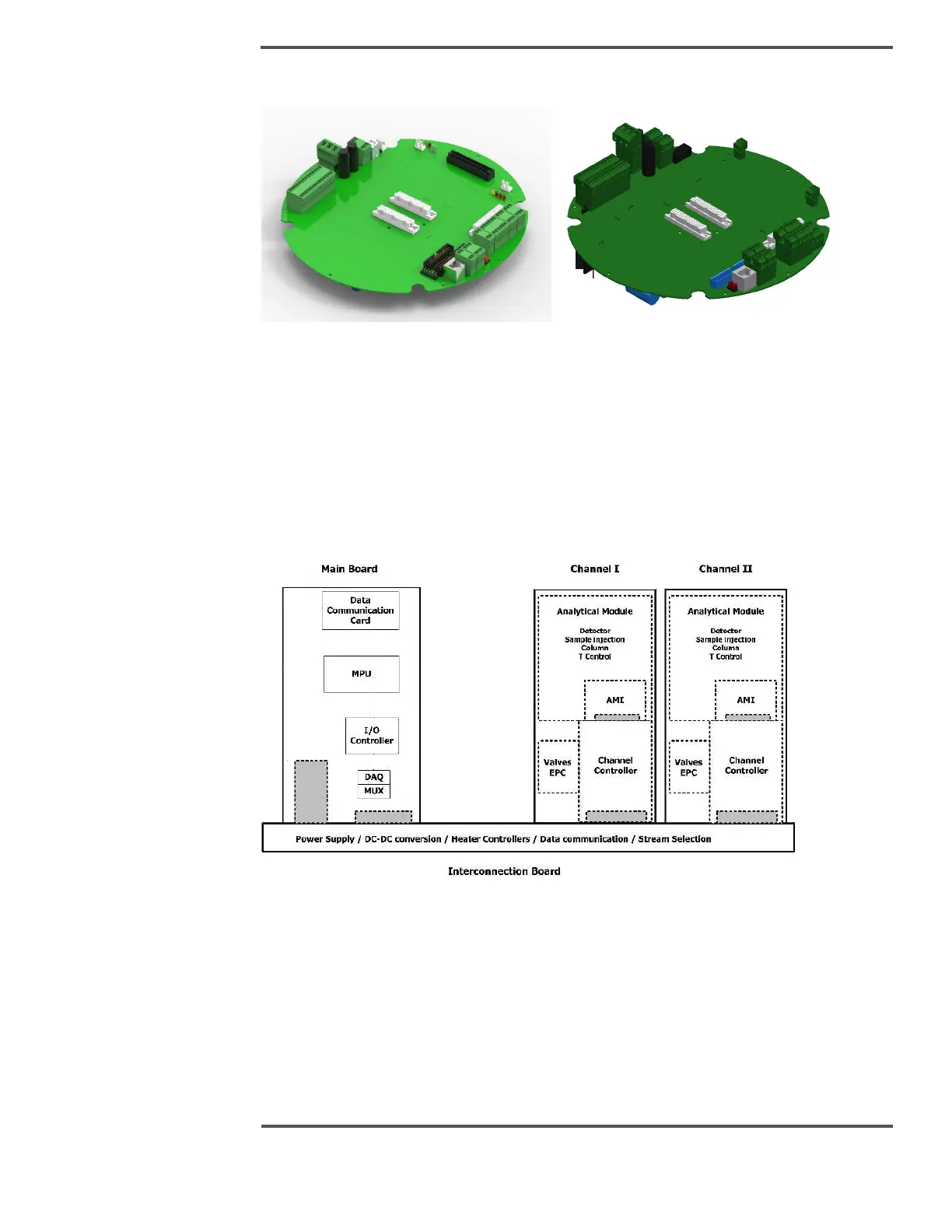

Figure 5.8: Interconnection Board in different variations
The following diagram shows the overall electrical configuration EnCal3000 in a rough
overview.
Figure 5.9: Overall Electrical Configuration of the EnCal 3000
