EnCal 3000 Hardware Manual 73022344 o 63
Serial ModBus connection
The Serial ModBus connection is used for connection with Serial ModBus clients like for
example Flow Computers. The EnCal features 2 Serial ModBus ports with identical
output. They are both independently configurable for RS232 or RS485 communication
through link settings 301 to 304 (see pictures below for location, wiring scheme and link
settings).

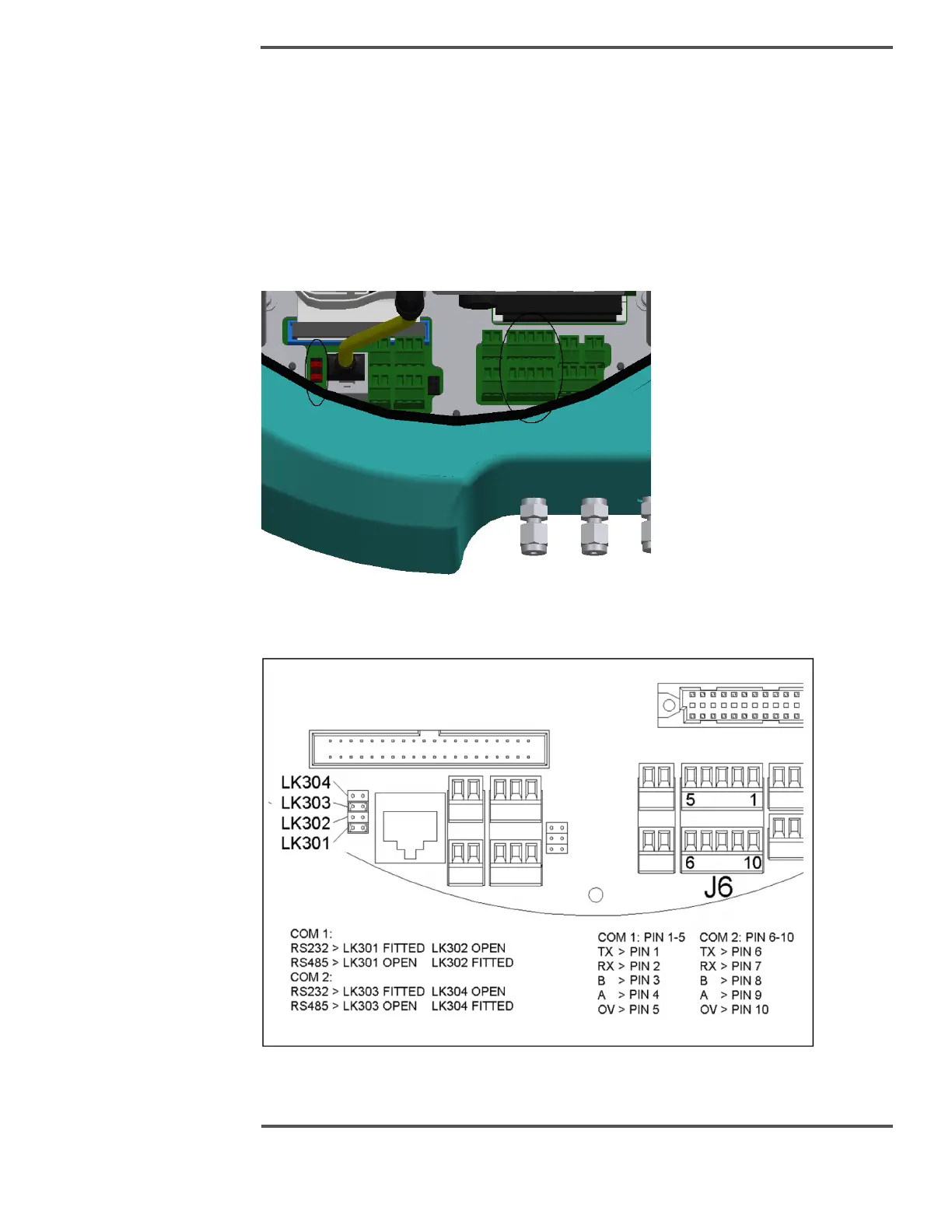

Figure 6.13: Location of Serial ModBus connector (J6)
Figure 6.14: Modbus Connection and Link settings
