ATTENTION
The installation site must satisfy the required ambient conditions. If this
is not the case, for example outside buildings, the device must be
protected from direct sunlight and rain, for example by a metal roof or an
additional air-conditioned housing. Ensure that the device cannot be
struck by a jet of water (for example when cleaning). Further information
is available from your TAC.
The measuring instrument weighs around 28 kg. Before installing it, ensure that the
installation surface is strong enough to support it. The EnCal 3000 can be installed on a
flat vertical surface (wall/measuring board) or on a horizontal surface.
Use the fastening holes provided in the
housing and, if necessary, additional
mounting plates (as shown) for this
purpose.

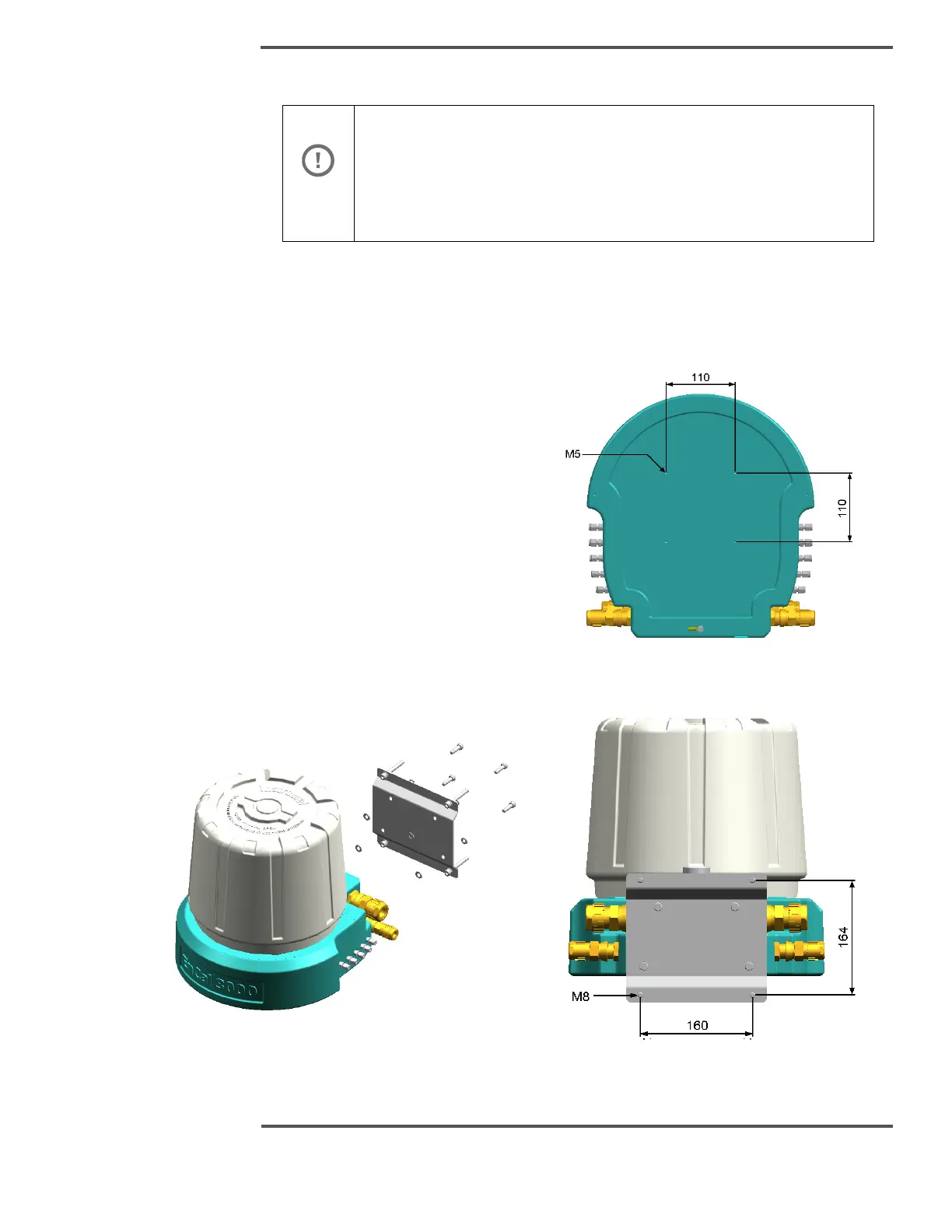

The drawings below and to the side show
the various installation options:
For example, the measuring unit can be
secured to a horizontal surface with four
screws using the four threaded blind holes
in the housing base plate.See drawing
to the side (dimensions in mm).
It can be installed vertically (wall/board
mounting) using a wall mounting bracket
secured as shown in the figures below (dimensions in mm).
Figure 6.5: Installation options 1
