EnCal 3000 Hardware Manual 73022344 o 56
Followind figure shows the number and position of cable glands (looking from the wall
towards the device). The relevant installation guidelines must be obeyed for routing the
cables. The insulation must at least comply with flammability class 1. Use screened
cables.

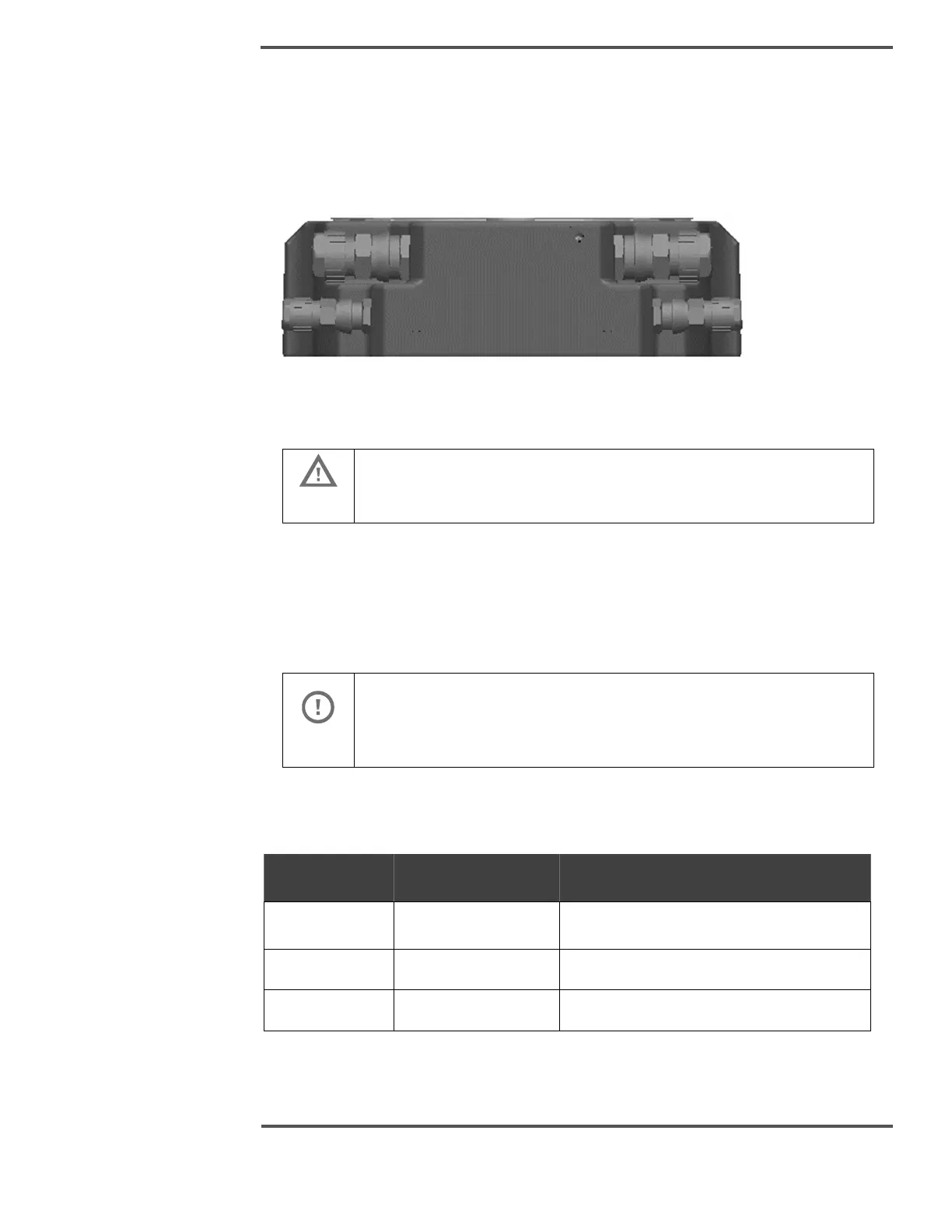

Figure 6.9: Position of the cable end glands on the housing base
CAUTION
The electrical inputs are sealed for reasons of explosion protection. In the
event of a replacement, the complete gland must be replaced. The
residual cable in the device must then be cut and can no longer be used.
The replacement and extension of the electrical connections involve similar work to a
new installation. Proceed as described and
in any event, obey the explosion protection regulations.
ATTENTION
Use only suitable and approved cable inlet equipment. The cable inlets
must satisfy or exceed the IP rating. NEC-compliant cable inlet
equipment must be used in the USA. CEC-compliant cable inlet
equipment must be used in Canada.
Cable glands with a sealing system are typically required or, to fulfil the FM regulations,
seal all conduits within 18 inches. See below table for use of gland or conduit
Approval
Glands / Conduits
Additional info
ATEX Glands Use Barrier glands
IECEx Glands Use Barrier glands
NEC (US) Conduit seal within 18 inches (45 cm)
