Honeywell ESSER Serial essernet Interface SEI1 - SEI1 EDP, Unidirectional (Part No. 784855); SEI1 EDP, Bi-Directional (Part No. 784856)

Serial essernet
®
interface (SEI1)
42 FB 798819 / 05.18
7.4.1 SEI1 EDP, unidirectional (Part No. 784855)
Connection via essernet
®
to a management system, without remote control.
esserbus
®
-PLus
esserbus
®
-PLus
esserbus
®
-PLus
essernet
®
1
2
4
5
3
1

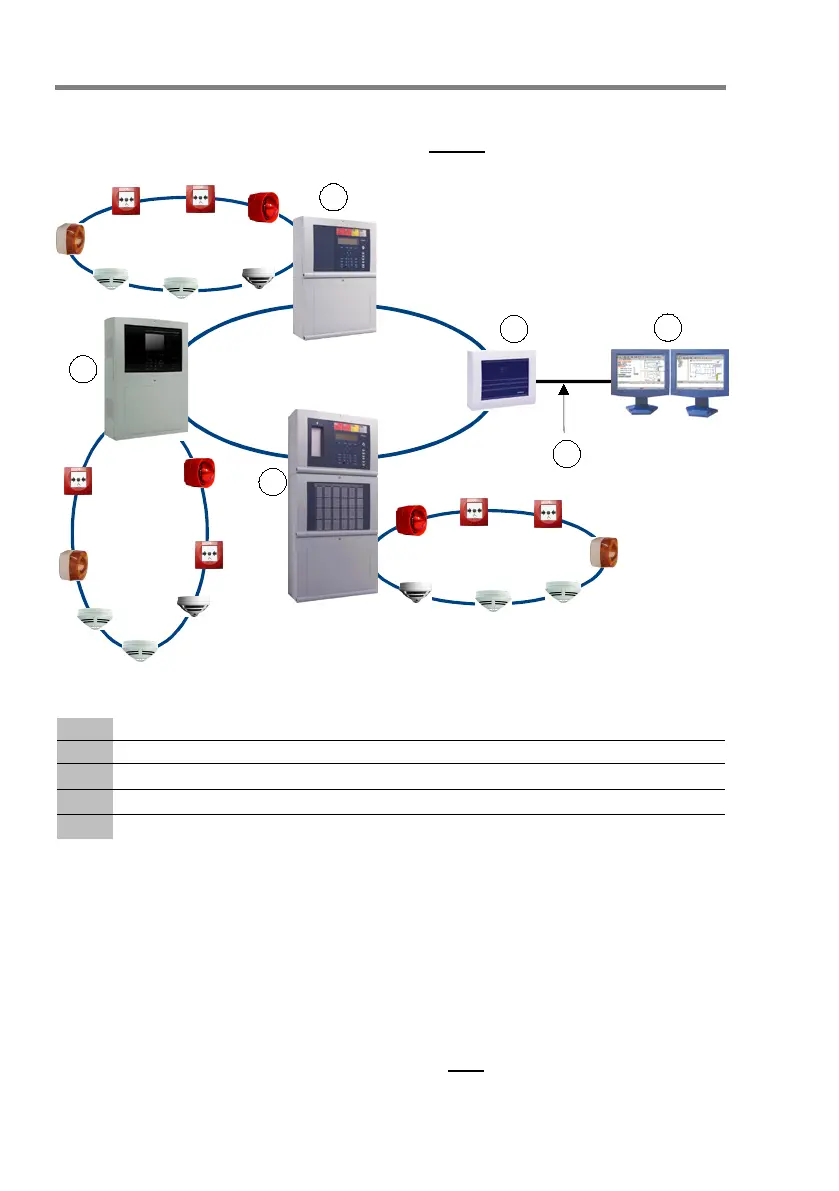

Fig. 1: Wiring principle - Serial essernet
®
interface (Part No. 784855)
to a management system

FACP 800x / IQ8Control

FACP FlexES Control

Serial essernet
®
Interface (SEI1)

Client management system

RS232 / TTY, 19,2 kBd / cable length max. 1000 m
Configuration
• Set network address (= FACP number) at the essernet

module (ref. chapter 10.3).
• Program the FACP FACP number of the serial essernet

interface in the customer data of
the other FACPs connected to the network.
• Set the FACP type = ENP for the serial essernet

interface in the customer data of the other
FACPs connected to the network.
7.4.2 SEI1 EDP, bi-directional (Part No. 784856)
Connection via essernet
®
to a security system supervisor with remote control options (see Fig 1).
