Honeywell ESSER Serial essernet Interface SEI1 - Installation in an FACP or Extension Housing

Serial essernet
®
interface (SEI1)
FB 798819 / 05.18 49
9.1 Installation in an FACP or extension housing
The serial essernet

interface can be integrated the FACP housing.
Alternatively, an extension housing (e.g. Part No. 789303) may be used.
1 2 3
4 5 6
7 8 9
0
1 2 3
4 5 6
7 8 9
0
X3
ON
1 2
1 1
X3
ON
1 2
1 1
X3
ON
1 2
1 1
X3
ON
1 2
1 1
X3
ON
1 2
1 1

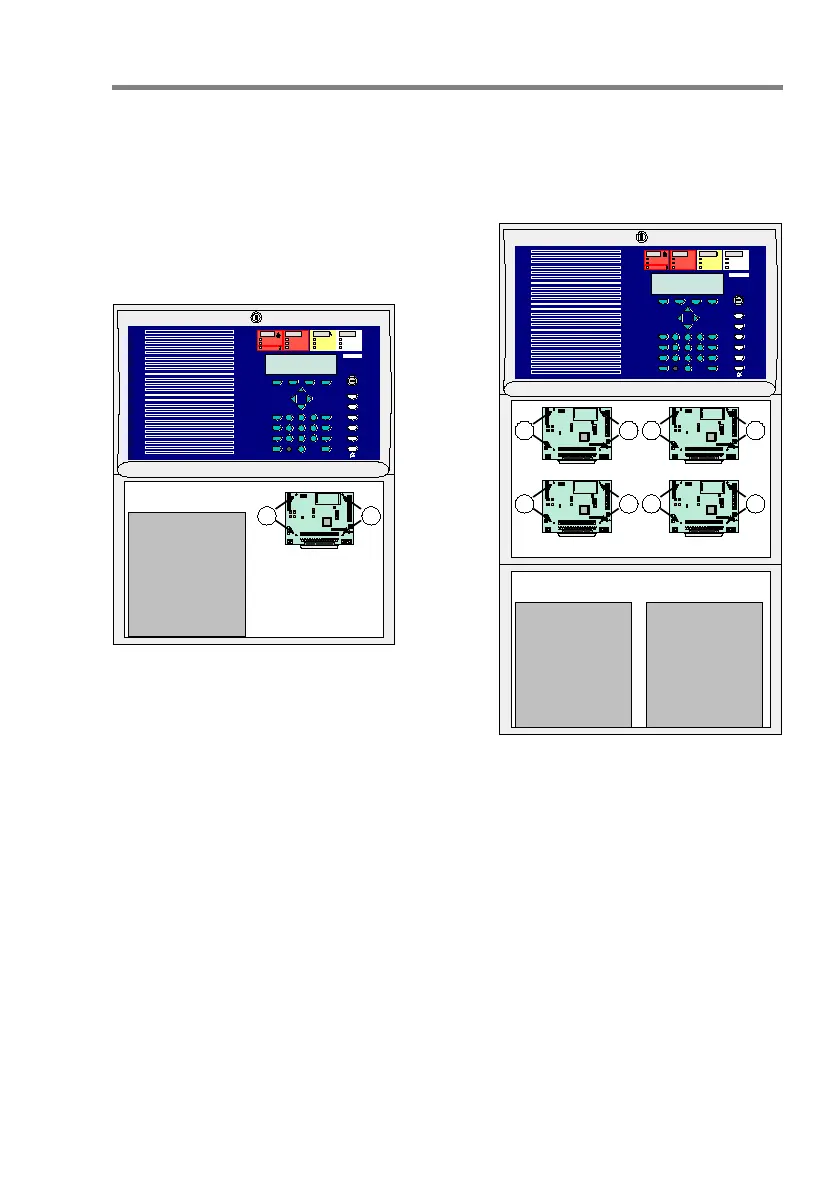

Fig. 4: Mounting example

=
holes "H" in the standard rear section, e.g. series 800x C / M or IQ8Control FACP
housing
Depending on the housing type, the serial essernet

interface is installed at one of the available
mounting positions (holes H). The installation kit (Part No. 788605) can be used for mounting
the interface.
