Serial essernet
®
interface (SEI1)
44 FB 798819 / 05.18
7.4.4 SEI1 FACP 8000 / IQ8Control-Remote (Part No. 784859)
Connection of a single remote FACP 8000 / IQ8Control via the RS485 interface of the SEI1 or
the interface of interface modules. Information from the FACP is displayed in the main
essernet

.
esserbus
®
-PLus
esserbus
®
-PLus
essernet
®
esserbus
®
-PLus
essernet
®
2
1
esserbus
®
-PLus
1
1
1
1
2
3
4
5
7
6

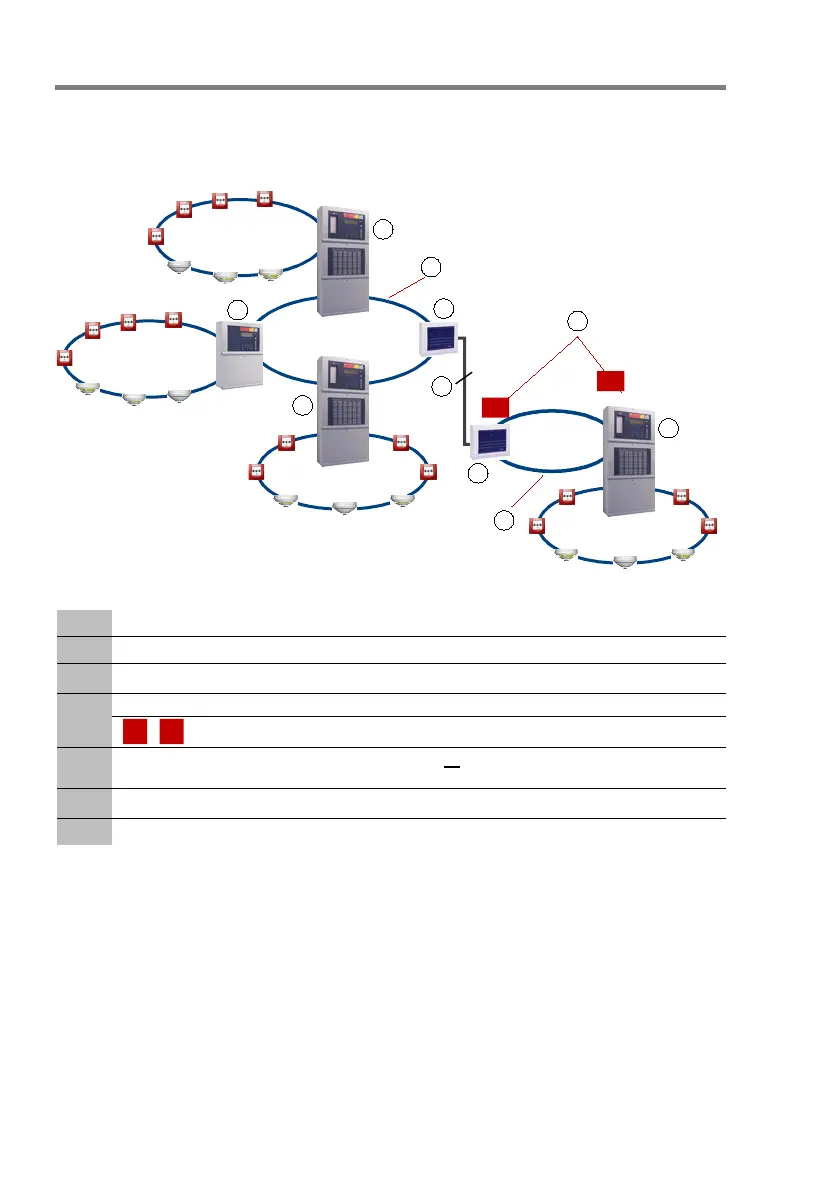

Fig. 3: Wiring principle - Serial essernet
®
interface (Part No. 784859)

FACP 800x / IQ8Control

Serial essernet
®
Interface (Master)

Main net

essernet
®
address
21
Required essernet
®
address (= FACP number) for sub net units

RS485 interface (up to 1000 m) ) of the SEI1 or RS232 interface (up to 15 m)
of the interface module (MODEM transmission possible).

Serial essernet
®
Interface (Slave)

Sub net
Configuration
• Set network address (= FACP number) at the essernet

module (ref. chapter 10.3).
• Program the FACP number of the serial essernet

interface in the customer data of the
other FACPs.
• Program FACP type as SP (slave panel) for the serial essernet

interface in the customer
data of the other FACPs.
• If required, the standard configuration may be changed using the software SEI1-Setup
(refer chapter 7).
• The serial network interface in the main network must be configured in the SEI1-Setup as
a Master (sub net = Slave).
