10.3.1 EMC fine protection
The EMC protection for the essernet
®
modules can be switched on or off via jumpers.
• Jumpers J3 to J6 horizontal = EMC protection on (factory setting)
• Jumpers J3 to J6 vertical = EMC protection off
J3 J4 J5 J6

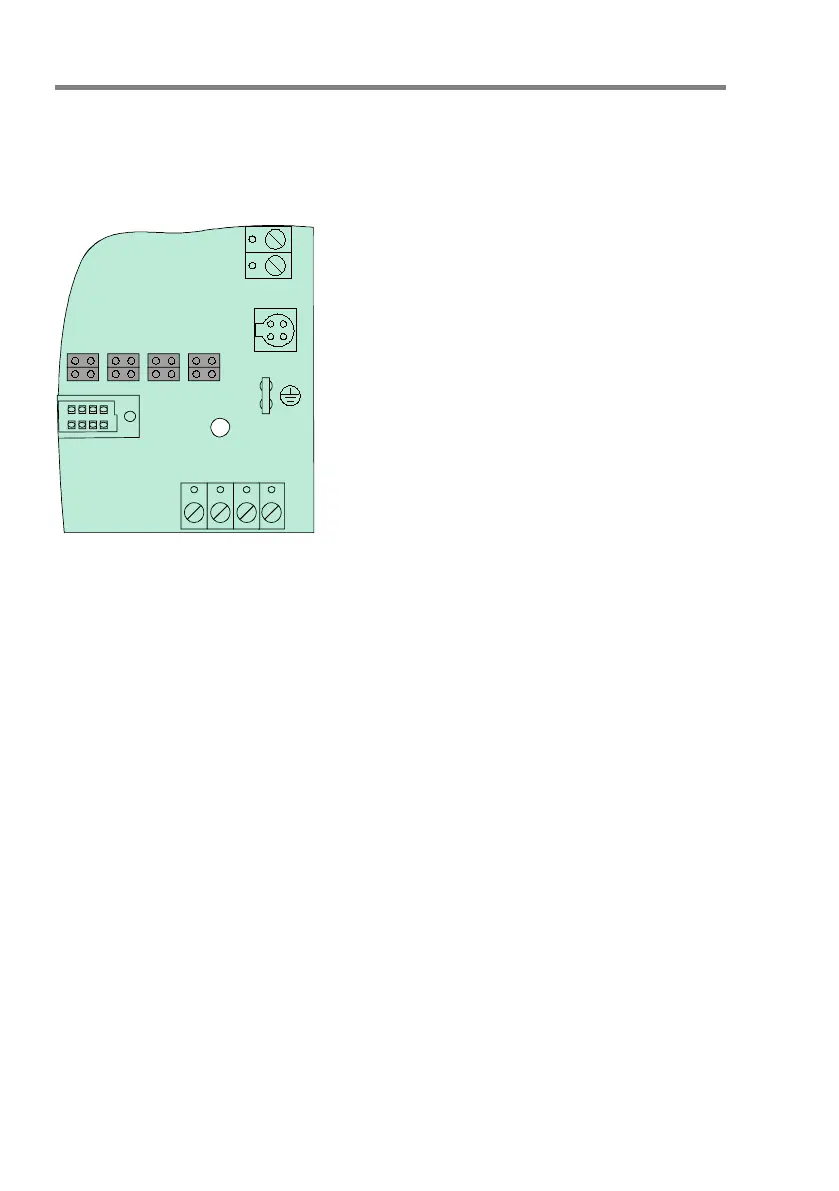

Fig. 11: Jumpers J3 to J6 in horizontal position
