FMC2000 User’s Guide
4. Ensure the shafts of the mounting plate’s studs rest firmly in
the narrow end of the keyhole-shaped captures, and then let
the bracket fully bear the weight of the FMC2000.

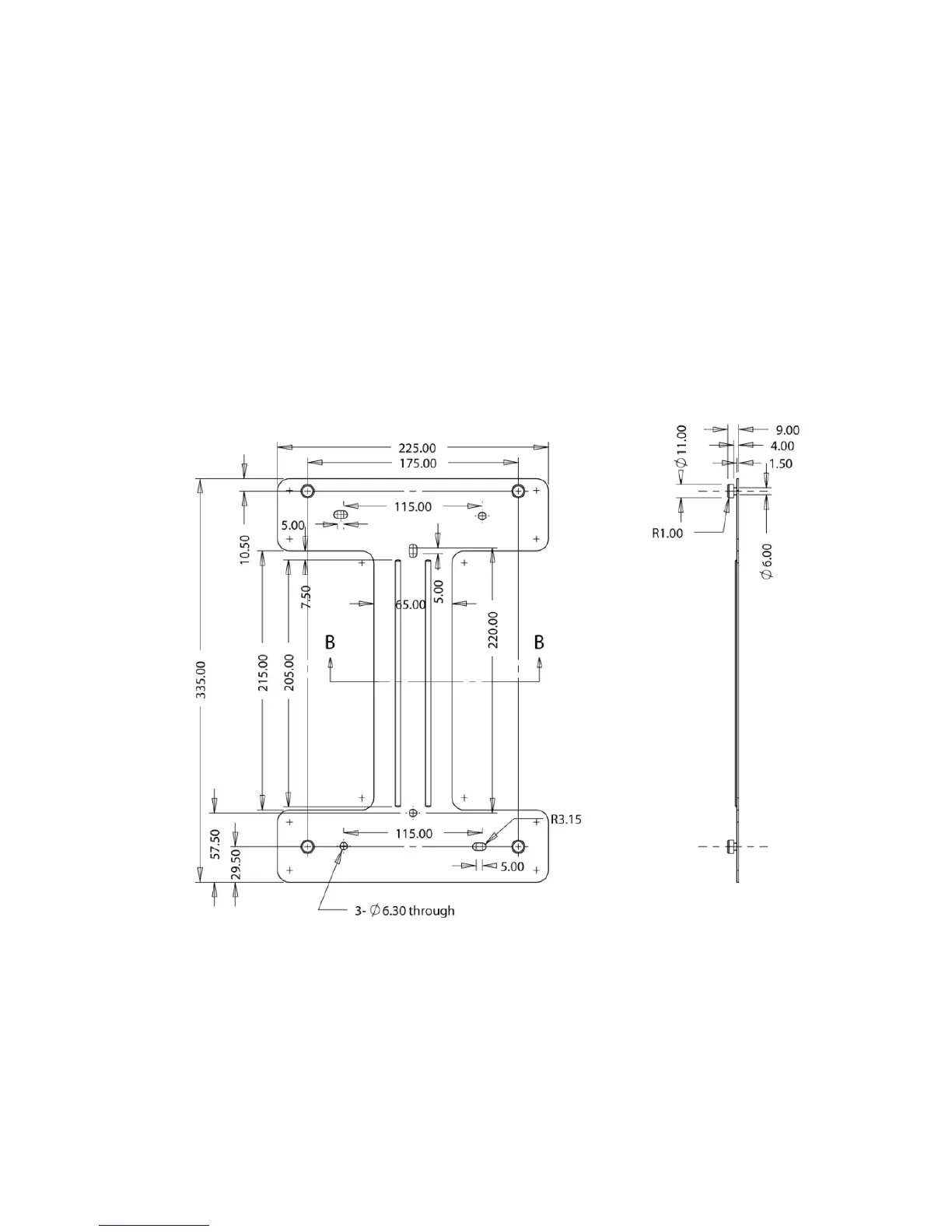

4.3 Drilling Chart
When mounting the FMC2000 on a wall, make sure to use heavy-
duty steel screws spaced as indicated below.
Note: All dimensions are in millimeters.
12
