FMC2000 User’s Guide
30 Appendix E: Connecting to a
Light/Alarm Bar
The FMC2000 has a multi-pin connector on the bottom that is
designed for connection with a provided by Honeywell Analytics
FA-200 Light/Alarm Bar. The internal wires from the connector
are prewired to the NO (Normally Open) connection points on the
five relay wiring blocks.
Note: Pin F connects to Ground. Pins B, C, D, and E transmit 10V
@ 2A power when an alarm occurs.

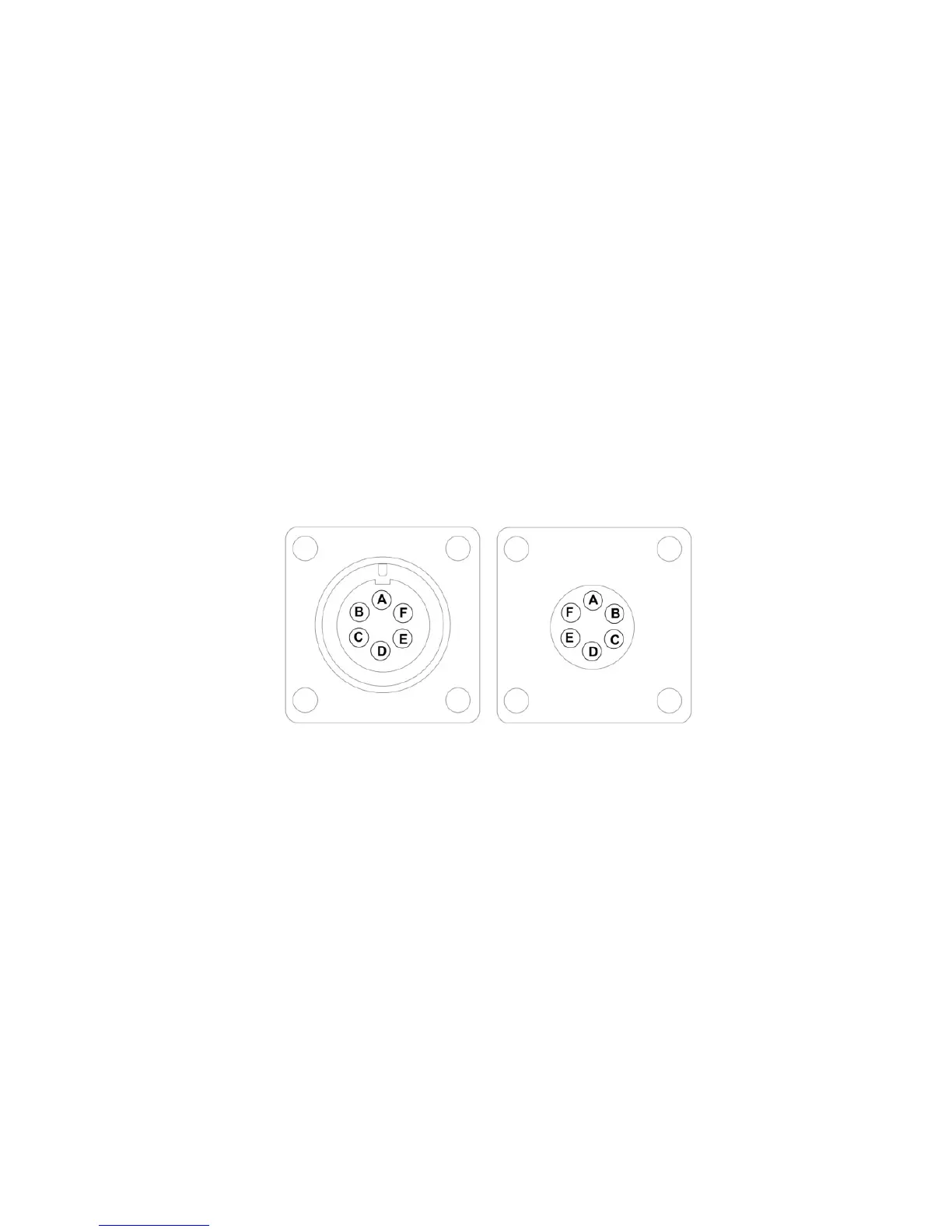

Connector Pin Layout
External Pinout Internal Pinout
Pin A: No connection
Pin B: Relay 1
Pin C: Relay 2
Pin D: Relay 3
Pin E: Relay 4
Pin F: Ground
Note: If an external device is not connected, keep the dust cap on
the connector to protect the pins.
94
