Honeywell FMC2000 - Dry Contact Operation; 28 Appendix C: Connecting RS485 (Modbus)

FMC2000 User’s Guide
27.3.2 Dry Contact Operation

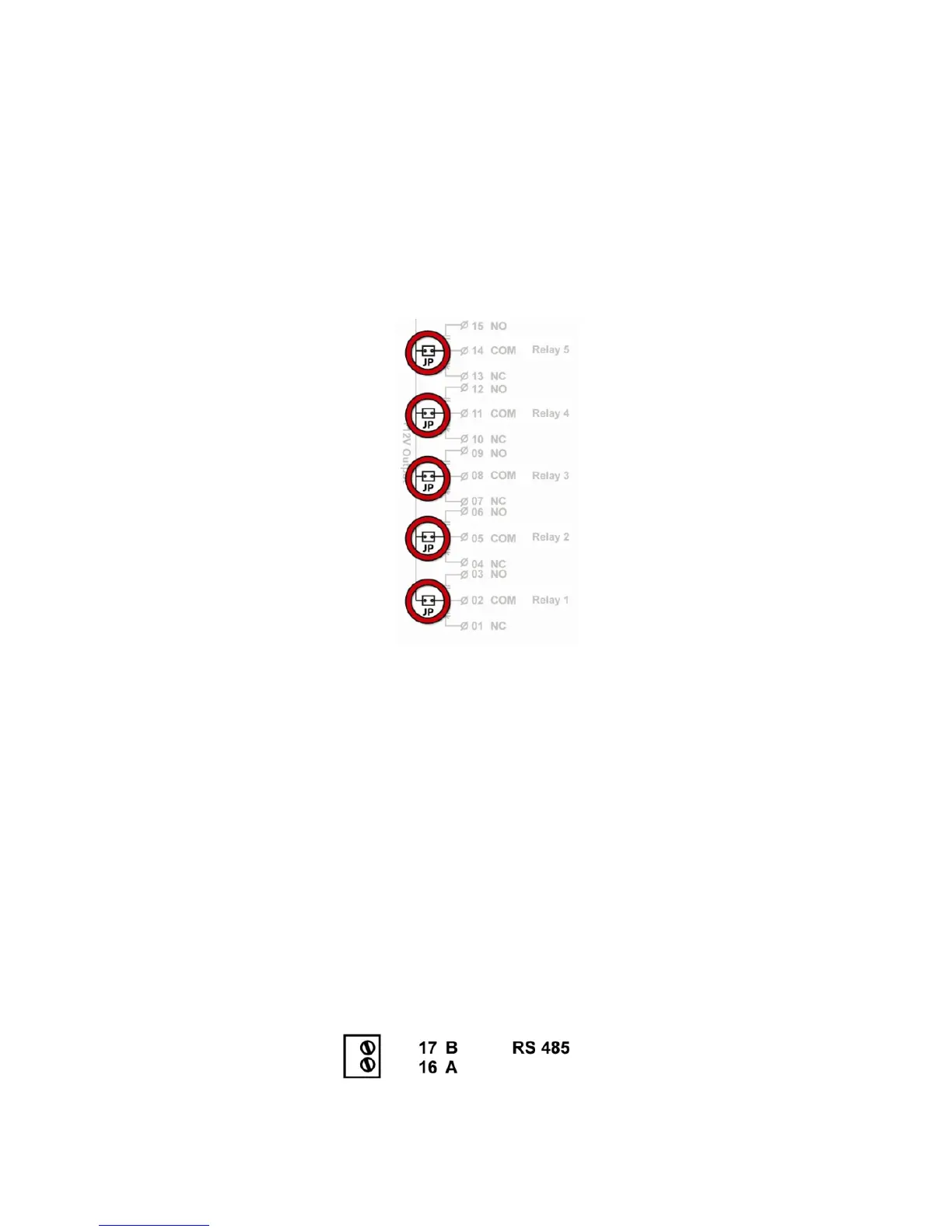

The five relays are pre-configured as powered contacts, with
10VDC. Any or all of the relays can have power removed for
“dry-contact” operation. For dry-contact operation, remove the
jumpers (labeled “JP”) located adjacent to each connection block.
To remove a jumper, pull it straight up.
28 Appendix C: Connecting RS485
(Modbus)
Follow standard Modbus procedures when connecting the
FMC2000 via RS-485. Wires should be connected to points 16
and 17.
Note: Configuration must be done in the menus of the FMC2000
for proper operation.
