To mount the cabinet, proceed as follows:
1. Find a place for the cabinet on a sturdy wall in a clean, dry area that is not
readily accessible to the generalpublic.
2. Remove the cabinet door by disconnecting the earth lead andsliding the
door off its hinges.
3. Remove the metal knockouts for the wiring entries that you will be using.
For an overview of the available wiring entries and their sizes, see Cabinet
Parts on page27.
Caution!
If you are using cable glands or blanking plugs, make sure they
match the knockout/conduit size to provide accurate (cable)
protection. If using non-metal materials, make sure they
comply with UL94 V-0.

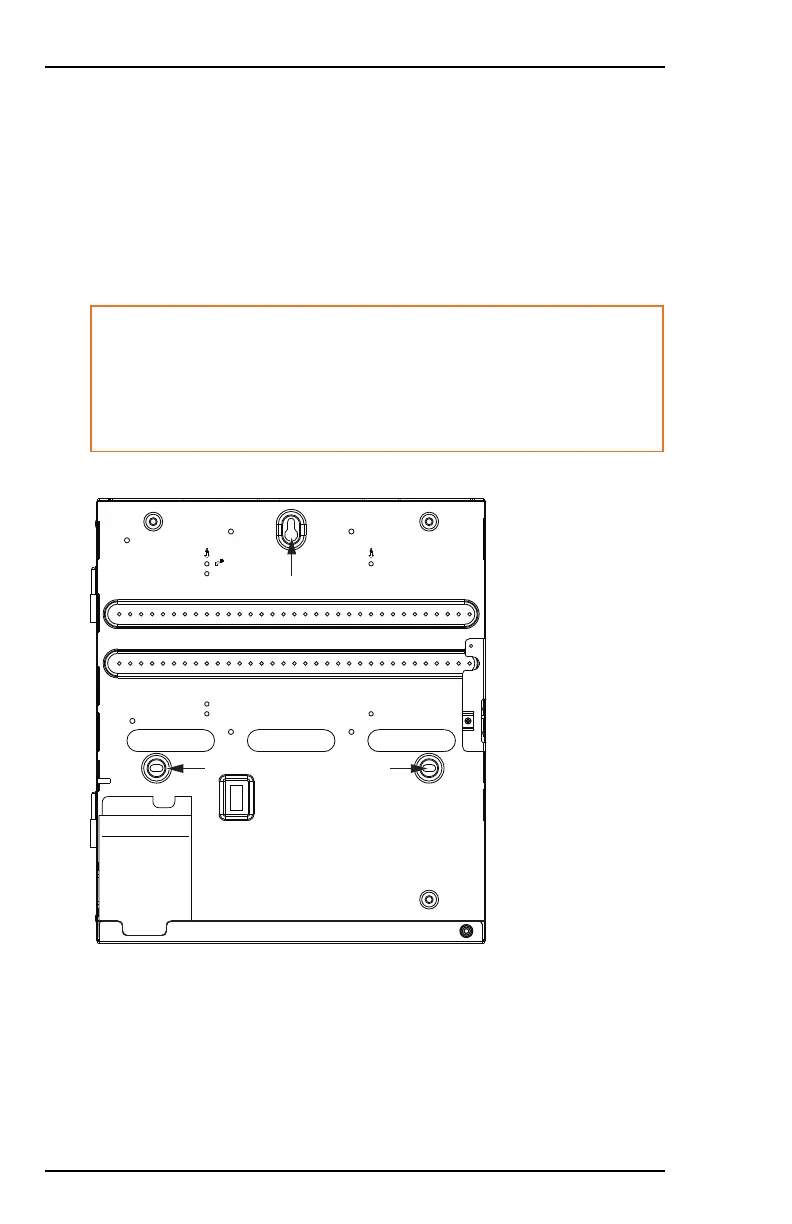

4. On the wall, mark the positions of the 3mounting screw holes (A).
5. Drill holes for the mounting screws of the cabinet.
6. Using three screws (not supplied), mount the cabinet to the wall.
7. After completing the installation, slide the cabinet door back on its hinges,
andreconnect the earth lead.
30 800-23044 Rev. A draft_11
Installation and Setup Guide Honeywell MAXPRO Intrusion MPIP2000U/3000U Series
