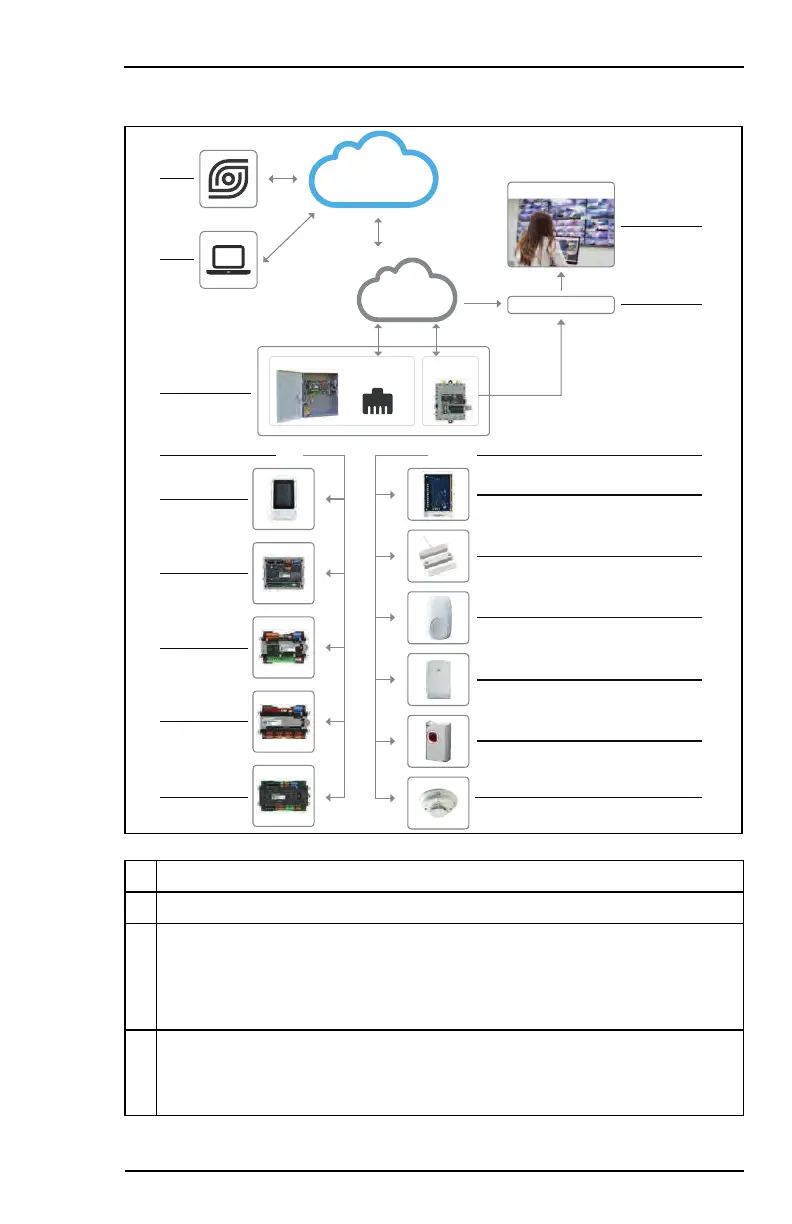

2.3 General Architecture
MAXPRO Cloud
MAXPRO Receiver
Central Monitoring Station
Ethernet
4G/LTE
Internet
V-PlexIB2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
A MAXPROCloud mobile app
B MAXPRO Cloud web app
C MAXPRO Intrusion Control Panel in cabinet with built-in Ethernet and
optional 4G/LTE module.
IB2 modules can be stacked in the cabinet for saving space and quick
connectivity. For details, see About the Cabinet on page25.
D IB2 bus with IB2 devices.
The system guarantees performance of up to 46IB2 devices per IB2 bus.
The MPIP3000 series supports two IB2 buses.
