Honeywell MAXPRO Intrusion MPIP2000U/3000U Series Installation and Setup Guide
800-23044 Rev. A draft_11 31
3.2.4 Mercantile Premises Listing Guidelines
For compliance with the Mercantile Premises Listing, use the following
guidelines:
l The panel door must be supervised. Use the supplied door tamper switch
andconnect it to the T-LID terminal on the control panel.
l Use a bell with a tamper-protected housing such as the AB12M Bell/Box.
The bell housing's tamper switch and inner tamper linings must be wired to
the hardwire zones on the control panel.
l Assign the tamper’s hardwire zone to a burglary area. Program the
hardwire zone as Trouble by Day/Alarm by Night if only one burglary area is
used. Program it as 24-Hour Audible Burglary if more than one burglary
area is used.
l All wiring between the bell and panel must be run in conduit. Remaining
wires do notneed to be run in conduit.
l All wiring that is not run in conduit must exit from the knockout openings on
the bottom or back of the cabinet.
l All unused knockouts must be plugged using discplugs (washers) and
carriage bolts. To plug an unused knockout opening, remove the knockout
andinstall a pair of disc plugs and a carriage bolt as indicated in the diagram
below.

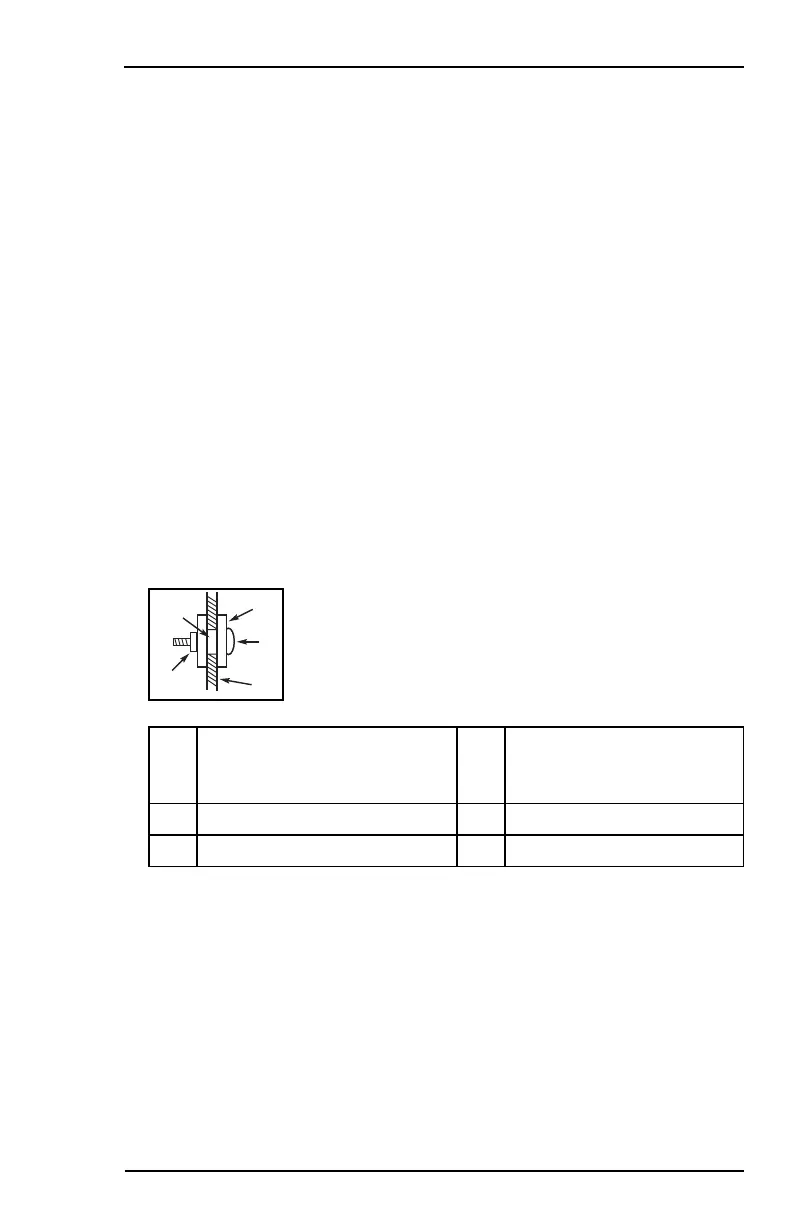

A Disc plugs (dimples in disc
plugs must register inside the
knockout opening)
D Hex nut and washer
B Carriage bolt E Knockout opening
C Cabinet wall (outside)
To Next Page
