Honeywell MAXPRO Intrusion MPIP2000U/3000U Series Installation and Setup Guide
800-23044 Rev. A draft_11 71

Note
The Door ControlModule is only suitable for mounting in a cabinet
with an MPI Remote Power Supply, not with an MPI Control Panel.

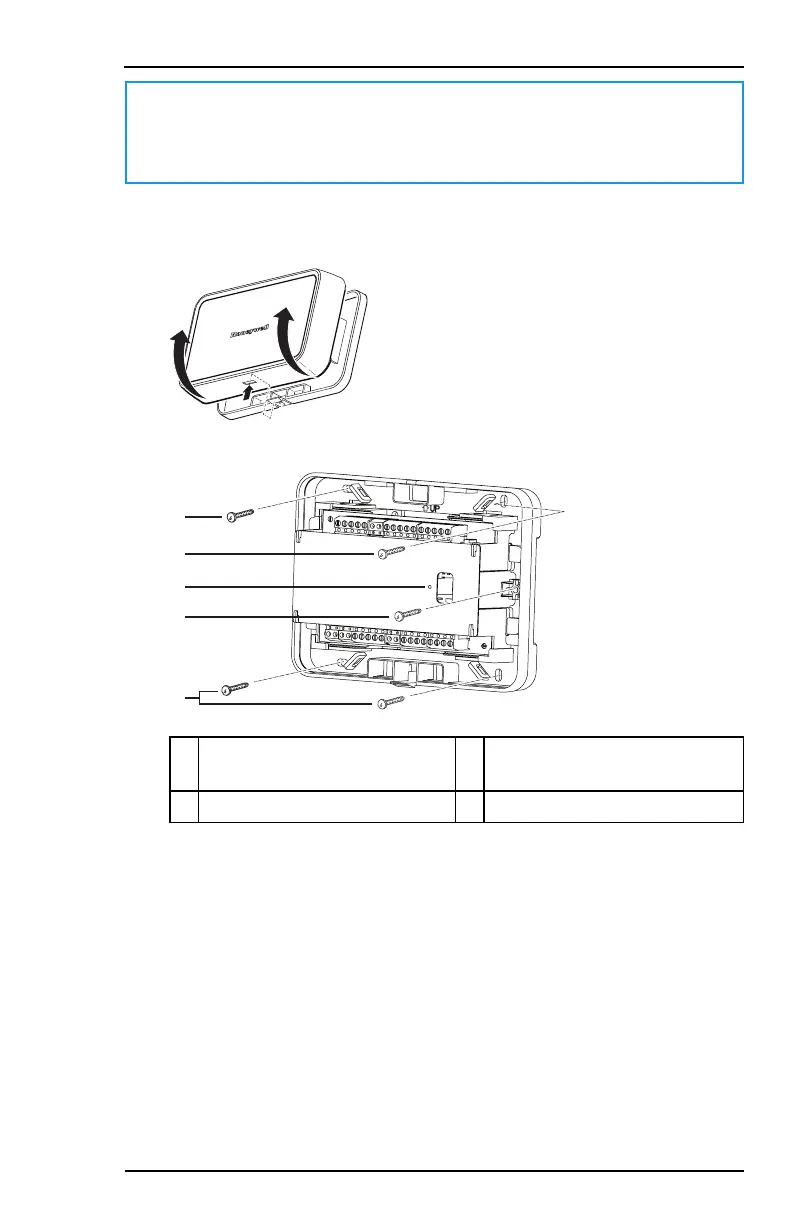

To mount the device on the wall in its own enclosure, proceed as follows:
1. Press the tab at the bottom of the lid andremove the lid.
2. Fix the device to the wall using the 4large screws(A).
A
A
C
B
A
A Mounting screw (x4) C Tamper screw (x1). Required
for off-wall tamper protection.
B LEDindicator
3. Screw the tamper screw(C) into the wall. This screw provides off-wall
tamper protection.
4. For wiring, see Summary of Connections on page72.
5. Use cable ties to bundle and fix wiring. The PCB holder has various
attachments point for this purpose.
6. Click the lid back in place and fix it using the small lid screw(D).
