4.2. Overview of FDC homepage
30 MC Toolkit (MCT404) User Manual Revision 3
Table 4 describes the UI elements that appear on all FDC pages.
Table 4 Generic UI elements
Items
Description
Title bar – Displays the current page title.
Page icon – Displays current page icon
Icon 1
Icon 2
Exit button – Tap to quit the current page.
Workspace – Consists of various menu items for working with
FDC.
Menu bar – Consists of options for navigation and selection.
4.2 Overview of FDC homepage
The FDC homepage consists of links for Online Configuration, Offline Configuration, Manage DDs, and
Settings. Figure 4-2 shows the FDC homepage.

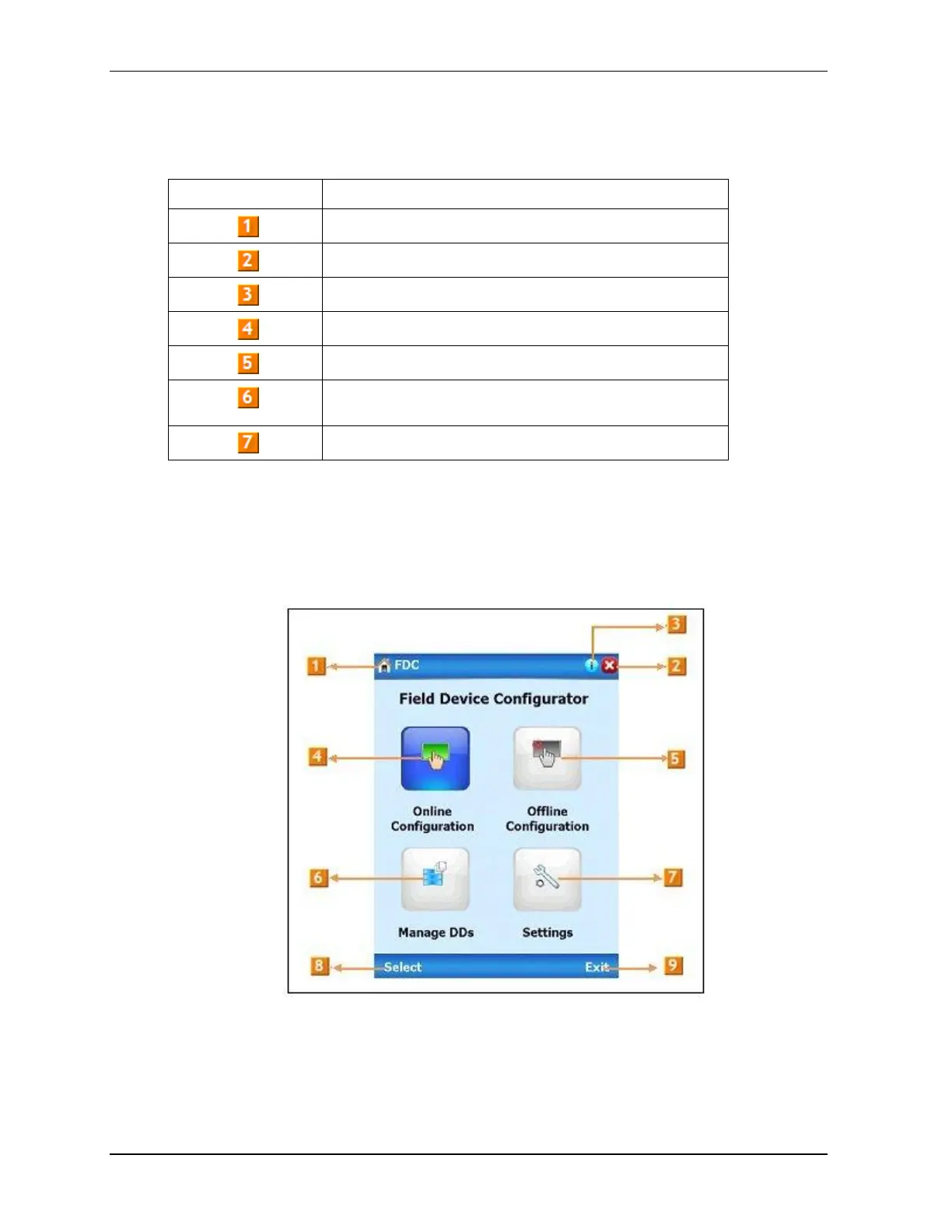

Figure 4-2 FDC homepage
