4.6. Online configuration
48 MC Toolkit (MCT404) User Manual Revision 3

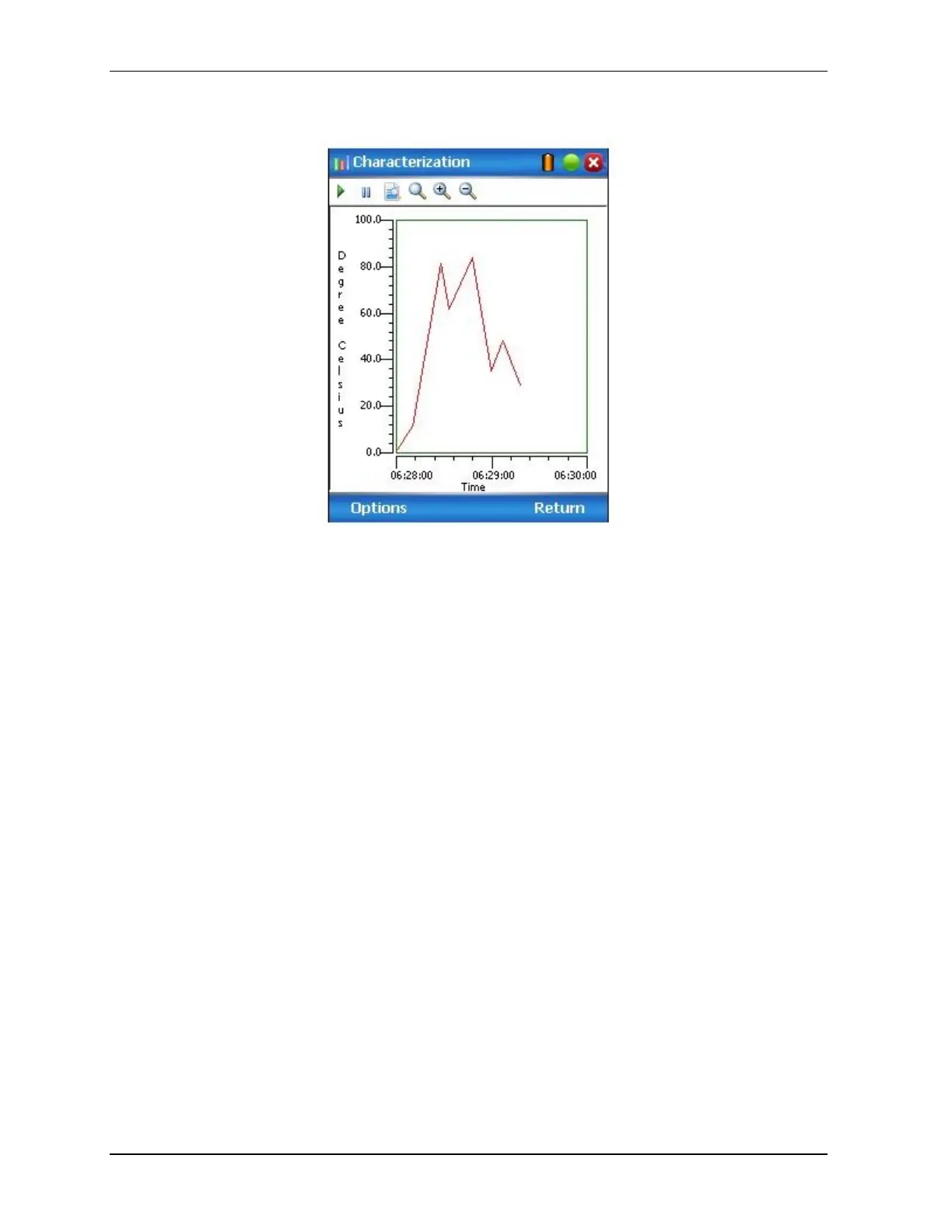

The graph screen appears.
6. Tap Options > Select Waveform.
The Select Waveform dialog box appears.
7. Select the required waveform and tap OK to view the graph of the selected waveform.
8. Tap Options > View Legends.
The View Legends dialog box appears with the legends.
9. Tap Close to close the View Legends dialog box.
10. Tap Options > Edit Waveform.
The Edit Waveform dialog box appears. This lists the x, y pairs for the waveform. The non-editable
values are shown in grey.
11. Select the required value and tap Edit.
The Edit Variable dialog box appears.
12. Edit the value and tap OK to return to Edit Waveform dialog box.
Note: The edited value is highlighted in yellow color.
13. Tap Return to return to the graph page. The waveform is now updated with the edited value.
14. Tap Return to close the graph page and return to the menu navigation view.
