PAGINA - 14 Installation and programming manual AM-1224
NOTIFIER ITALIA Doc. M-124.1-AM1224-ENG Rev A.1 AM-1224_manu
USER INTERFACE DESCRIPTION
Functions List
Functions EN.54 Level Manufactured Default Password
Visualization of alarms and troubles Level 1 none
Identification of alarms and troubles Level 1 none
Reset of delay (dedicated push-button) Level 1 none
Visualization of excluded zones/points Level 1 none
Exclusion menù Level 2 22222
Test menù Level 2 22222
Utility menù Level 3 33333
Programming menù Level 4 44444 + internal Jumper (see note)
Note. The entry in the non-volatile memory is subject to the position of the jumper J1 (hardware key) on the
back of the display.
Keyboard operation for the data input in the programming file:
Arrows 4 allow to move to the next folder (screen).
Arrows allow to move into the folder (the selected field appears in REVERSE mode)
If the file provides for an index, we have the first two function buttons allowing browse.
The selected field can be changed entering in editing mode with return key
.
According to the type of data we have different editing:
- Text strings (CBE, text description for lines or zone): 4 new functioning key are displayed
(F1 capital/small selection, F2 letters/numbers/symbols selection,
F3 insertion, F4 delete)
with the keys it is possible to select the type for the current position,
with the keys 4 it is possible to move inside the string.
To insert number use numeric keypad
- Labels (YES, NO, ecc..): with it is possible to see sequentially all the selectable labels.
- Numeric input fields: simultaneous editing of two numeric fields not editable to single digit
To store the data presse the enter key to discard the data press the escape key
To escape from folder configuration, press the escape

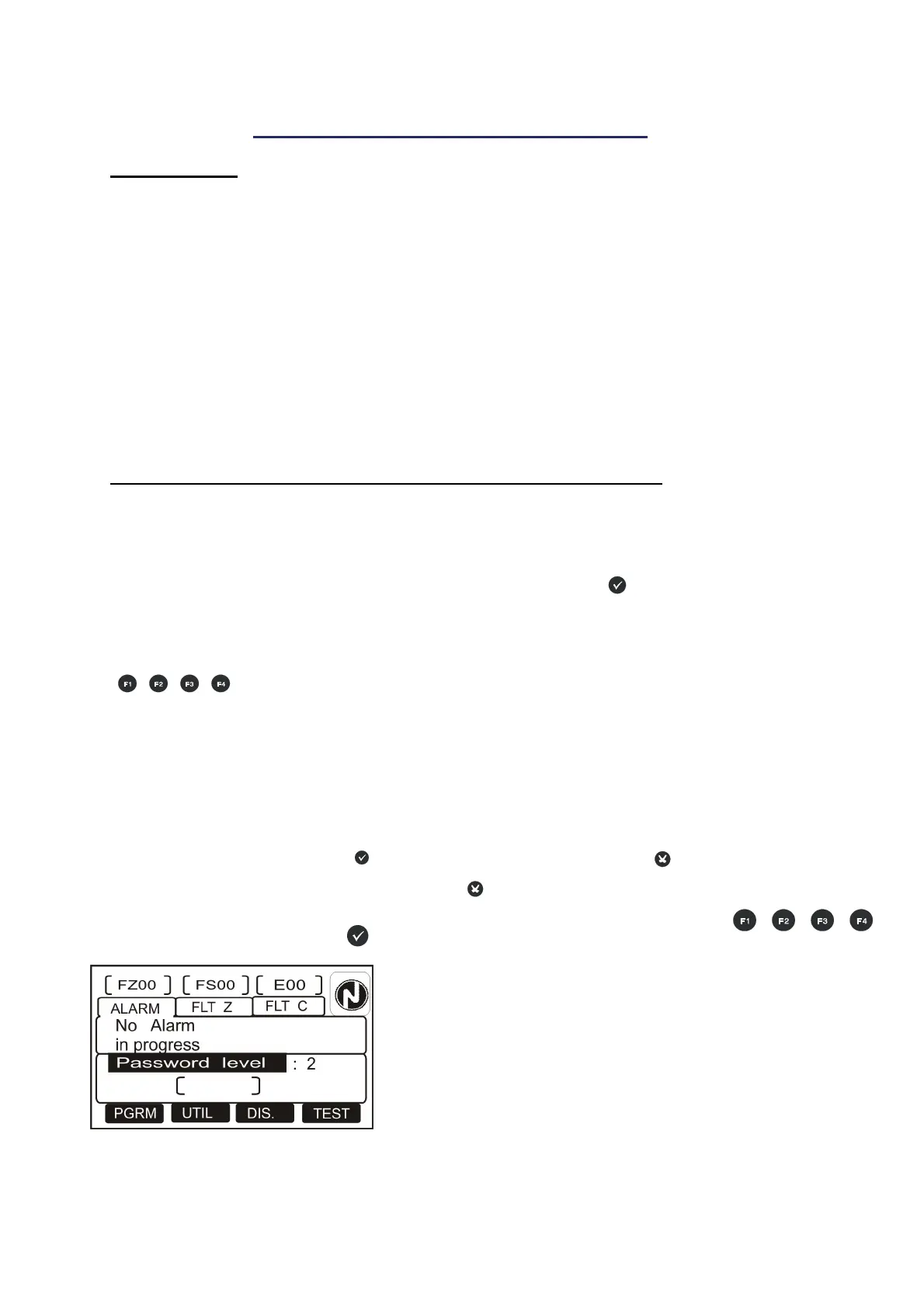

To insert the passwords, when requested, select the necessary digit using the function keys
and confirming each letter with enter
When a wrong password it is typed the system display the following
message:
“WRONG PASSWORD : xxxxx “ where “xxxxx” is a 5 character
code.
It is possible to communicate this code to the authorized technical
assistance and recover the original password.
