Honeywell Notifier AM12-24 - Description; Main features

PAGINA - 2 Installation and programming manual AM-1224
NOTIFIER ITALIA Doc. M-124.1-AM1224-ENG Rev A.1 AM-1224_manu
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n

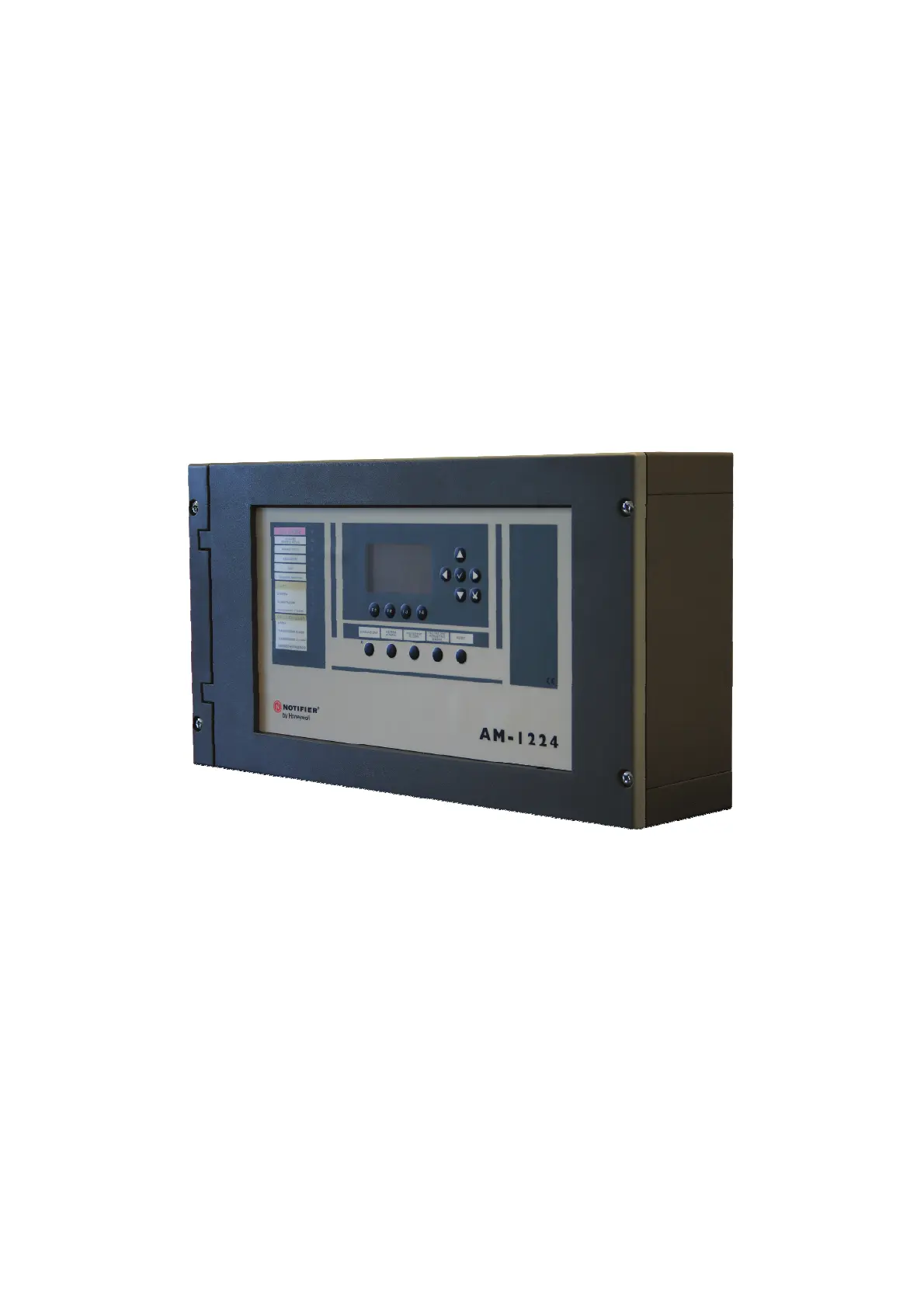

AM1224 is a zone fire detection panel designed to comply the EN54.2 and EN54.4 European rules.
The panel in the standard configuration have 12 detection lines ( zones) that can be expanded to 24 using an
option card.
In addition a second option card is available to provide 8 relays outputs and 8 Open Collector outputs.
Each output can be activated by use of the Control by Event programming .
The front panel user interface have a backlite LCD graphic display of 8 lines by 20 columns (128 x 64 pixel in
graphic mode)
The Am1224 panel give the user the possibility to install a conventional low cost fire detection system with
similar complexity as some advanced intelligent addressable systems.
The panel is compatible with all conventional field devices available by Notifier Italia
M
M
a
a
i
i
n
n
f
f
e
e
a
a
t
t
u
u
r
r
e
e
s
s
 User interface Software in one language (Italian as default) replaceable by PC
 12 detection conventional lines expandable up to 24 with one option card
 Up to 25 conventional detectors per line.
 Optional 8 relay + 8 OC transistor outputs card
 On board general Alarm and general Fault relay outputs., plus one Sounder supervised output.
 4 digital programmable inputs
 Internal History log for 500 events in non volatile memory
 3 password level as per EN54.2 (operator, maintenance and programming )
 Up to 16 characters programmable text description for zones , outputs and installation name
 Up to 600 seconds programmable delay and activations timers.
 Silence sounders inhibit timer ( up to 255 seconds )
 Control by Event outputs programming with logic operators. (And, Or, Del, etc.)
 Real time clock display
 Keyboard with additional functions keys for simple operations.
 Optional download-upload software PC compatible to configure the system
