 Stand-by condition

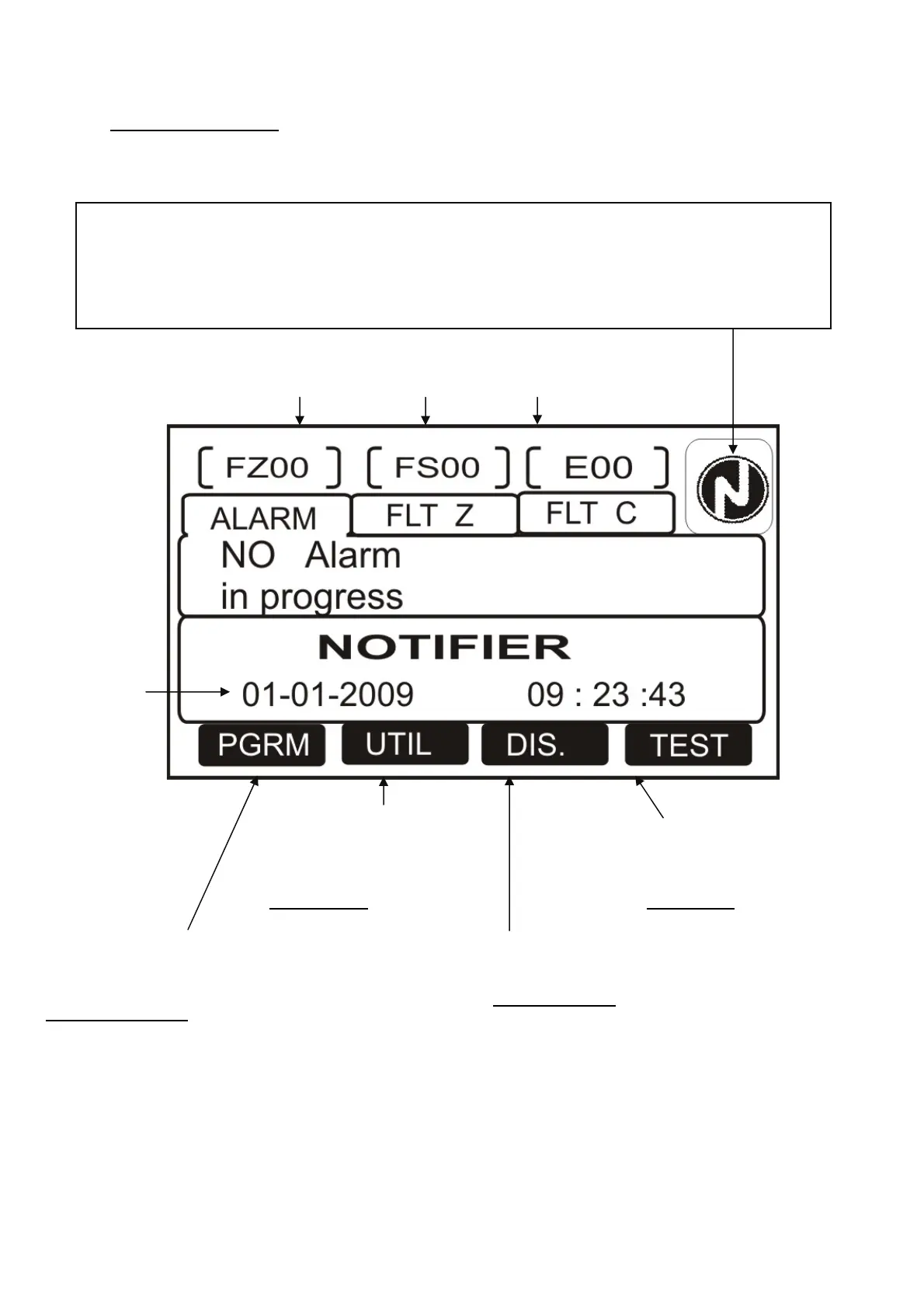

The following screen is visualized when the control panel is in stand-by condition.
Zone Fault
Counte
r
System Faults
Counte
r
Zone excluded
Counte
r
Function associated to the key F1.
In this case the pressure of the Key F1 allow the
entry in the programming menù.
See paragraph description of the operation of
the keyboard for data entry.
See programming menù
Function associated to the key F2.
In this case the pressure of the Key
F2 allow the entry in the Utility
menù. See paragraph description of
the operation of the keyboard for
data entry.
See utility menù.
Function associated to the key F3. In this case
the pressure of the Key F3 allow the entry in the
Exclusion menù. See paragraph description of
the operation of the keyboard for data entry.
See exclusion menù.
Function associated to the key F4. In this
case the pressure of the Key F4 allow the
entry in the Test menù. See paragraph
description of the operation of the keyboard
for data entry.
See test menù.
Date - Hour
Icon for the indication of the control panel status. Without alarm and troubles the NOTIFIER logo is visualized.
With Disabled points/zone an exclamation marks report them(!).
With Alarms the symbol of a Flame is visualized and the backlit of display become red.
With Troubles the symbol of a Triangle is visualized .
Note: The alarm status override any other indication .
