PAGINA - 26 Installation and programming manual AM-1224
NOTIFIER ITALIA Doc. M-124.1-AM1224-ENG Rev A.1 AM-1224_manu
Zone
The zones are clusters of lines. Serve as starting points to identify the location of an event.
A zone may contain max 32 devices.
Zones can be 24 max.
Each zone can be associated with 5 detection lines.
.
Up/Download: This feature allows you to program and save the configuration data of AM-1224 control
panel through PK-1224 software.
By selecting this function, the control panel display displays the following text:
“Waiting PC”
It warns the user that the control panel AM12-24 is prepared for functionality Up/Download.
When the upload and download of data from PC has been completed the control panel displays the following
message:
“Transfer complete”.
To extit from Up/Download function use escape key .
Clear configurations : Selecting this function the display will show as follow:
To erase all data stored in the non volatile memory system user must press enter key to confirm the
command “Clear configurations”.

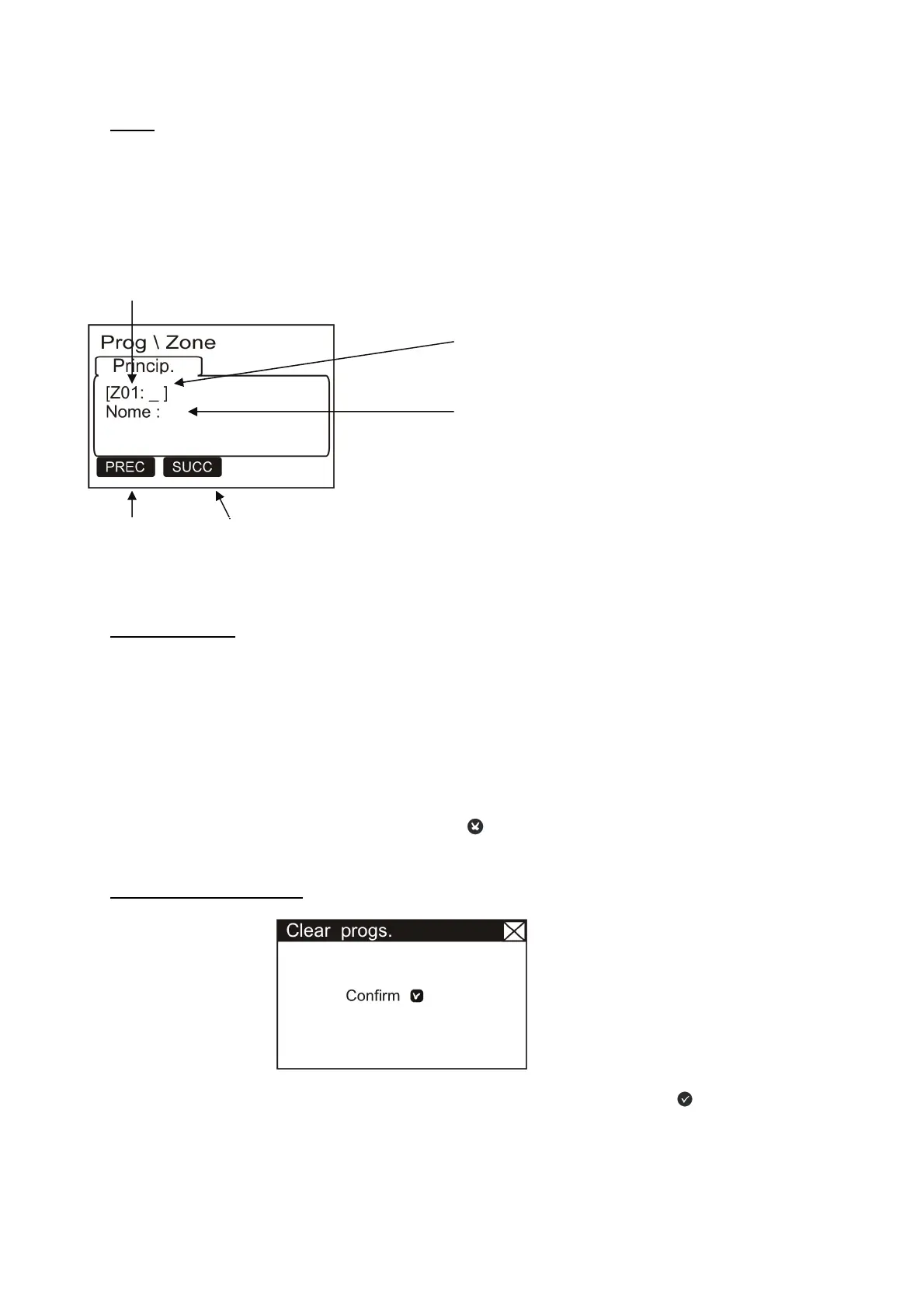

_ = Zone not associated to detection line
P = Zone associated to detection line.
You have this condition when at least one detector line is
associated with an area
Zone numbe
Programmable label associated to zone max. 16
characters
Press F1 to
configure
previous zone
Press F2 to
configure
next zone
