Through the sounder output, the control panel may drive a 24 Vdc sounder.
The panel checks permanently the control line integrity (against Cut and Short-circuit). For this function the
sounder shall have an end-of-line resistance.
The output is protected by a 1 A fuse.
M
M
a
a
i
i
n
n
B
B
o
o
a
a
r
r
d
d

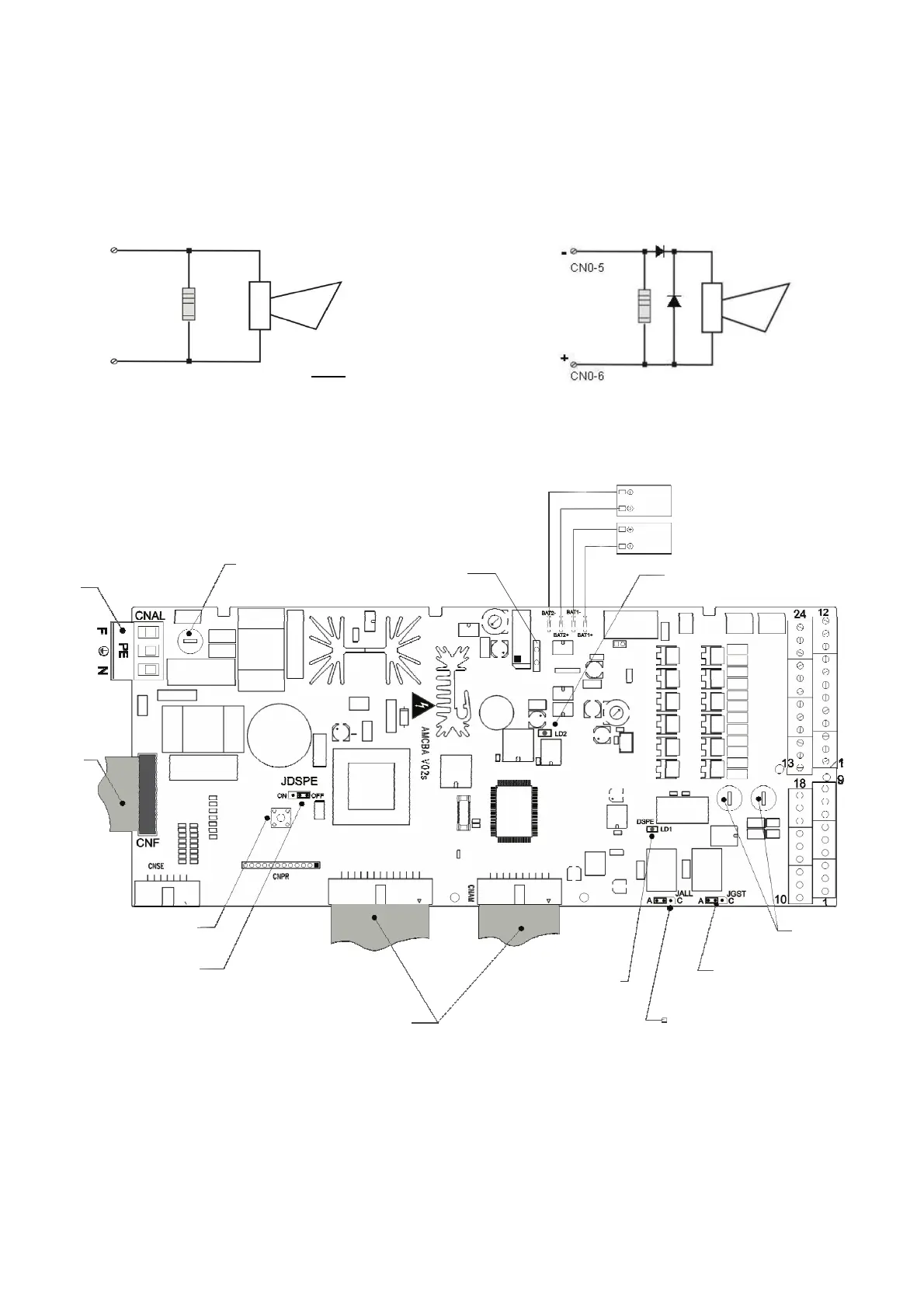

Note:
The polarity shown on CN0-5 and
CN0-6 aren’t in alarm condition
CN0-6
CN0-5
+
-
-
+
47K
Polarized
sounder
Not polarized
sounder
47K
Mains
Terminal
block
F1AL 230V
fuse
Resettable
fuse MFR250
Power ON
LED
Battery
2x12V
CN
Terminal
block
CN
Terminal
block
Front
panel
board
terminal
block
Panel reset
button
JDSP:
Groun fault detection Jumper
Default: ON
Expansion board
terminal block
Ground
fault LED
JALL: selection Jumper alarm
relay contact
Default: N.O.
JGST: selection Jumper
fault relay contact
Default: N.O.
F1AL 230V
fuse
