AM-1224 Installation and programming manual PAGINA - 9
AM-1224_manu Doc. M-124.1-AM1224-ENG Rev A.1 NOTIFIER ITALIA
L
L
i
i
n
n
e
e
e
e
x
x
p
p
a
a
n
n
s
s
i
i
o
o
n
n
c
c
a
a
r
r
d
d
(
(
l
l
i
i
n
n
e
e
1
1
3
3
÷
÷
2
2
4
4
)
)

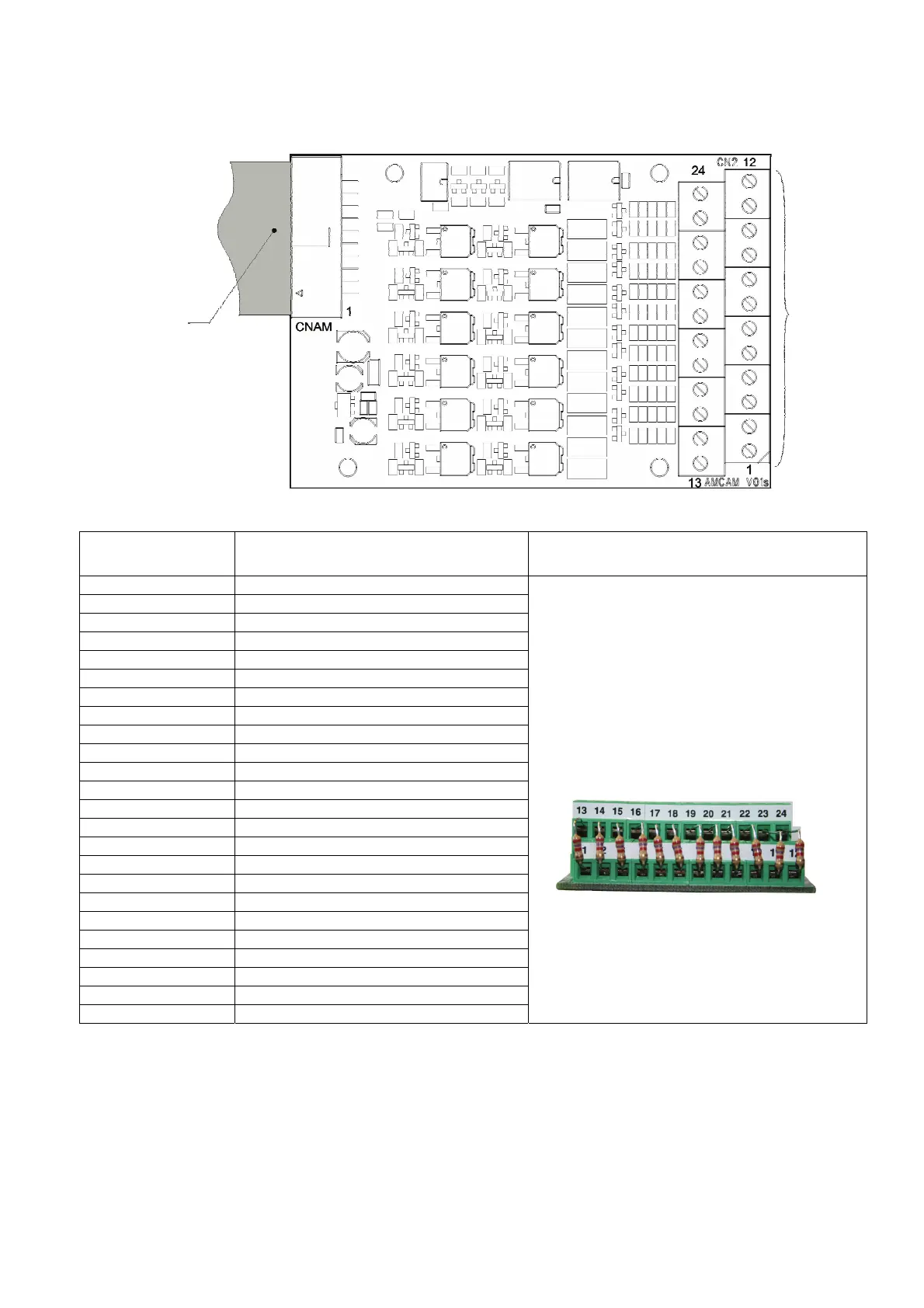

CN2 Terminal
Terminal #
CN2
Description Note
1 Line 13 - (GND)
2 Line 14 - (GND)
3 Line 15 - (GND)
4 Line 16- (GND)
5 Line 17 - (GND)
6 Line 18 - (GND)
7 Line 19 - (GND)
8 Line 20 - (GND)
9 Line 21 - (GND)
10 Line 22 - (GND)
11 Line 23 - (GND)
12 Line 24 - (GND)
13 Line 13 +
14 Line 14 +
15 Line 15 +
16 Line 16 +
17 Line 17 +
18 Line 18 +
19 Line 19 +
20 Line 20 +
21 Line 21 +
22 Line 22 +
23 Line 23 +
24 Line 24 +
End of Line resistor
2k7 ohm 5% 1/4W
CN2
terminal
block
Main board
terminal
block
connection
