FireWarden 100-2/E — P/N 52778:A 11/04/2005 171
NFPA Standard-Specific Requirements
NFPA 72 Remote Station Protective Signaling System
Notes:
1. Cut Jumper JP3 on the NFW2-100 main circuit board to supervise placement of the
4XTM module.
1. Refer to “4XTM Transmitter Module Installation” on page 34 for detailed information.
RS82 Remote Station Receiver UL listed.
Refer to Instruction Manual for Remote Station Receiver
Model RS82.
+ -
Polarity Shown is
Normal Standby
4XTM Transmitter Module
Cutting TBL Jumper allows the
reverse polarity circuit to open
with a system trouble condition
if no alarm condition exists.
Power-limited

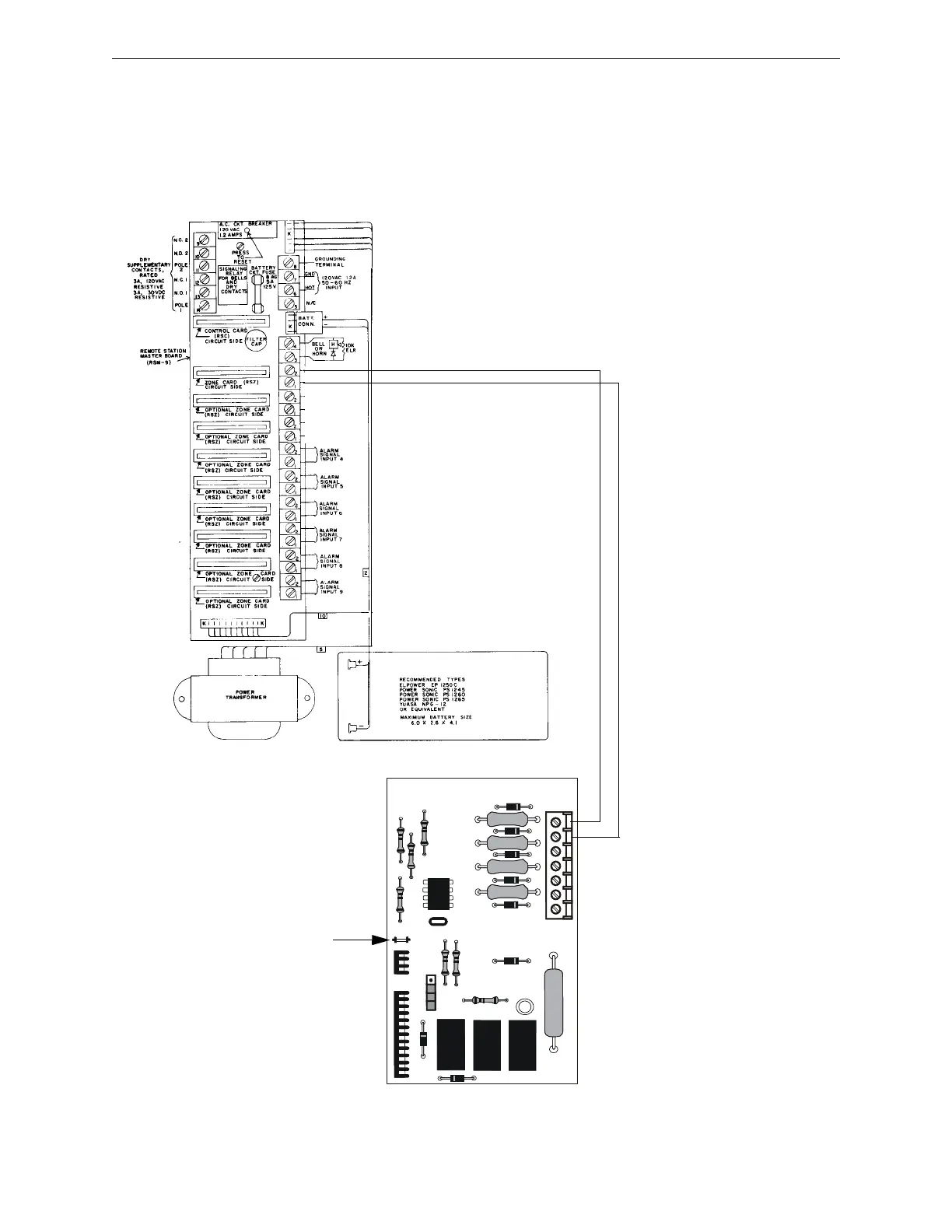

Figure C.2 Remote Station Connection Using 4XTM Module
+
-
(Dummy load with a 4.7K ohm, ¼ watt
resistor when no connection is made)
