NFPA Standard-Specific Requirements
NFPA 72 Proprietary Protective Signaling Systems

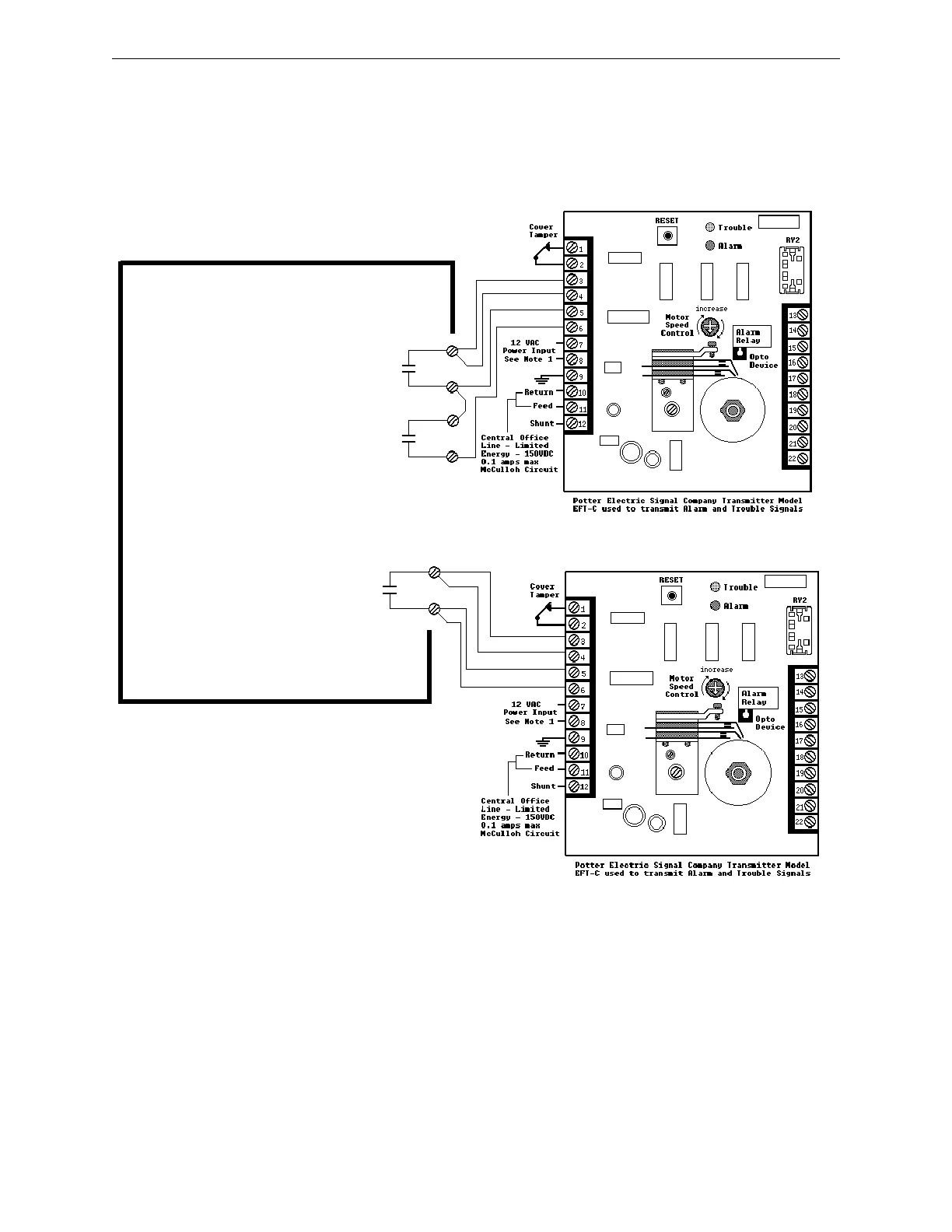

Figure C.3 Proprietary Protective Signaling System
Form-C relay contact programmed to
activate on Supervisory condition.
Form-C Trouble contact which will
automatically activate on any Trouble
condition.
Form-C Alarm contact programmed to
activate on General Alarm.
NFW2-100 Main Board
NFW2-100 Addressable Fire Control Panel
Notes:
1. Connection between the NFW2-100 and
the transmitter are supervised by the
transmitter.
2. This NFW2-100/Transmitter arrangement
can be employed for NFPA 72 Proprietary
Protective Signaling System.
