Notifier SLC Wiring Manual — P/N 51253:U9 12/3/2021 29

NFPA Class A SLC SLC Circuits without Isolators

4.3 NFPA Class A SLC

NFPA Class A requirements can be met by using the diagram below.

Control Panel

SLC

Two-wire Addressable Detector

Addressable Module

SLC-style6.wmf

SLC Return

SLC Out

B+ B– A– A+

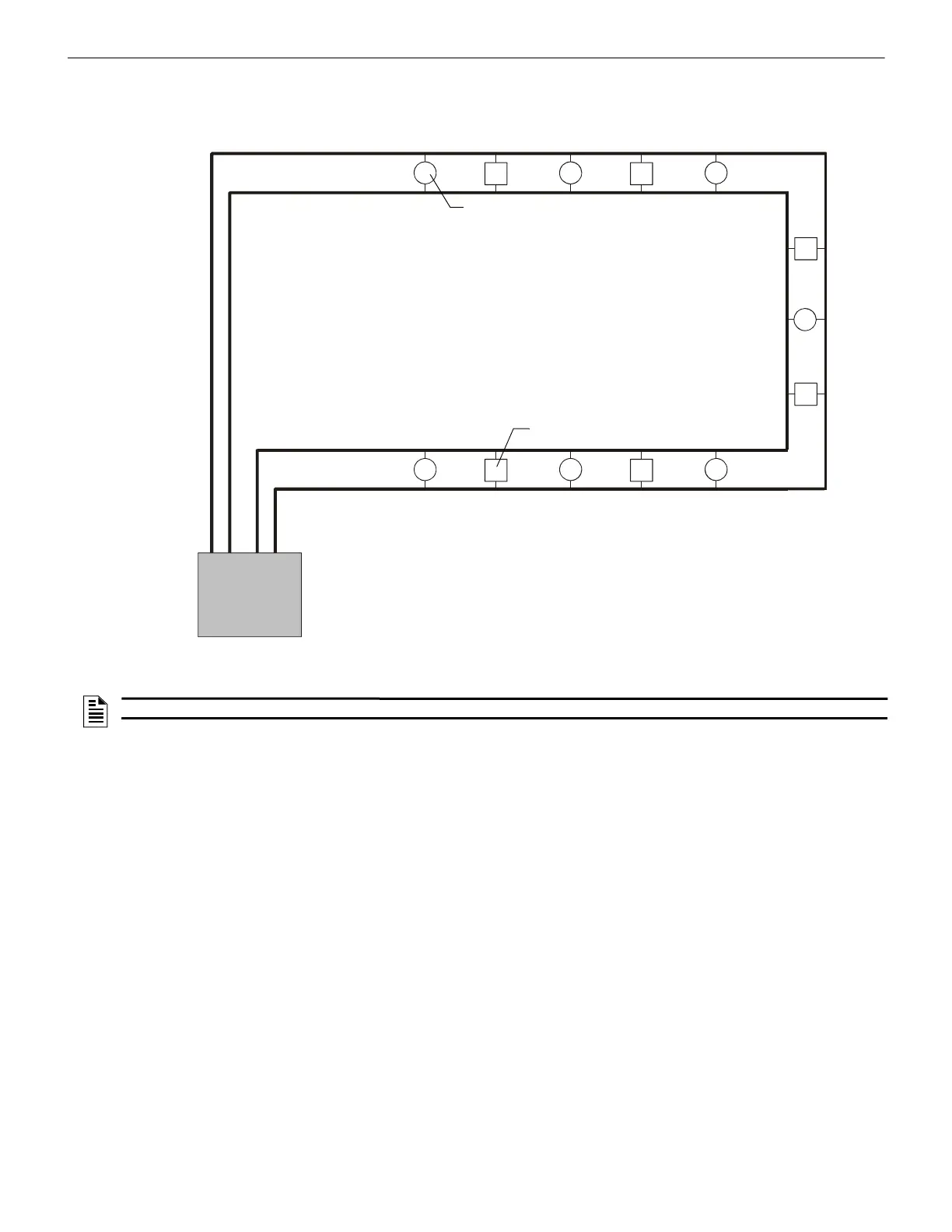

Figure 4.2 Basic NFPA Class A SLC

NOTE: T-tapping of the SLC wiring is NOT allowed for Class A configuration.
