Notifier SLC Wiring Manual — P/N 51253:U9 12/3/2021 41
NFPA Class B IDC Using Zone Interface Modules Monitor Modules
6.5 NFPA Class B IDC Using Zone Interface Modules
Connect the SLC wiring to the module terminals 1 (–) and 2 (+).
Each FZM-1 module takes one address on the SLC. Use the rotary switches on the module to set it to the required SLC address.
Figure 6.8 shows typical wiring for a supervised and power-limited NFPA Class B IDC using the FZM-1 module.
Module installation notes:
1. The Initiating Device Circuit (IDC) is supervised and current-limited to 210 microamps @ 24 VDC (nominal).
2. The IDC provides the following services (do not mix):
Fire alarm service
Automatic and manual waterflow alarm service with normally open contact devices
Sprinkler supervisory service with normally open contact devices
Security service
3. Refer to the Device Compatibility Document for compatible smoke detectors.
SLC-idcD1tpH.wmf
24 VDC
Four-wire
Detector Base
Heat
detector
SLC
FMM-1
IDC
24 VDC Power
Filtered, Regulated,
Resettable
Supervised (See
Appendix A)
From
Supply
To Next IDC
or
Supervision Device
Manual pull
station

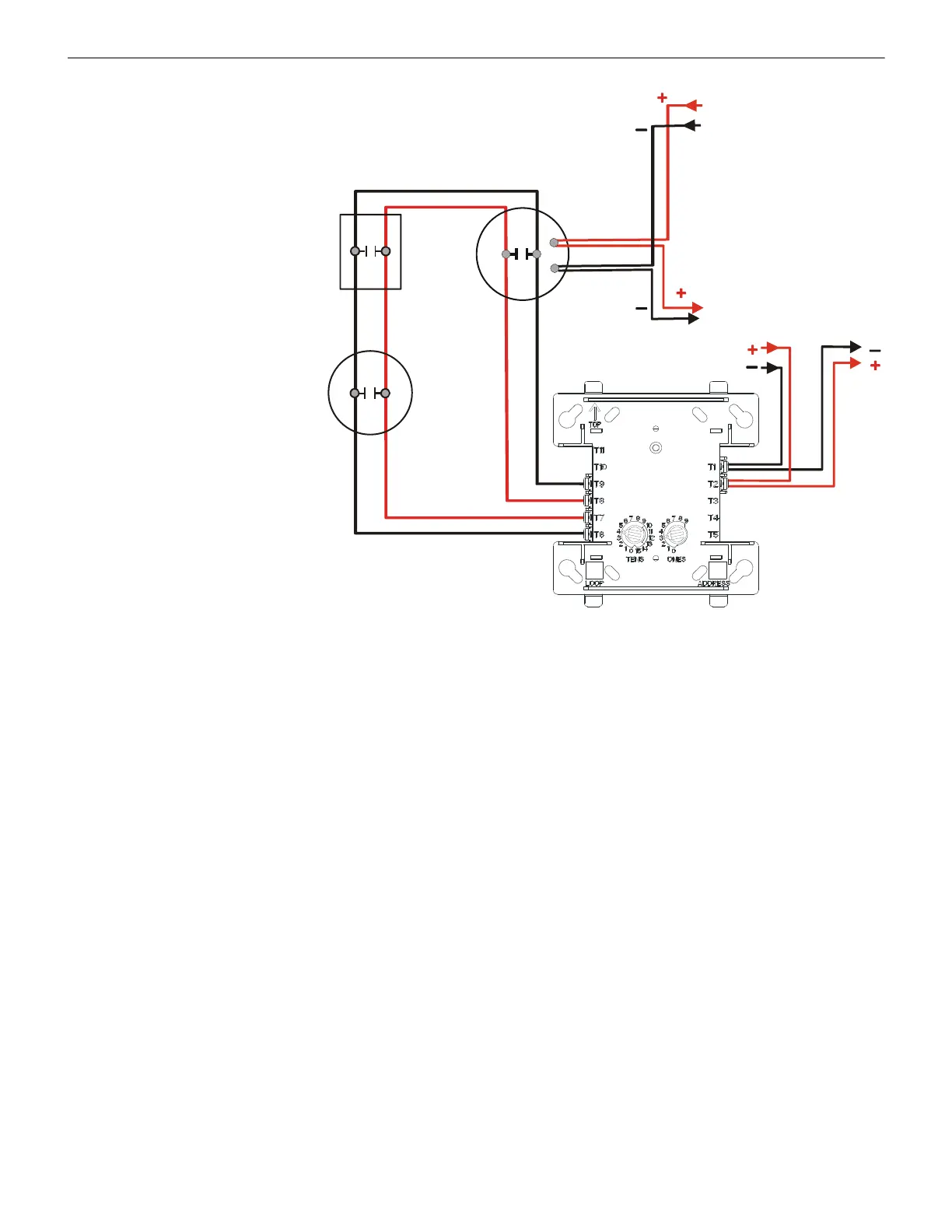

Figure 6.7 Typical Class A IDC Wiring with FMM-1
