42 Notifier SLC Wiring Manual — P/N 51253:U9 12/3/2021
Monitor Modules NFPA Class A IDC Using Zone Interface Modules
6.6 NFPA Class A IDC Using Zone Interface Modules
Connect the SLC wiring to the module terminals 1 (–) and 2 (+).
Each FZM-1 module takes one address on the SLC. Use the rotary switches on the module to set it to the required SLC address.

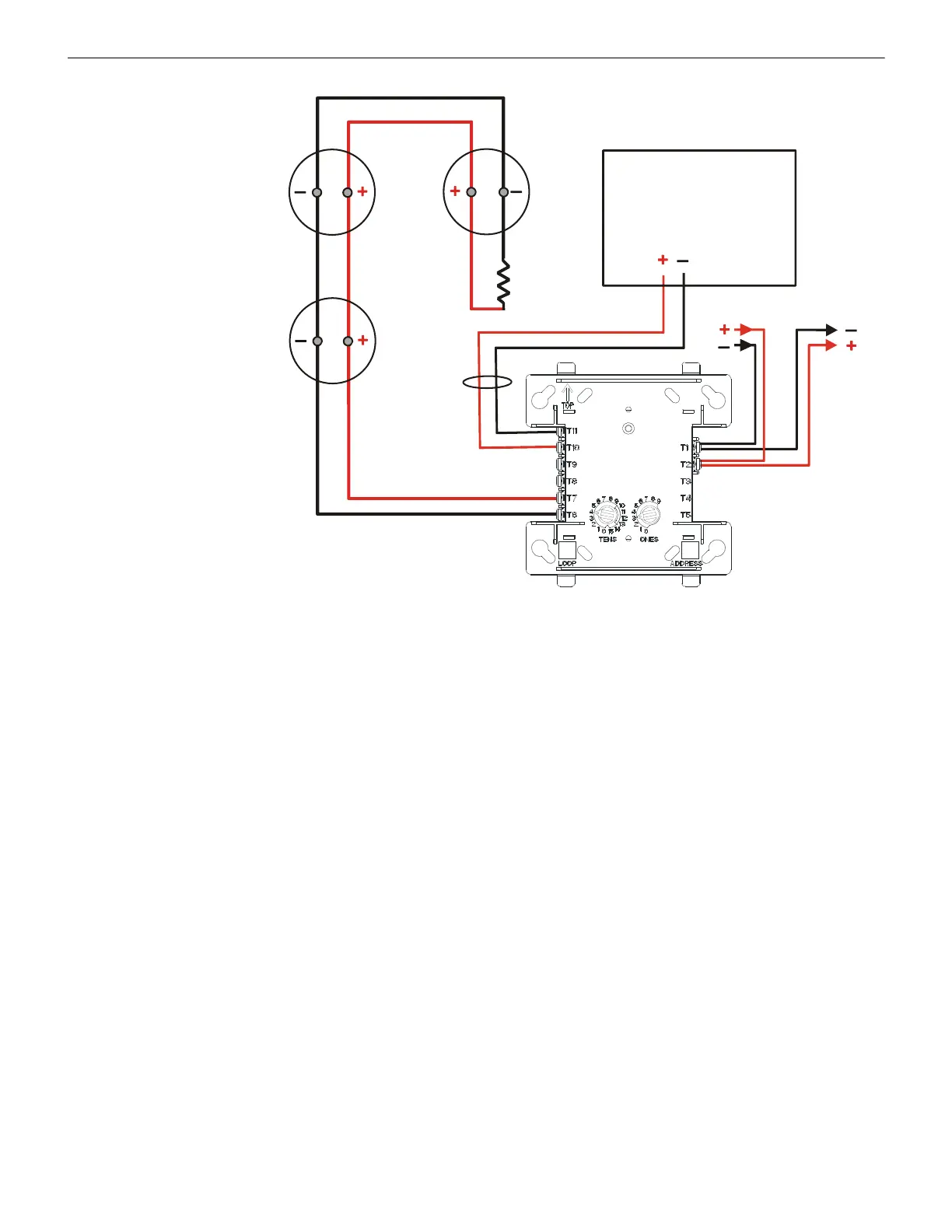

Figure 6.9 shows typical wiring for a supervised and power-limited NFPA Class A IDC using the FZM-1 module.
Module installation notes:
1. The Initiating Device Circuit (IDC) is supervised and current-limited to 210 microamps @ 24 VDC (nominal).
See Appendix A, “Power Considerations”, on page 66 for information on monitoring 24 VDC power.
2. The IDC provides the following services (do not mix):
• Fire alarm service
• Automatic and manual waterflow alarm service with normally open contact devices
• Sprinkler supervisory service with normally open contact devices
• Security service
3. Refer to the Device Compatibility Document for compatible smoke detectors.
SLC
IDC
SLC-idcB2tpH.wmf
FZM-1
Two-wire
smoke
detectors
3.9K ELR
(supplied with module)
24 VDC Resettable power.
90 mA External 24 volt supply required.
(Non-resettable power may be used for
N16, NFS-320, NFS-320SYS, NFS2-640/E,
NFS-640, NFS2-3030, or NFS-3030 when
operating in FlashScan mode.)
Figure 6.8 Typical Class B IDC Wiring with FZM-1
To Next Page
