38 Notifier SLC Wiring Manual — P/N 51253:U9 12/3/2021
Monitor Modules Setting an SLC Address for a Module
6.1.3 Miniature Monitor Module
The FMM-101 is intended to monitor a Class B IDC; it is offered in a smaller package for mounting directly in the electrical box of the
device being monitored.
6.1.4 FMM-4-20 4-20mA Monitor Module
The FMM-4-20 is intended for use in intelligent, two-wire systems, allowing Control Panels to interface and monitor two-wire or three-
wire sensors with a 4-20mA signal output. (For use with NFS2-3030 only.)
6.2 Setting an SLC Address for a Module
FlashScan capable control or relay modules, as well as detectors, can be set to one of 159 addresses (01-159) and are factory preset with
an address of “00”. CLIP mode detectors and panels are limited to addresses 01-99.
FMM-101.cdr
Label – Use to record the
device address and SLC
number.
Rotary
Switches
IDC (+) Violet
SLC (+) Red
IDC (-) Yellow
SLC (-) Black

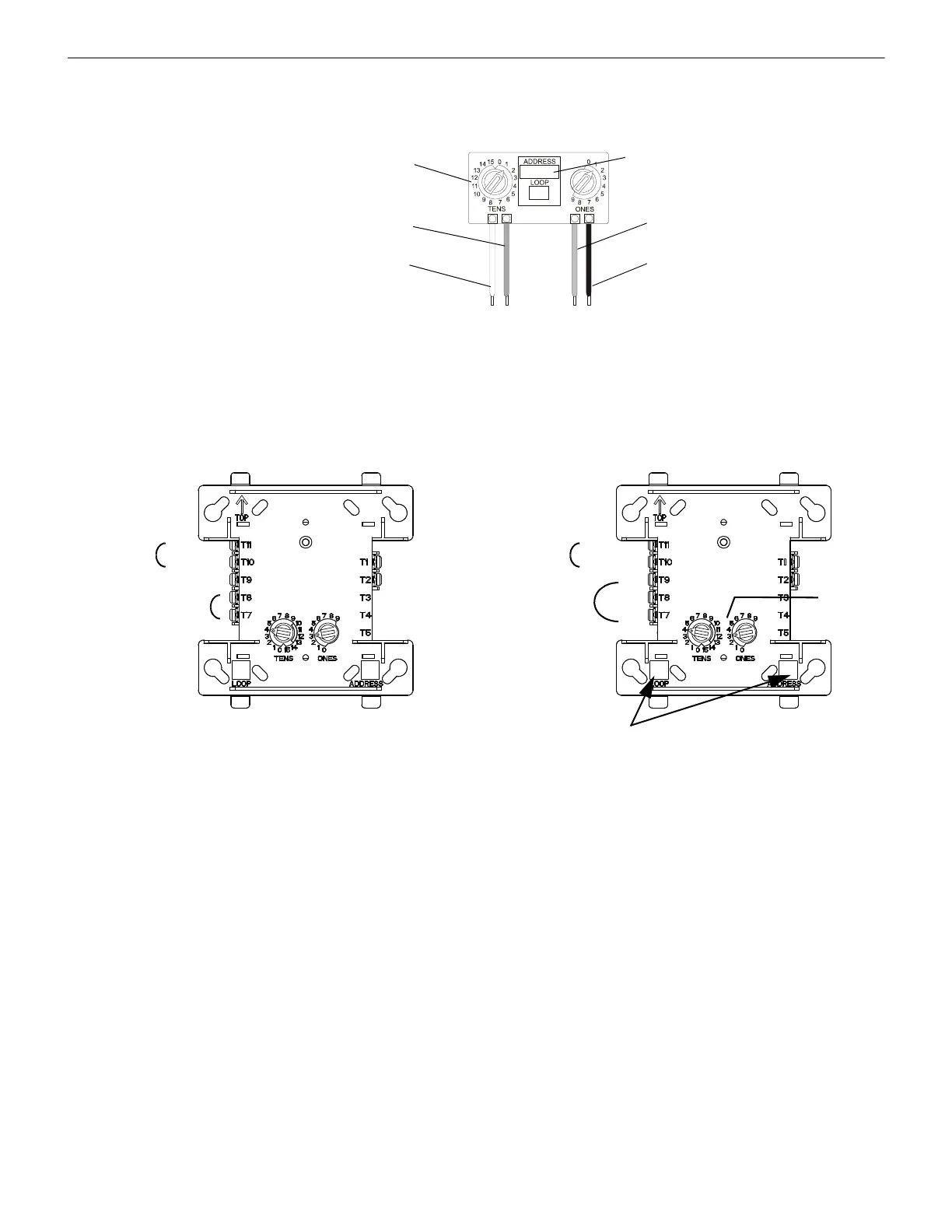

Figure 6.3 FMM-101 Mini Monitor Module
SLC (-)
SLC (+)
24 VDC (-)
24 VDC (+)
To 4-20mA 3-wire
Sensing Device
Rotary
Switches
Areas used to record the device
address and SLC number.
Non-Resettable
Figure 6.4 FMM-4-20 4-20mA Monitor Module
fmm-4-20.wmf
(-)
Sense
(+)
(-)
(+)
To 4-20mA 2-wire
Sensing Device
Two-wire Sensor Applications Three-wire Sensor Applications
SLC (-)
SLC (+)
24 VDC (-)
24 VDC (+)
Non-Resettable
