Honeywell NOTIFIER SLC User Manual

74 Notifier SLC Wiring Manual — P/N 51253:U9 12/3/2021

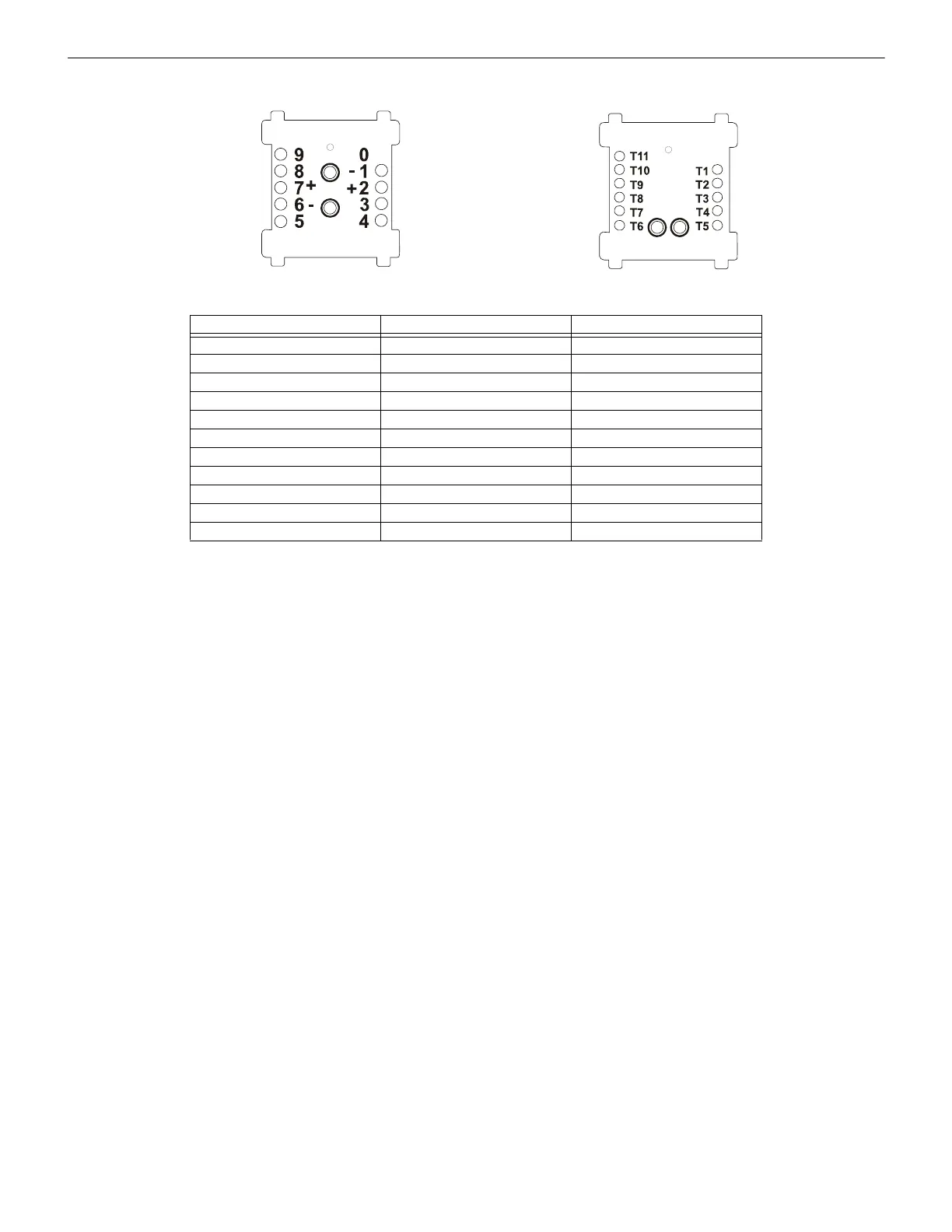

Terminal Conversion Charts for V-type and H-type Devices FDM-1
C.5 FDM-1
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3 Unused 3
4 Unused 4
5 Unused 5
6 Class A/B Supervision - 6
7 Class A/B Supervision + 7
8 Class A Supervision + 8
9 Class A Supervision - 9
N/A Unused 10
N/A Unused 11
Table C.5 FDM-1 Terminal Conversions
SLC -
SLC +
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
SLC -
SLC +
Type V
Type H
